Mini-Convectron Module Instruction Manual - 275513 55
Physical Characteristics
Mounting Position
Horizontal axis (see page 18)
Case Material
Powder-coated extruded aluminum
Weight
340 g (12 oz.) with 1/8 NPT fitting

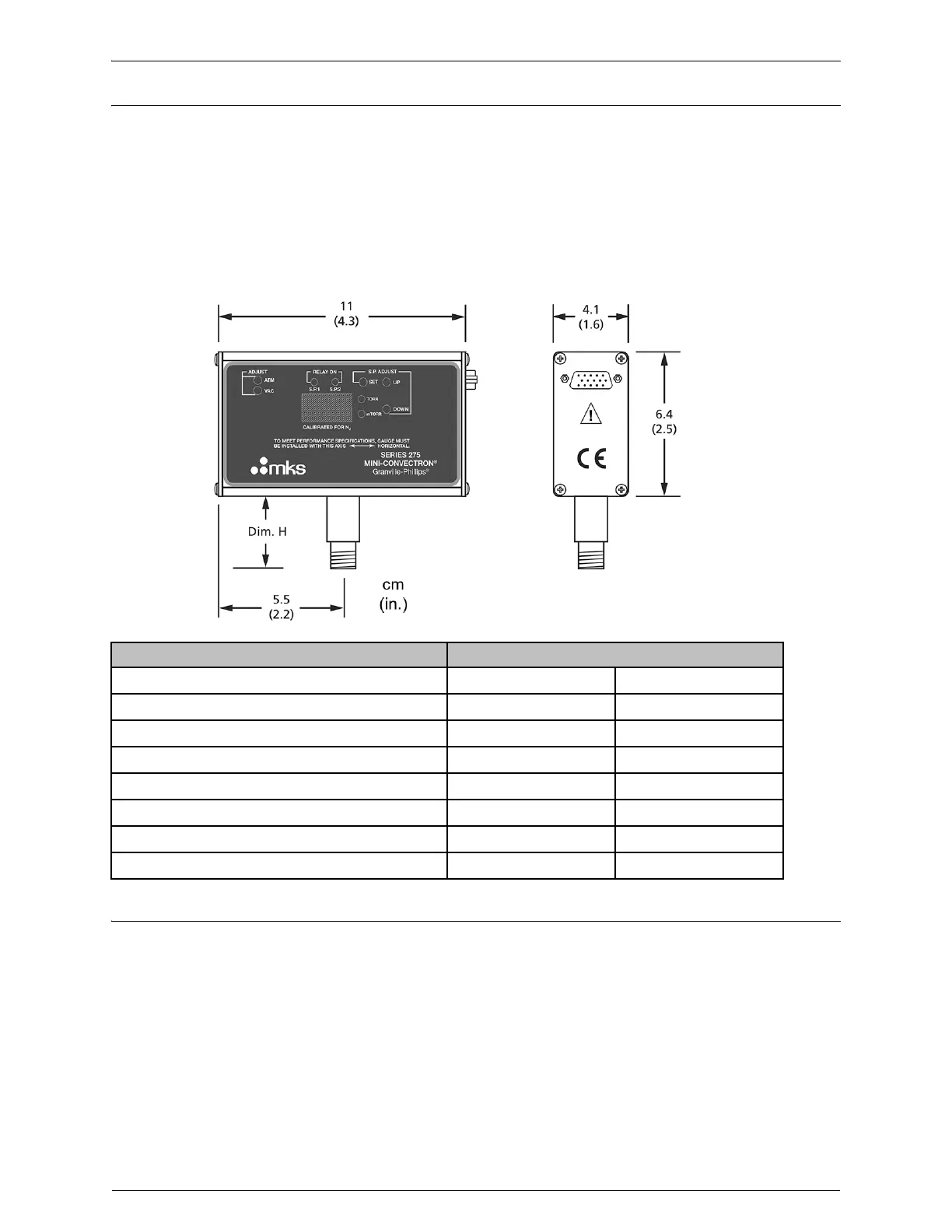

Dimensions
Dimensions are in cm (in.)
Optional Display
Pressure Units
Torr or Pascal
Pressure Value
Green 3-digit LED, automatic ranging from Torr to mTorr
Vacuum Connections Dim. H
cm in.
1/8 NPT pipe thread, ½-inch inside diameter 2.2 0.9
1/4-inch 4 VCR
®
type fitting, female 3.0 1.2
1/2-inch 8 VCR type fitting, female 3.9 1.5
NW16KF flange 3.1 1.2
NW25KF flange 3.1 1.2
1.33-inch (NW16CF) ConFlat
®
flange 3.8 1.5
2.75-inch (NW35CF) ConFlat flange 3.8 1.5
