Arrangement of the control
cabinet
23
04/99 AWB 2700-1311 GB
Mounting angle
The PS 4-300 must be mounted horizontally in the
control cabinet as shown in the diagram below.

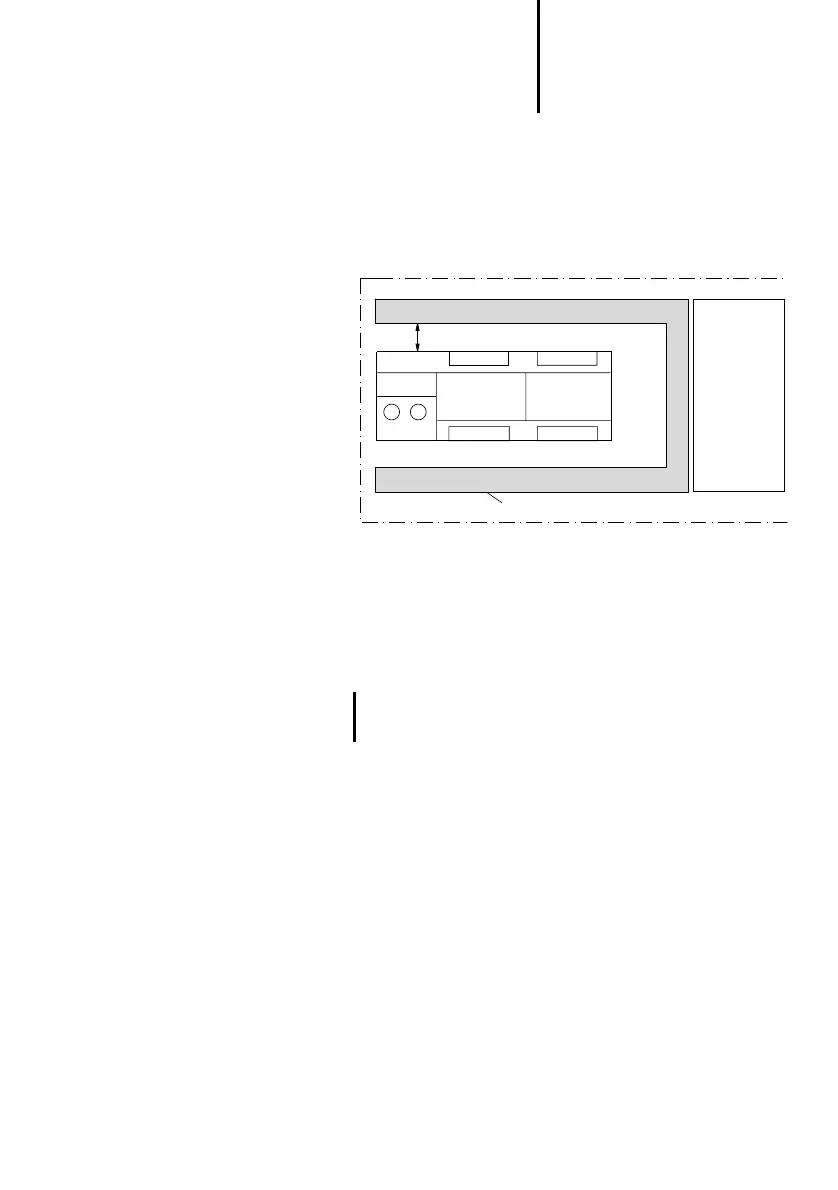

Figure 9: Horizontal installation
햲 At least 5 cm clearance
햳 Power section
햴 Cable duct
4 SP
햴
햳
햲

The PS 4-300 must be installed horizontally if it is
used with local expansion modules.
