3 Mounting
Mounting on top-hat
rail
Proceed as follows to mount the PLC on a top-hat
rail:
왘
Place the module on the top-hat rail so that the
top edge of the rail latches into the groove.
왘
Insert a screwdriver
햲
into the slot of the sliding
clip and lever the clip down
햳
.
왘
Press the module onto the top-hat rail
햴
.
왘
Release the sliding clip. It will then snap into
position behind the top-hat rail.
왘
Check that the module is seated firmly.

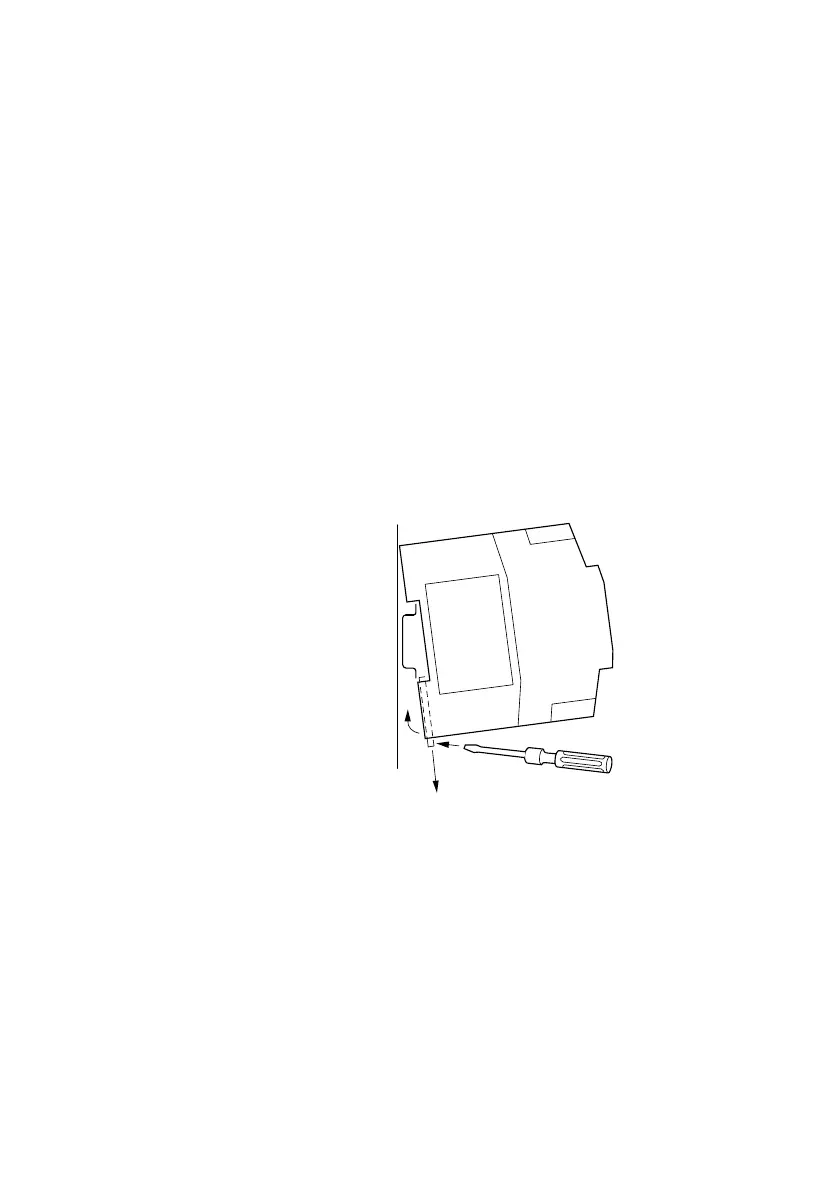

Figure 15: Mounting on a top-hat rail
햲
햳
햴
