36
04/99 AWB 2700-1311 GB
Mounting on fixing feet
Proceed as follows to mount the PLC on fixing feet:
왘
Press the feet in so that they snap into position
햲
.
왘
Check that the PLC is seated correctly. The lug
must latch in the hole
햳
.
왘
Fasten the feet to the mounting plate with M4
screws
햴
.
왘
Create a low-impedance connection between the
device and the mounting plate over a large
surface. When you do so, the contact springs
beneath the device must touch the mounting
plate.

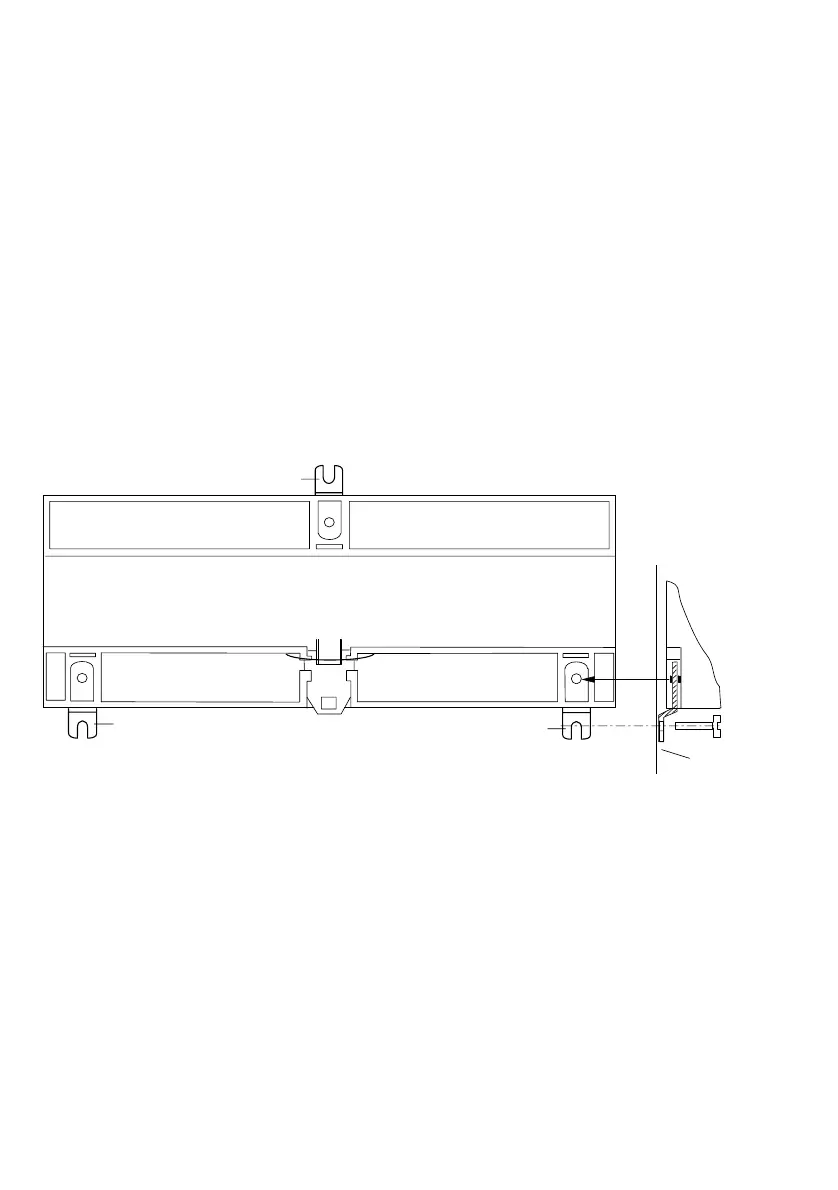

Figure 16: Mounting on fixing feet
햲
햲
햲
햳
햴
H1311g.bk Seite 36 Freitag, 4. Juni 1999 1:12 13
