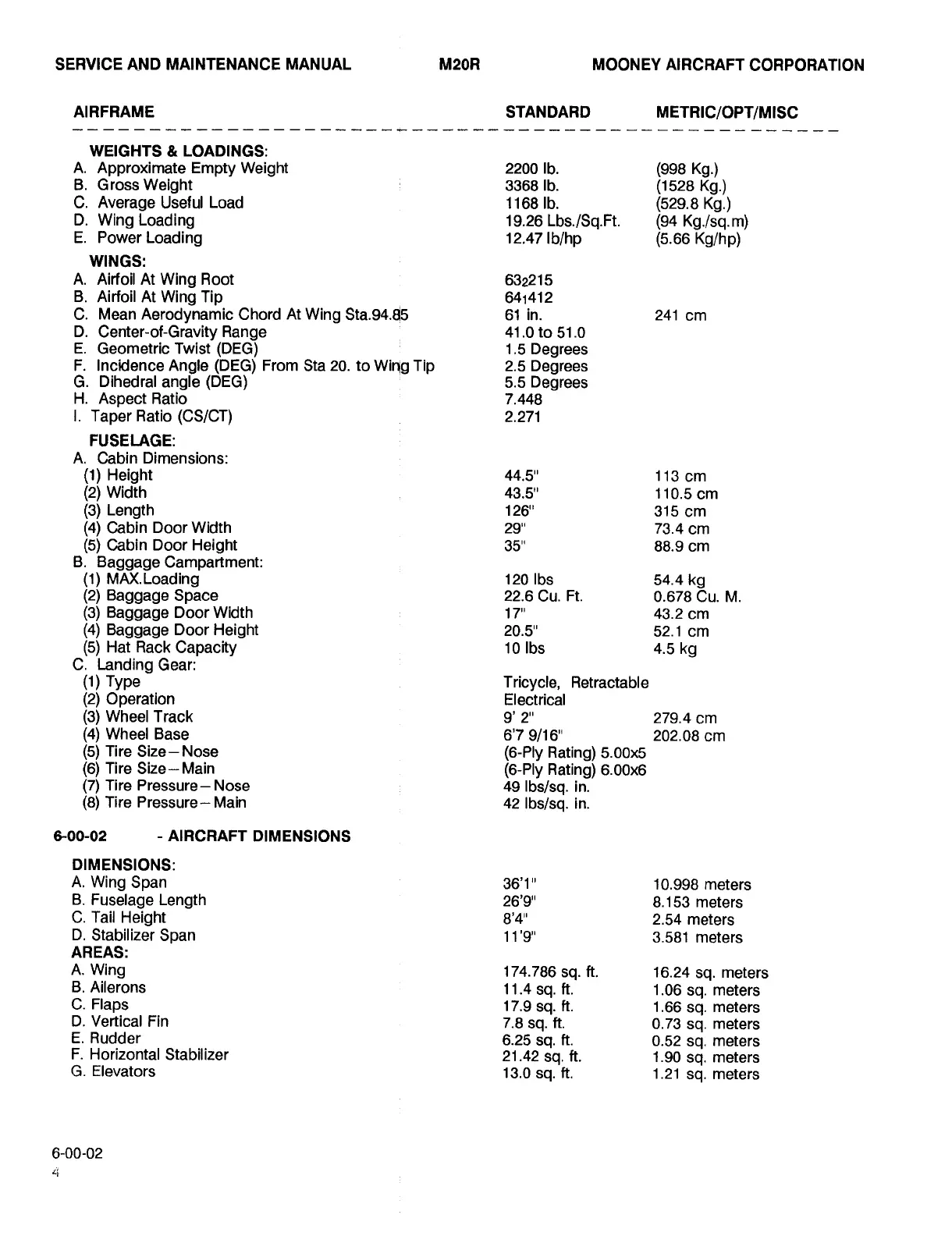

Mooney M20R - Page 32

SERVICE
AND
MAINTENANCE
MANUAL M20R
MOONEY AIRCRAFT
CORPORATION
AIRFRAME
STANDARD
METRIC/OPT/MISC
WEIGHTS LOADINGS:
A.
Approximate
Empty
Weight
2200
Ib.
(998
Kg.)
B.
Gross
Weight
3368
Ib.
(1528
Kg.)
C.
Average
Useful Load
1168
Ib.
(529.8
Kg.)
D.
Wing
Loading
19.26
Lbs.lSq.Ft.
(94
Kg.lsq.m)
E.
Power
Loading
12.47
Ib/hp (5.66
Kg/hp)
WINGS:
A.
Airfoil
At
Wing
Root
632215
B. Airfoil At
Wing Tip
64~412
C.
Mean
Aerodynamic
Chord
At
Wing
Sta.94.8~5
61
in.
241
cm
D.
Center-of-Gravity
Range
41.0
to
51.0
E.
Geometric Twist
(DEG)
1.5
Degrees
F.
Incidence
Angle
(DEG)
From
Sta
20. to
Wing Tip
2.5
Degrees
G.
Dihedral
angle
(DEG)
5.5
Degrees
H.
Aspect
Ratio
7.448
i.
Taper
Ratio
(CS/CT)
2.271
FUSELAGE:
A.
Cabin
Dimensions:
(1)
Height
44.5"
113
cm
(2)
Width
43.5"
110.5
cm
(3)
Length
126"
315
cm
(4)
Cabin
Door
Width
29"
73.4
cm
(5)
Cabin
Door
Height
35"
88.9
cm
B.
Baggage Campartment:
(1) MAX.Loading
120
Ibs
54.4
kg
(2)
Baggage
Space
22.6
Cu.
Ft.
0.678
Cu.
M.
(3)
Baggage
Door Width
17"
43.2
cm
(4)
Baggage
Door
Height
20.5"
52.1
cm
(5)
Hat
Rack
Capacity
10
Ibs
4.5
kg
C.
Landing
Gear:
(1)
Type
Tricycle,
Retractable
(2) Operation
Electrical
(3)
Wheel
Track
9’
2"
279.4
cm
(4)
Wheel
Base
6’7
9/16"
202.08
cm
(5)
Tire
Size-
Nose
(6-Ply
Rating)
5.00x5
(6)
Tire
Size-
Main
(6-Ply
Rating)
6.00x6
(7)
Tire
Pressure Nose
i
49
Ibs/sq.
in.
(8)
Tire
Pressure Main
42
Ibs/sq.
in.
6-00-02
AIRCRAFT
DIMENSIONS
DIMENSIONS:
A.
Wing Span
36’1"
10.998
meters
B.
Fuselage
Length
26’9"
8.153
meters
C.
Tail
Height
8’4"
2.54
meters
D.
Stabilizer
Span
11’9"
3.581
meters
AREAS:
A.
Wing
174.786
so.
ft.
16.24
so.
meters
B.
Ailerons
11.4
so.
ft.
1.06
so.
meters
C.
Flaps
17.9
so.
ft.
1.66
so.
meters
D.
Vertical Fin
7.8
so.
ft.
0.73
so.
meters
E.
Rudder
6.25
so.
ft.
0.52
so.
meters
F.
Horizontal
Stabilizer
21.42
so.
ft.
1.90
so.
meters
G.
Elevators
13.0
so.
ft.
1.21
so.
meters
6-00-02
