Bench Check
We highly recommend that you perform a bench check of your SPA
2
prior to installing it in the
eld. This will ensure that the SPA
2
is operating within your expectations or requirements. The
bench check is a quick way to determine that your SPA
2
is functioning as expected. As a prelude
to performing the bench check you should congure your SPA
2
as it is to be used in your nal
application.
Refer to Section 4 for the SPA
2
Front Panel Conguration instructions.These instructions are used
if you are conguring your SPA
2
by using the front panel push buttons. Section 5 contains the
instructions for conguring your SPA
2
using the SPA
2
PC Conguration software. The equipment
necessary to perform a bench check can be found in Table 2.1 or Table 2.2.
Bench Check Procedure
Current or Voltage Input (HLPRG):
1. In order to provide an input to your SPA
2
HLPRG you will need to use an appropriate input
source. By example – if you plan to use your SPA
2
with a current (mA) input you will need to
use a milliamp source to provide the appropriate input during your bench check. The same
goes for a voltage source. Use whichever input source is correct for your intended application.
Please see Figure 2.1 for the correct input connections.
2. Power Input:
Connect the appropriate power source as shown in Figure 2.1.

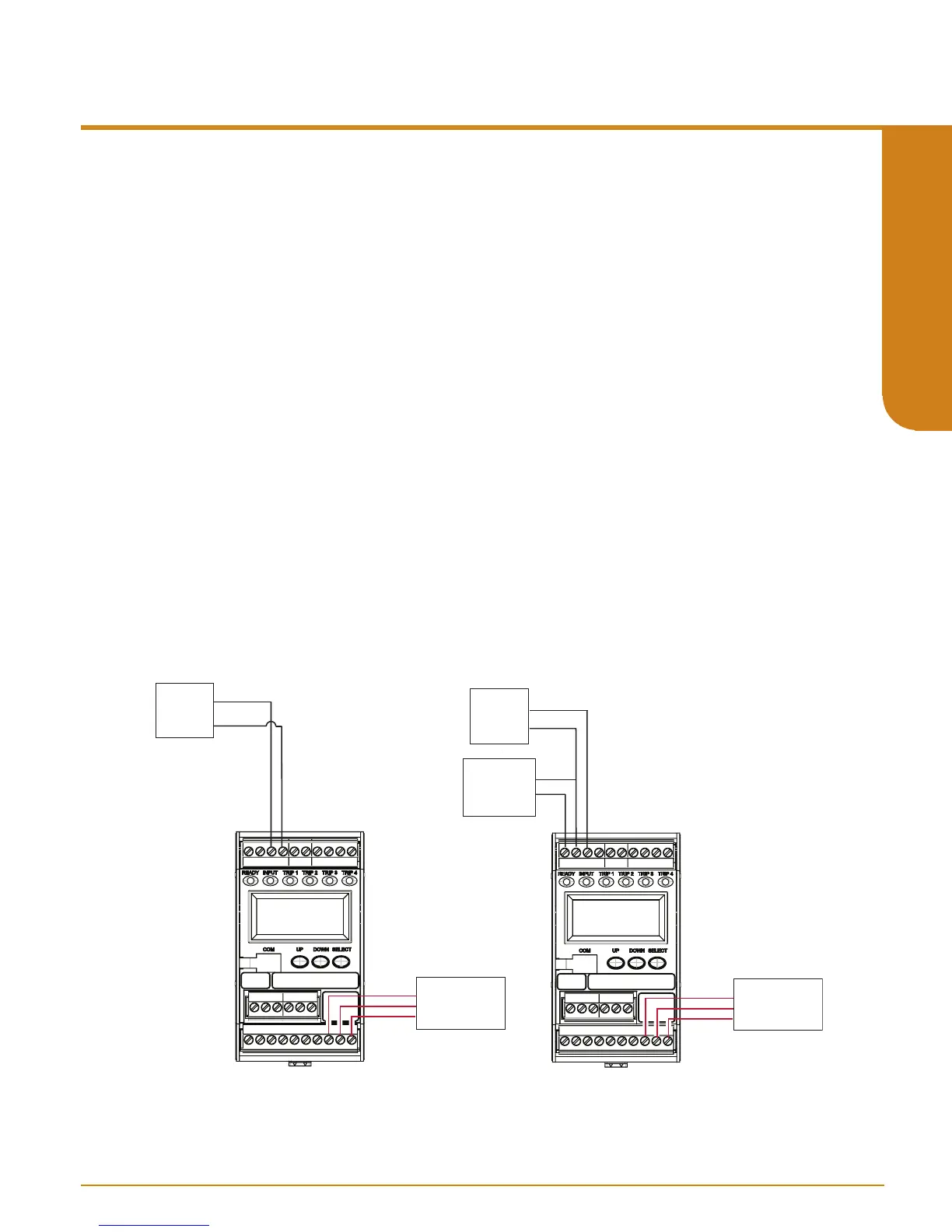

Figure 2.1. SPA
2
(HLPRG) Bench Check
VOLTAGE
SOURCE
_
+
Universal
Power
Supply
GND
AC/DC
AC/DC
CURRENT
SOURCE
_
+
2-WIRE
TRANSMITTER
_
+
Universal
Power
Supply
GND
AC/DC
AC/DC
.
Programmable Limit Alarm Trips
SPA
2
SECTION 2
