Moore Industries SPA2 - Selecting Model Type

www.miinet.com Moore Industries-International, Inc.
- 60 -
User’s Manual
224-790-00K
May 2018
Programmable Limit Alarm Trips
SPA
2
SECTION 5
Selecting Model Type

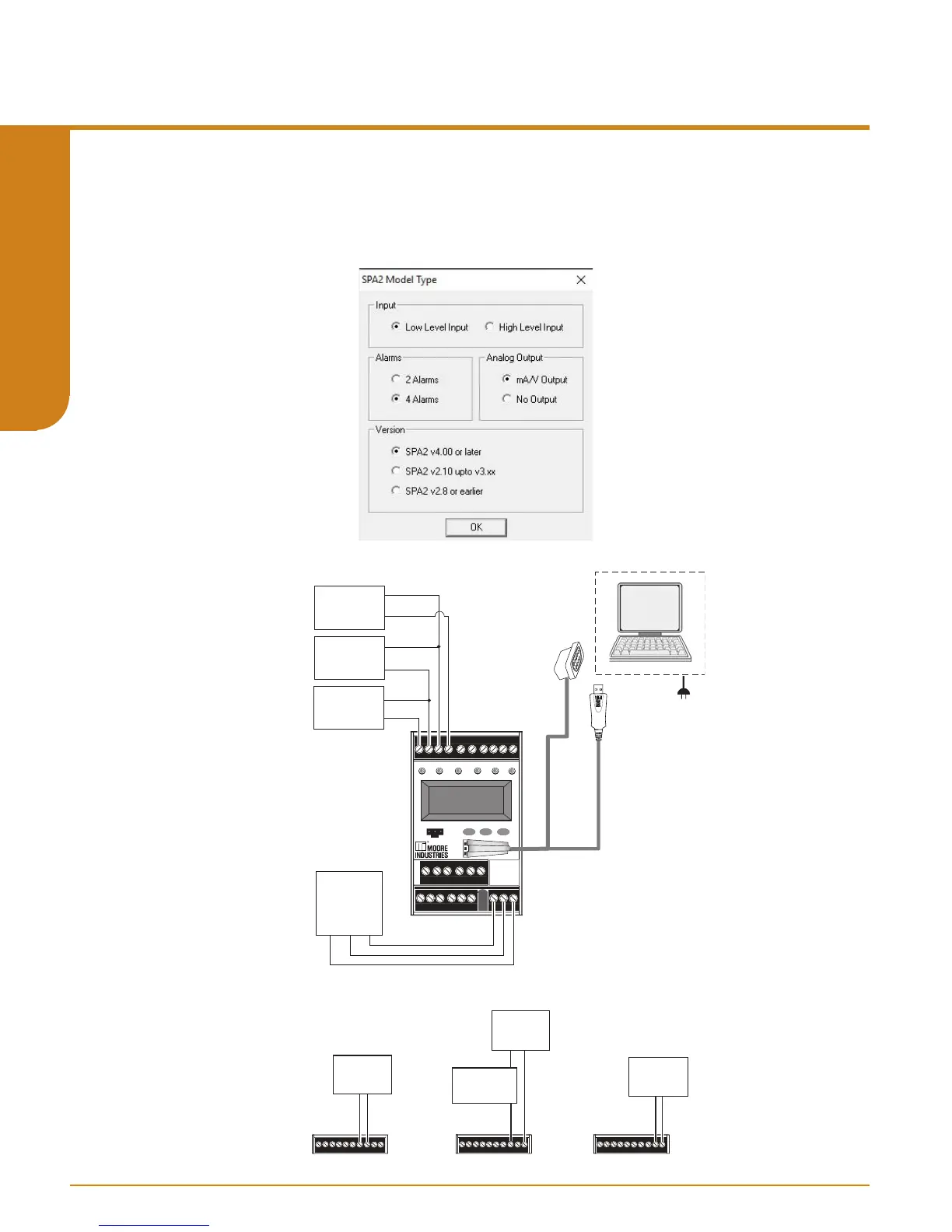

User must select model type when the software is opened without a unit connected as shown below.
Unit type is determined by software version and input type. When a unit is connected the software
will select the correct type automatically.
Figure 5.1. SPA
2
HLPRG Hook-Up Diagram For PC Configuration
SPA
READY
INPUT TRIP 1 TRIP 2
TRIP 3 TRIP 4
SELECT
DOWN
UP
COM
2
SITE
PROGRAMMABLE
ALARM
AC OR DC
POWER
SUPPLY
GND
VOLTAGE
SOURCE
_
+
CURRENT
SOURCE
_
+
2-WIRE
TRANSMITTER
_
+
CURRENT OUTPUT SOURCE
+
-
+
-
EXTERNAL
POWER
SUPPLY
+
-
CURRENT OUTPUT SINK
MULTIMETER
OR
DCS
MULTIMETER
OR
DCS
+
-
MULTIMETER
OR
DCS
VOLTAGE OUTPUT
HOOK-UPS FOR OUTPUT TRIMMING
PC
TO SERIAL
(COM) PORT
OF PC
To USB
(COM)
Port of PC
_
+
