SECTION 4

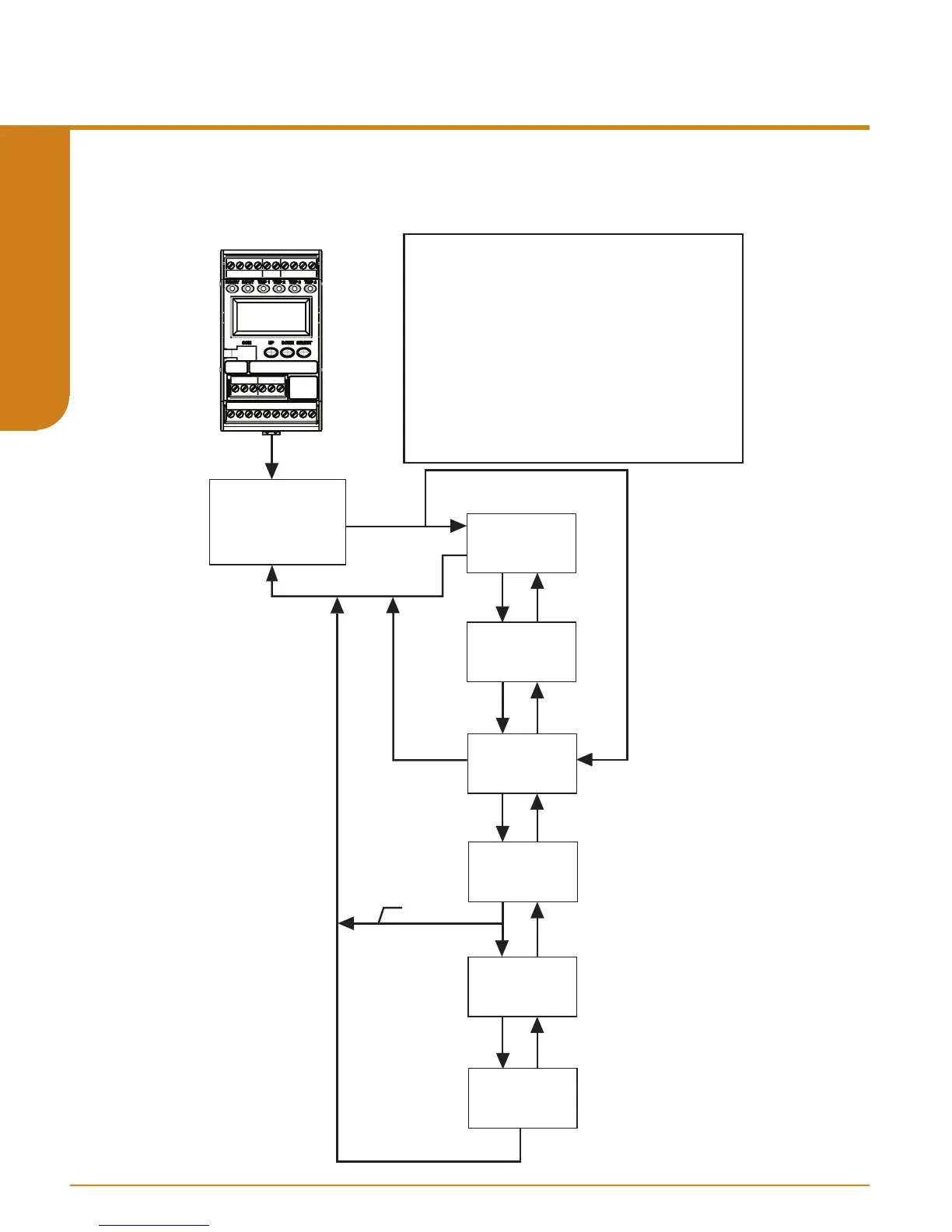

Figure 4.3. View Menu
PROCESS VALUE
DISPLAY
D
D
D
D
U
U
U
U
D
U
If no AOUT
XXXXX
ZERO
(IF AOUT)
XXXXX
FULL
(IF AOUT)
*XXXXX
AL1
*XXXXX
AL2
*XXXXX
AL3
*XXXXX
AL4
U/D
U
If no AOUT
If 2 alarms
D
U
*If set as a:
• TRIP alarm, trip point value is displayed along
with an "H" (high alarm) or an "L" (low alarm),
depending upon configuration
• FAULT alarm, "FAULT" is displayed
• ROC (Rate of Change) alarm, "ROC" is displayed
with a "d" (Delta) and a "dT" (Delta Time)
• BAND alarm, "BND" is displayed along
with an "H" (high alarm) and an "L" (low alarm),
• STUCK INPUT alarm, "STK" is displayed along
with a "d" (Delta) and a "dT" (Delta Time)
• If no button is pressed for 10 seconds, the
display returns to the Process Value reading
