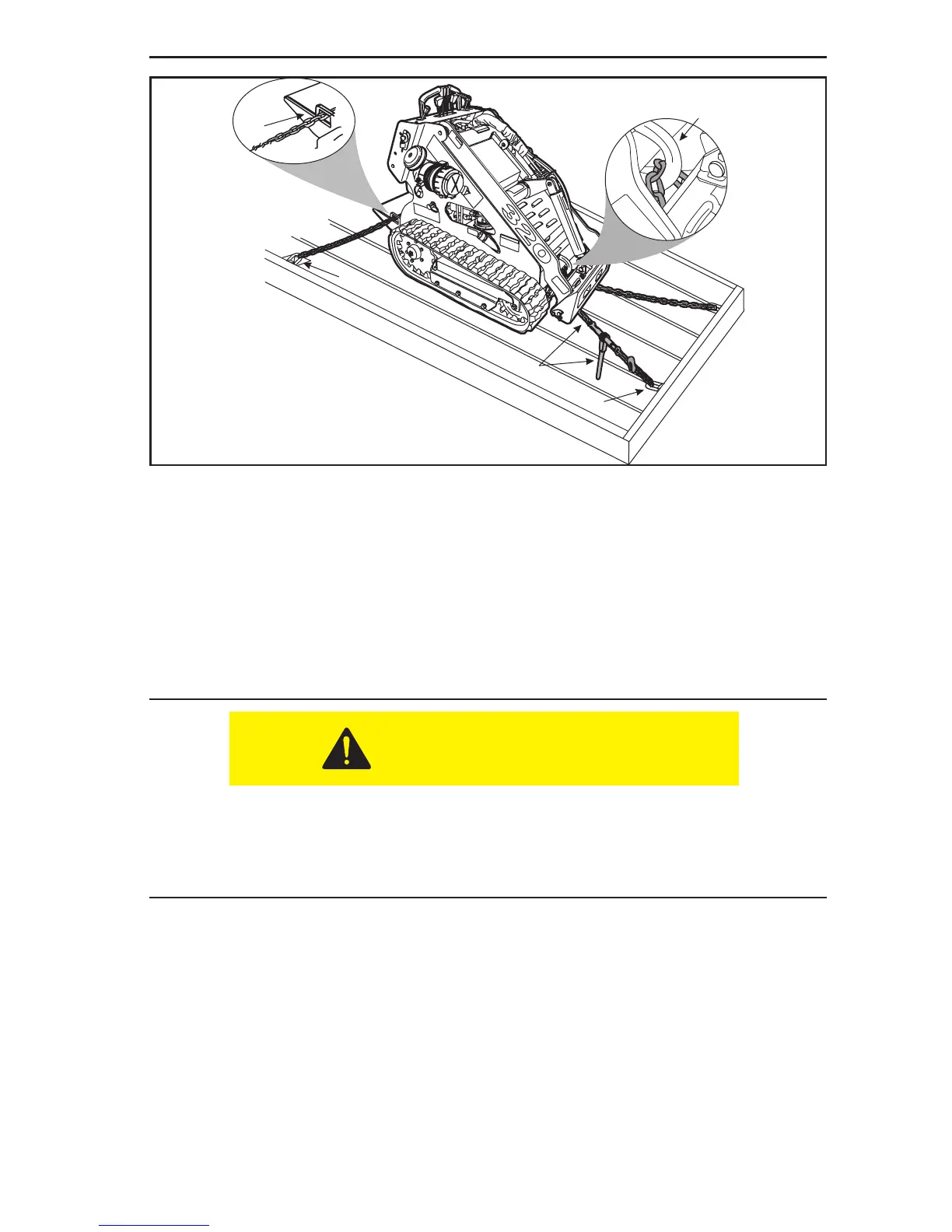

Figure 3-11 Travel Chains and Binders
Lifting Procedures
When it becomes necessary to lift the machine
1. Use a lifting device that can safely lift 4,000 lbs (1820 Kg).
2. Use appropriate lifting chains (Item 1, Figure 3–12) that can safely lift 4,000 lbs (1820
Kg).
3. Route the chains through the lifting eye (Item 2, Figure 3–12) located directly in front of
the operating controls.
• Lift the machine approximately 12” to make sure that the machine is balanced
before completing the lift.
• If lifting the machine with an attachment installed, the overall machine may not
be balanced from front to back.
