Pre Start Inspection and Operation
3.27
Operating Instructions for a Hydraulic Attachment
1. Move the engine throttle to the full speed setting. Raise the attachment o the ground and
position it for use.
2. Move the HI/LOW selector lever (Item 2, Figure 3–35) to either the high speed or low
speed setting depending on the attachment to be used. This setting will control both the
functional speed of the attachment as well as machine travel speed.

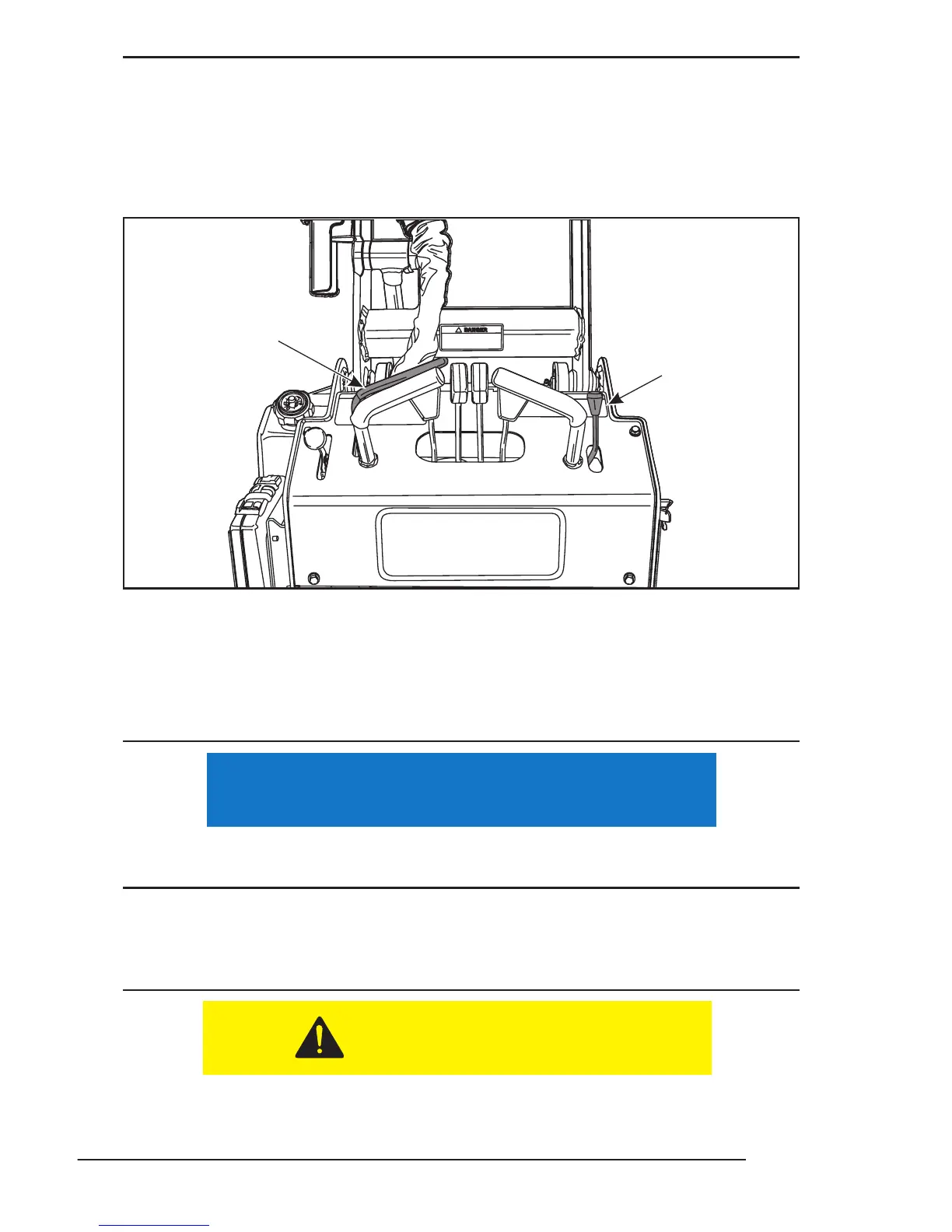

Figure 3-35 Auxiliary Attachment Controls
3. With your left hand, squeeze the OPERATOR PRESENCE control lever (Item 1, Figure
3–35) towards the hand grip to activate the FORWARD motion of the attachment.
NOTE: The OPERATOR PRESENCE lever is spring loaded and when released, will
automatically move from the FORWARD motion position to NEUTRAL, stopping the
attachments motion. The engine will continue to run.
When using an attachment that will require the machine to move, such as with a trencher or
tiller, it is recommended to set the HI/LOW selector lever to the LOW speed position.
4. Lower the attachment to begin work.
NOTE: If you want to reverse the operation of the attachment, move the OPERATOR
PRESENCE lever (Item 1, Figure 3-32) to the REVERSE position. The control lever will
remain in the REVERSE position detent until it is moved to the NEUTRAL position.
• Make sure not to travel to fast for operating conditions when using a trencher,
tiller or other attachment that requires the machine to move.
• Stop all machine travel before releasing the OPERATOR PRESENCE lever.
