Pre Start Inspection and Operation
3.22
Installation of Hydraulically Powered Attachments
There are many hydraulically powered attachments available that are very easy to install. To
install any of these attachments:
1. Position the attachment on a level surface.
Clean the lower edge of the female attachment mounting plate to remove any debris that
might interfere with the attachment installation.
2. Start the machine engine, lower the loader arm and tilt the mounting plate forwards.
Make sure that both of the attachment lock pins (Item 1, Figure 3–28 and Item 3, Figure
3–29) are in the “unlocked” position.

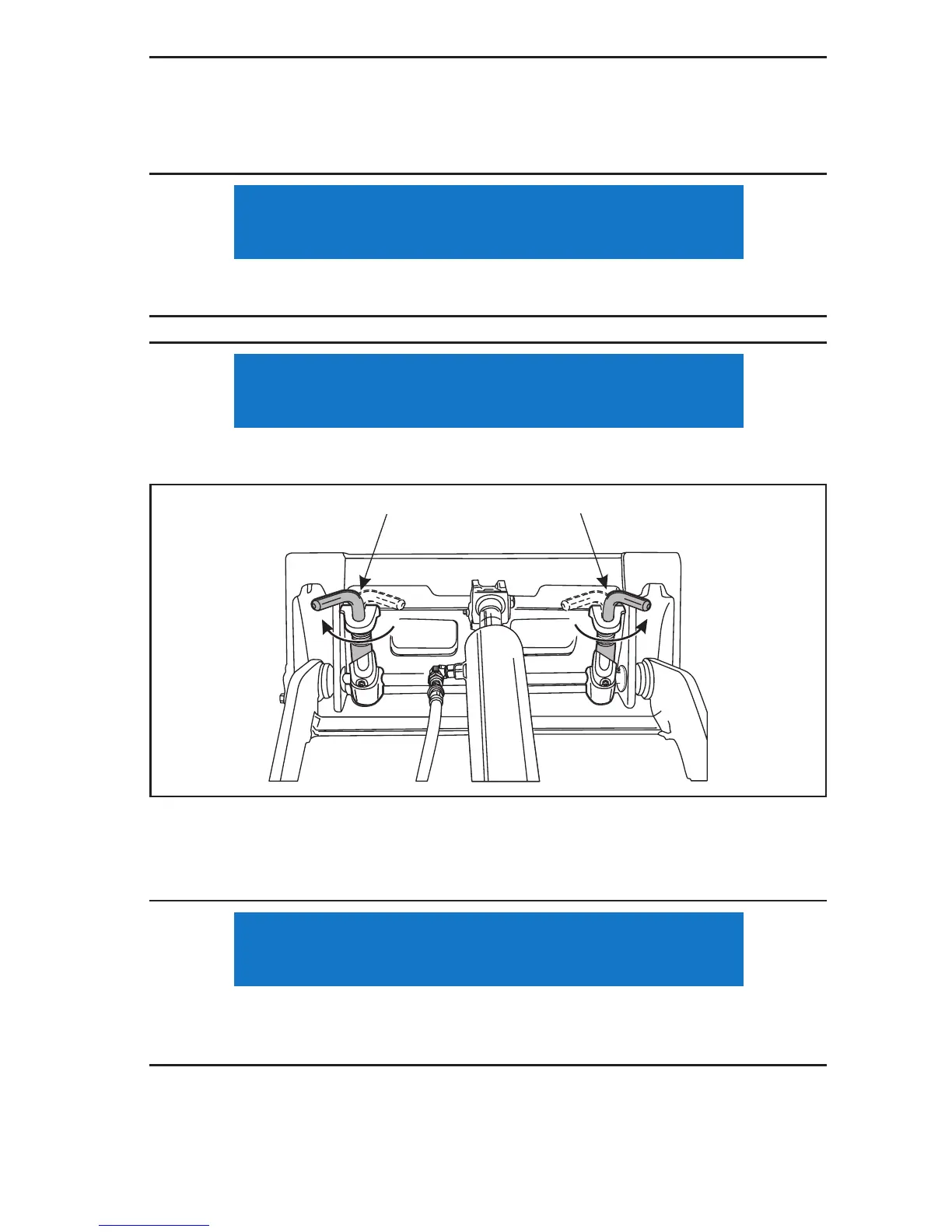

Figure 3-28 Attachment Locks in Unlocked Position
3. Slowly drive towards the attachment and align the top edge of the male mounting plate (Item
1, Figure 3–29) and the upper lip of the female attachment mounting plate (Item 2, Figure
3–29).
Make sure to position the attachments hydraulic hoses (Item 4, Figure 3–29) so that they are
not damaged during the installation process. Tuck the upper edge of the male mounting plate
into the upper lip of the female attachment mounting plate.
NOTICE
NOTICE
NOTICE
1
1
Pins Unlocked
