Routine Service and Maintenance
4.5
Hydraulics Inspection and Service
If you are checking the uid level after a period of use, the hydraulic system and
hydraulic uid will be very hot. Wear gloves when inspecting the hydraulic uid level.
1. Check hydraulic oil level, ll as needed with the proper hydraulic oil - be sure engine is
OFF
a. The hydraulic dipstick is located under the large nut (Item 1, Figure 4–5) on the
hydraulic tank ller port (Item 2, Figure 4–5) located on the right side of the machine.
b. Unscrew the dipstick assembly and remove from the machine. (Item 1, Figure 4–5).
c. Make sure that the hydraulic uid is 1/4” below the marker hole in the dip stick.

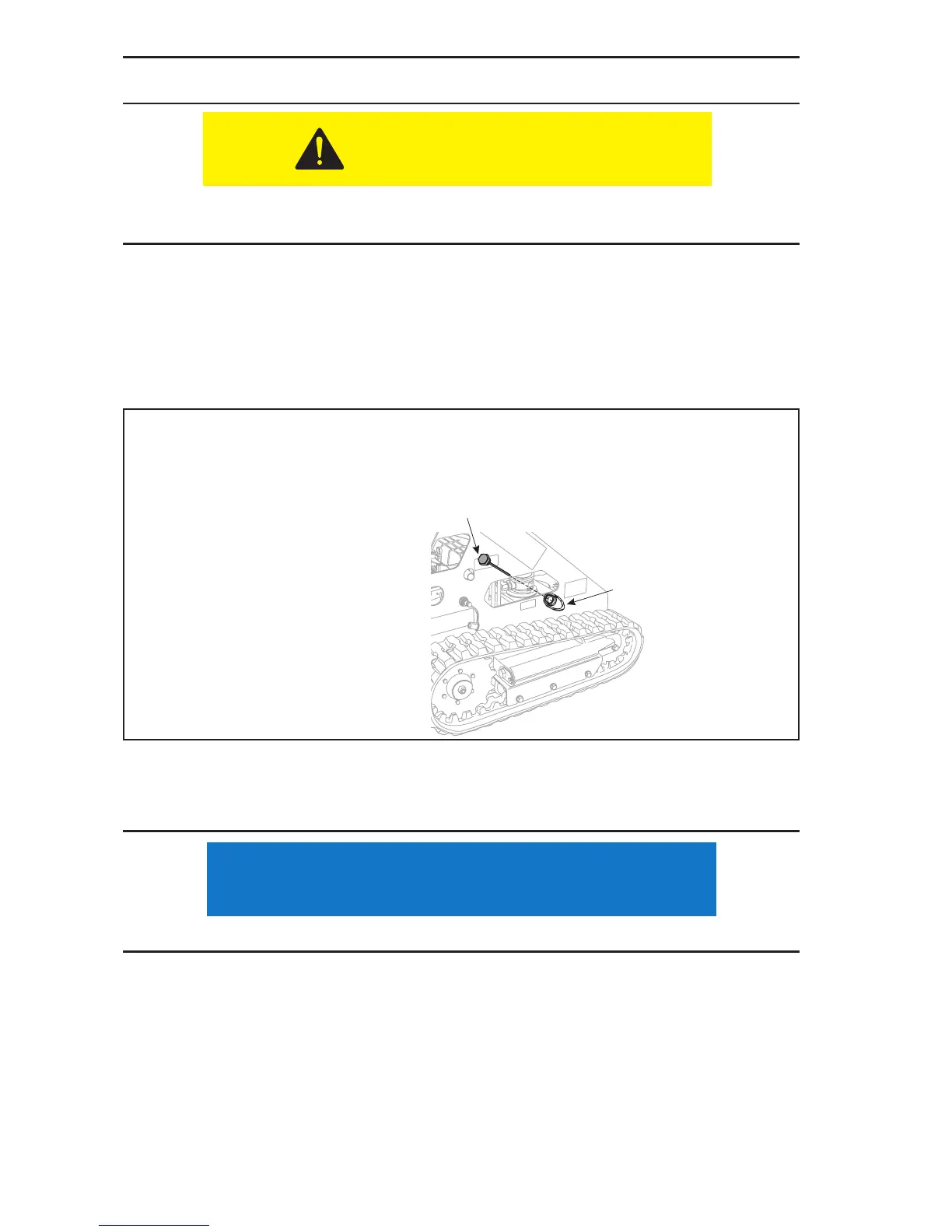

Figure 4-5 Hydraulic Fluid Level Dip Stick
d. Add the proper hydraulic uid (Chevron Rykon Premium ISO 46 hydraulic uid or
equivalent).
Do not over ll the hydraulic system. Damage to the hydraulic system might result.
CAUTION
1
2
NOTICE
