Pre Start Inspection and Operation
3.23

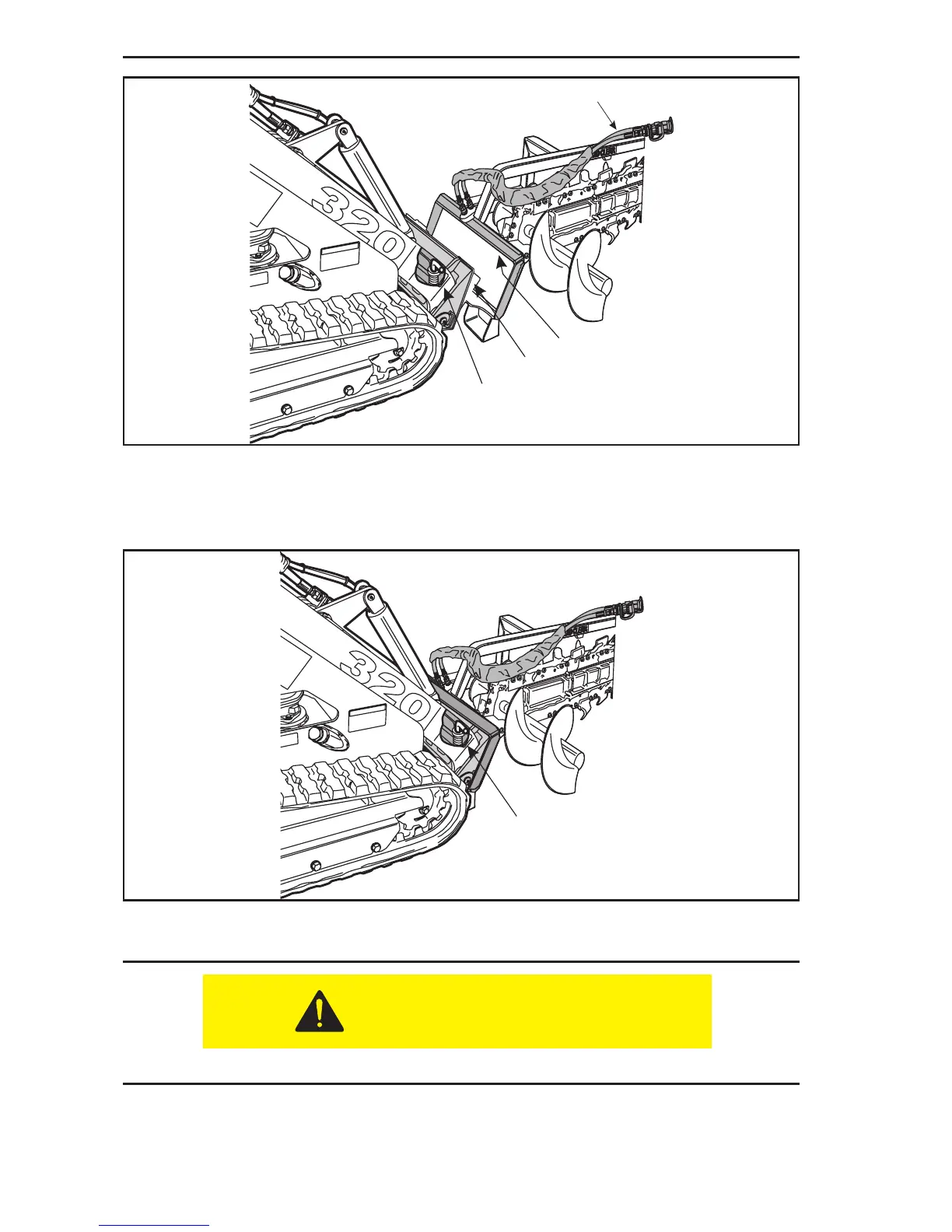

Figure 3-29 Hydraulically Powered Attachment Installation
4. When the machines mounting plates top edge is seated in the attachment mounting plate,
curl the machines mounting plate backwards slightly to allow the lower edge of the
machines mounting plate to slide into position. See Figure 3–30.
Figure 3-30 Hydraulically Powered Attachment Installed
5. Shut the engine o.
DO NOT go underneath the attachment when it is raised.
6. Rotate the attachment lock pins (Item 1, Figure 3–30, Item 1, Figure 3–31) into the locked
position securing the attachment to the machine.
1
3
4
2
1
CAUTION
