Pre Start Inspection and Operation
3.24

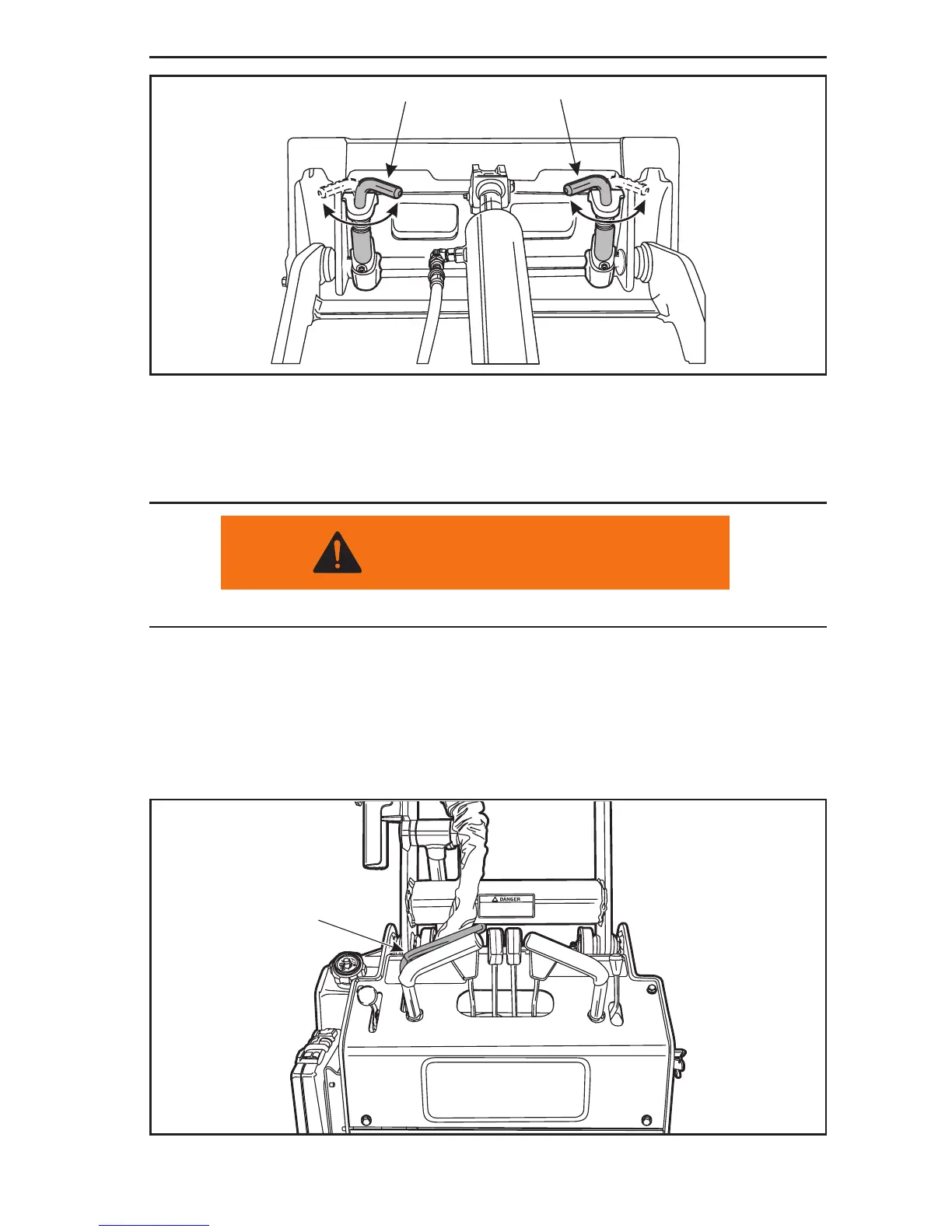

Figure 3-31 Attachment Locks in Locked Position
7. Start the engine and raise the attachment o the ground. Visually inspect the bottom edge
of the attachments mounting plate to make sure that both of the attachment lock pins are
securely holding the attachment in position.
8. Shut the engine o.
Make sure that the engine has been shut o before beginning this procedure.
9. Move any of the main hydraulic controls forward and backward to release any stored
hydraulic pressure.
10. Attach the hydraulic hoses to the quick connects. See Figure 3–33.
a. Move the AUXILIARY control lever (Item 1, Figure 3–32) either towards the hand
grip or backwards into the REVERSE detent position. This will release the hydraulic
pressure locked in the auxiliary hydraulic lines. Leave the control lever in the detent
position.
Figure 3-32 Auxiliary Control Lever
WARNING
1
