Routine Service and Maintenance
4.18
1
2
The hydraulic dipstick is located underneath the hydraulic ller plug, located along the
outside of the machine. See Figure 4–17.
Do not over ll the hydraulic system. Damage to the hydraulic system might result.
e. Unscrew the dipstick assembly and remove from the machine (Item 1, Figure 4–17). Fill
the hydraulic tank with the proper hydraulic uid until the uid level is at, but not above
the upper marker hole in the dipstick.

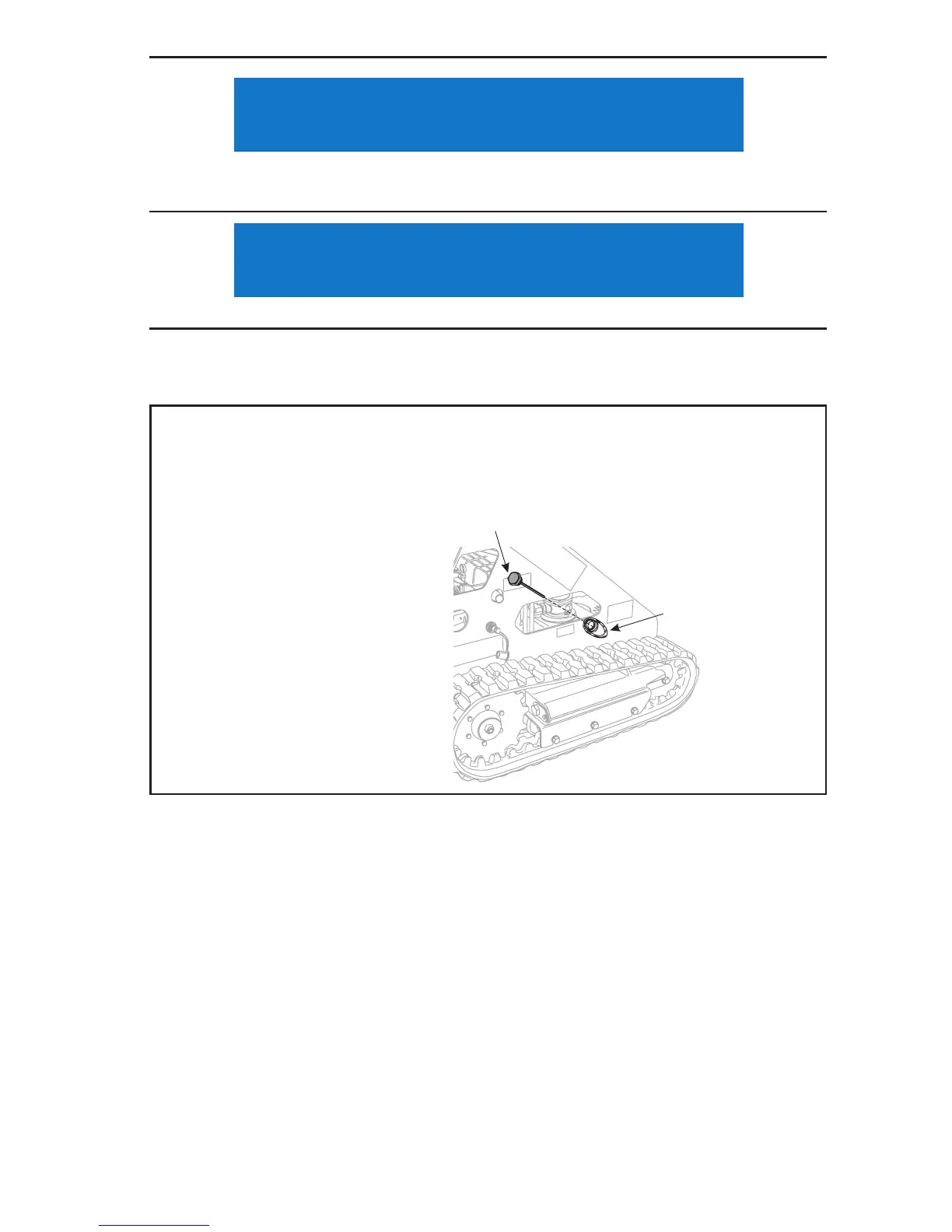

Figure 4-17 Hydraulic Fluid Level Dip Stick
f. Start the machine and run the engine at low idle for several minutes.
g. Shut o the engine.
h. Recheck the hydraulic uid level as described above.
NOTICE
NOTICE
