Morbark BOXER 320 - Page 77

Routine Service and Maintenance
4.22
3
2
1
2
3
1

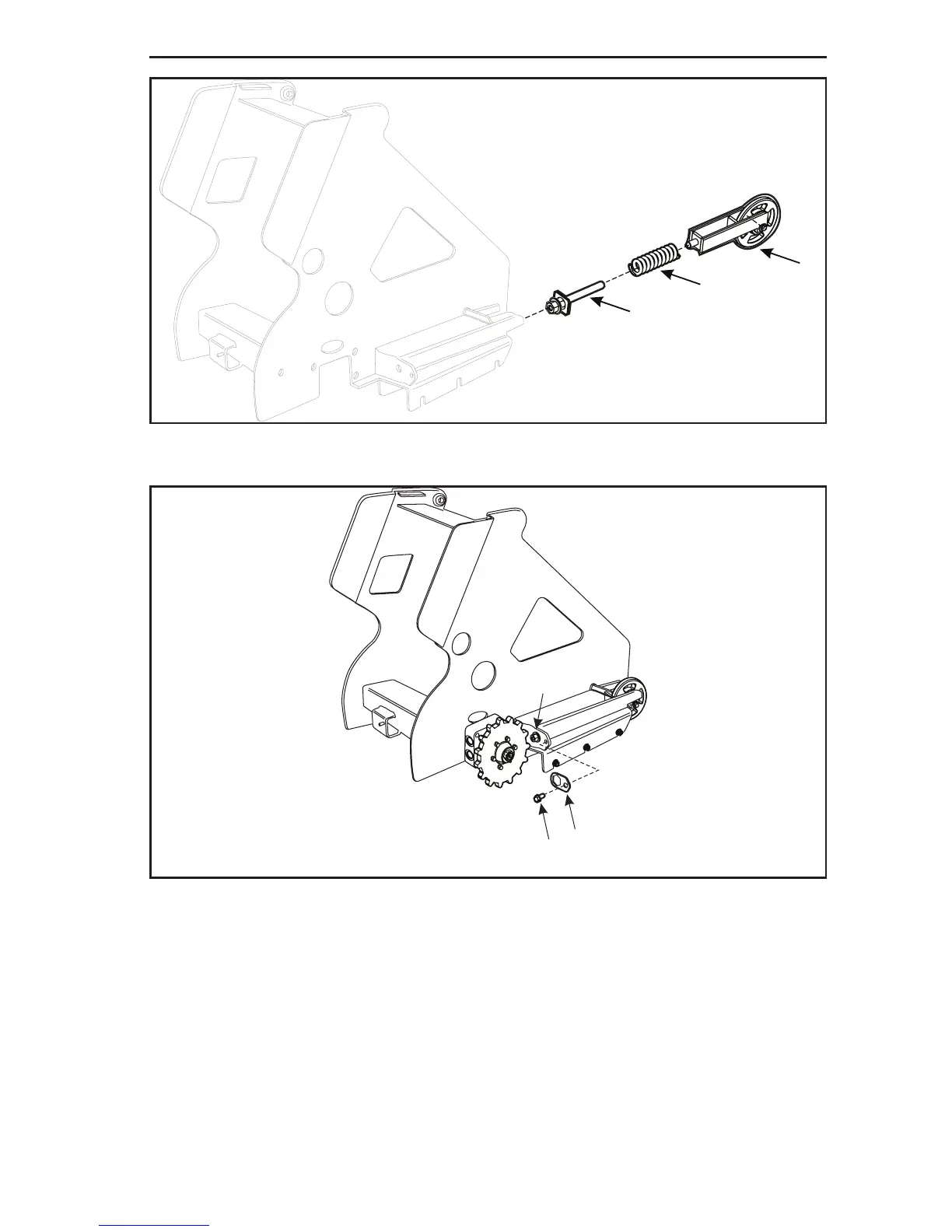

Figure 4-20 Track Drive Components
6. Remove track tension lock plate bolt (Item 1, Figure 4–21) using a 9/16” wrench.
Figure 4-21 Remove Lock Plate
7. Remove lock plate (Item 2, Figure 4-21).
8. Loosen track tension by rotating the tension bolt (Item 3, Figure 4–21) CLOCKWISE
using a 1 5/8” wrench.
