12. Position the drive sprocket and track onto the drive motor.
13. Rotate the drive sprocket (Item 1, Figure 4–25) and track to align the bolt holes.

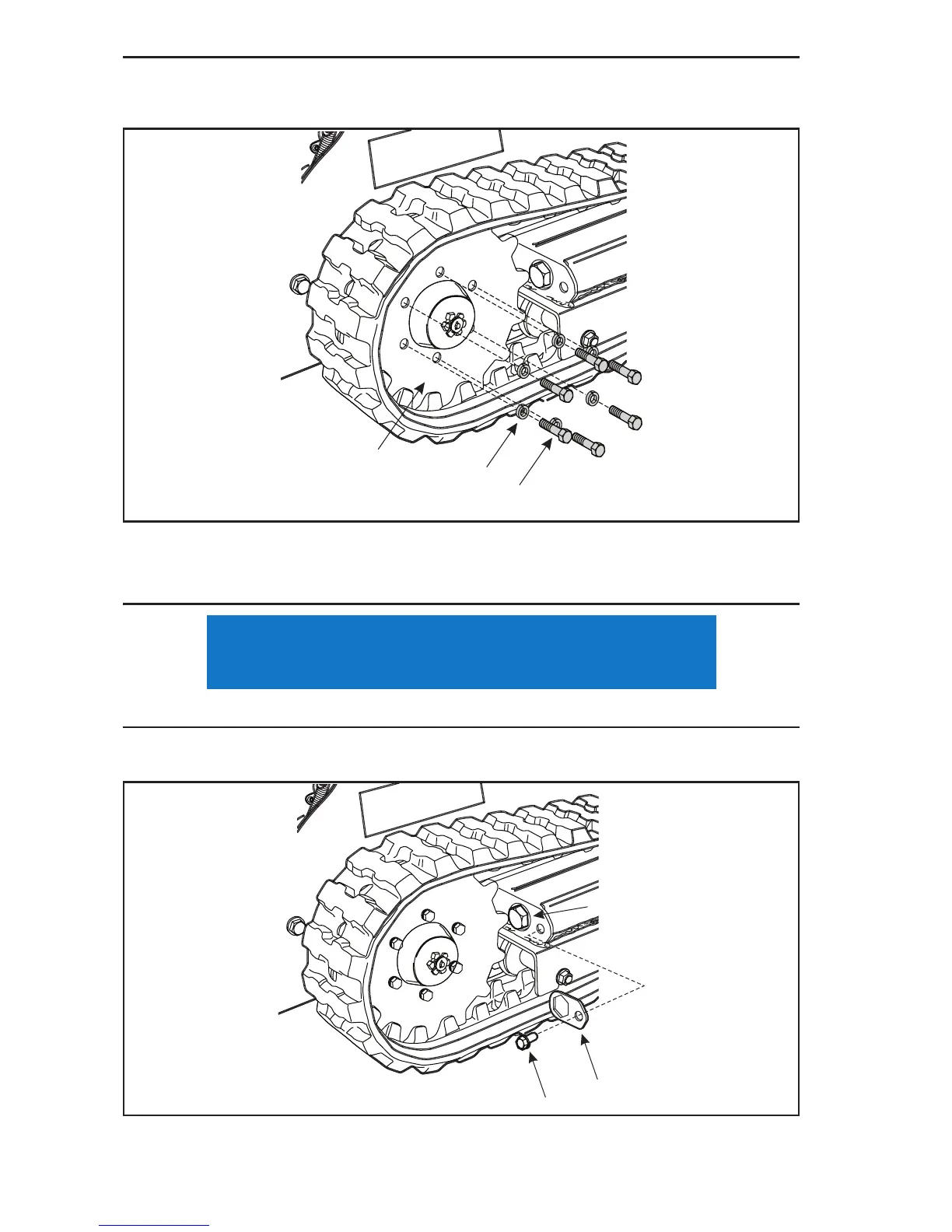

Figure 4-25 Install Track and Drive Sprocket
14. Install and secure the 6 drive sprocket lock washers (Item 2, Figure 4–25) and mounting
bolts (Item 3, Figure 4–25).
Tighten the bolts evenly around the drive sprocket.
15. Rotate the tension bolt (Item 3, Figure 4–26) COUNTER CLOCKWISE until the correct
track tension is set. See Track Tensioning earlier in this manual.
Figure 4-26 Set Track Tension
