System description
The Mobile Vicinity Scout (MVS) is a camera system
designed especially for utility vehicles. It provides the driver
with a clear, seamless 270° or 360° view around his vehicle.
The MVS system is used for heavy-duty and commercial
vehicles, which are utilised in the construction industry,
municipal transport and goods traffic, agricultural industry
and logistics.

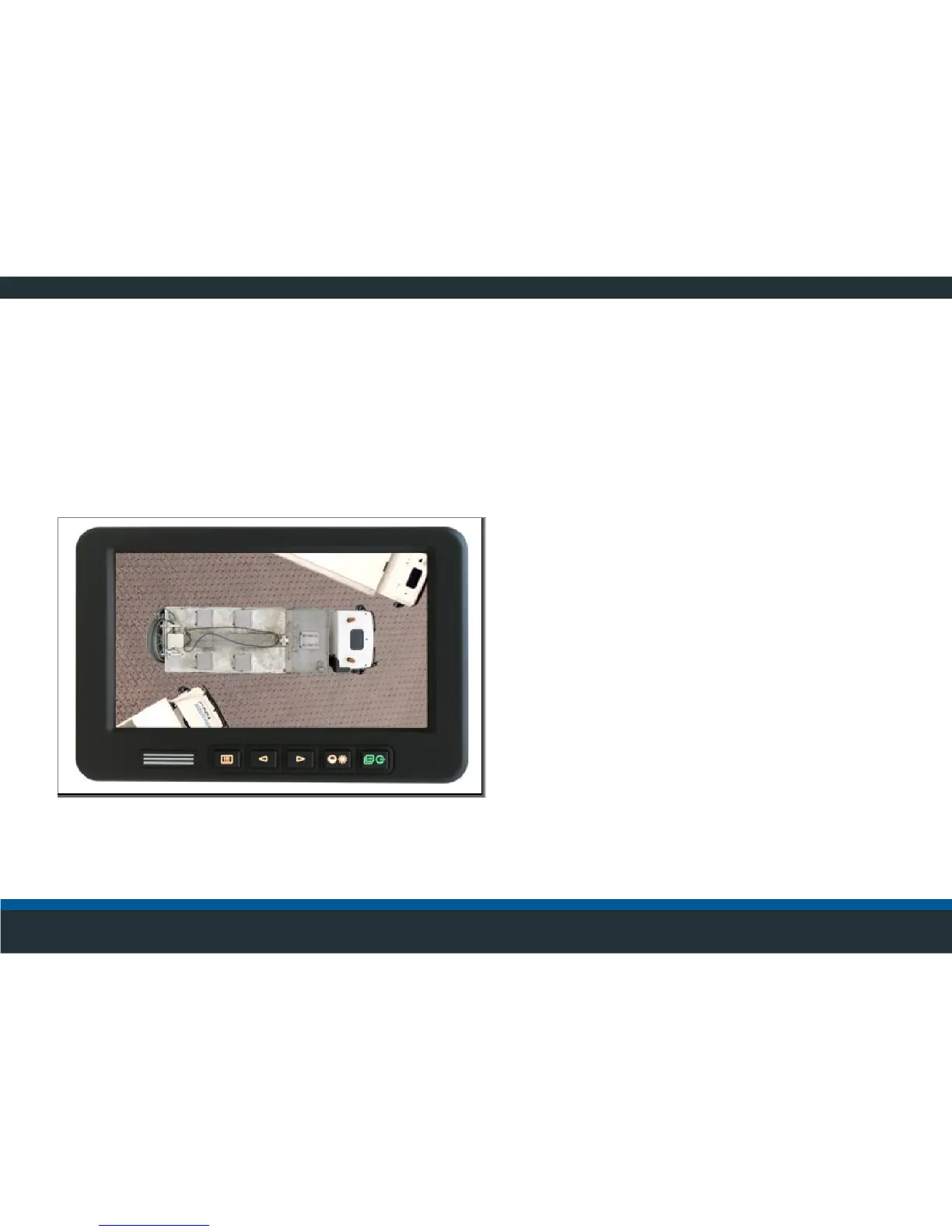

: Top view (example)
Camera system
The system generates one image of one vehicle side, using
3 cameras (270° system) or 4 cameras (360° system).
These individual images are processed to generate a top
view. The top view provides a seamless panoramic view
around the area close to the vehicle. This view increases
the safety during manoeuvring.
• During calibration, the system crops the displayed
image to the area near the vehicle.
• Objects in the detection area of the cameras and within
the calibration area are displayed.
• Inserting a customer-specific vehicle image to ensure a
display that is accurate to the contour of the vehicle.
• Display of individual static overlays for the
representation of danger areas, swivel ranges or
support points.
• The open interfaces allow a comprehensive integration
into the vehicle's electronic system and interconnection
with currently installed systems.
Additional camera in the 270° system
An additional camera (e.g., a rear-view camera) can be
connected to the 270° system. The camera image can be
selected via the control inputs or the CAN bus.
