7-6 Encryption: Over-the-Air Rekeying
7.5.2 Models W4, W5, W7, and W9
7.6 Over-the-Air Rekeying
The over-the-air rekeying (OTAR) feature allows the dispatcher to reprogram the encryption keys in
the radio remotely.
1. To enter the Advanced
Secure menu, press
and hold the
button
until a tone sounds.
2. Turn the Mode knob (W4) or press the Mode rocker switch
(W5, W7, W9) to scroll to the
ALL option.
3. Press the Sel button to erase all the keys in the radio.
The display shows
PLS WAIT (W4, W5, W7) or PLEASE WAIT
(W9) for two seconds, followed by
ERASED being shown for
about two seconds, then the display reverts back to
ALL.
4. To abort from the key-erase menu, press the HOME button or
the PTT button.
Pressing the PTT button causes the radio to transmit.
XMIT
BUSY
Mode
Volume
Pwr
Phon
Call SelScan
Mic
Home
Dim
H/L
Dir Mon
SECURE
INDICATOR
MODE
KNOB
HOME SECURE

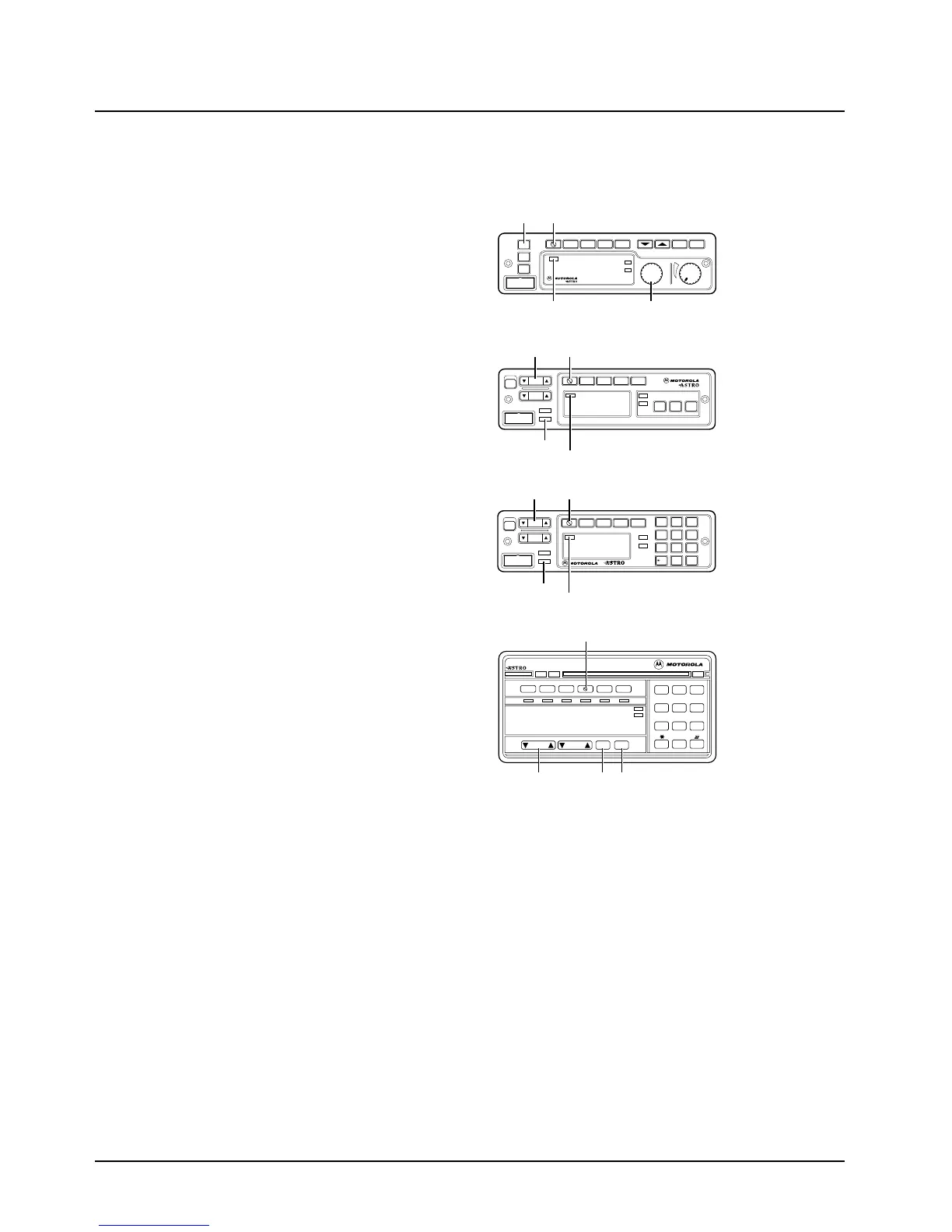

Model W4
