Motorola ASTRO SPECTRA Service Manual

February 3, 2003 6881076C20-E
11-8 Exploded Views and Parts Lists: High-Power (50-110W) Radio Exploded View
11.7 High-Power (50-110W) Radio Exploded View

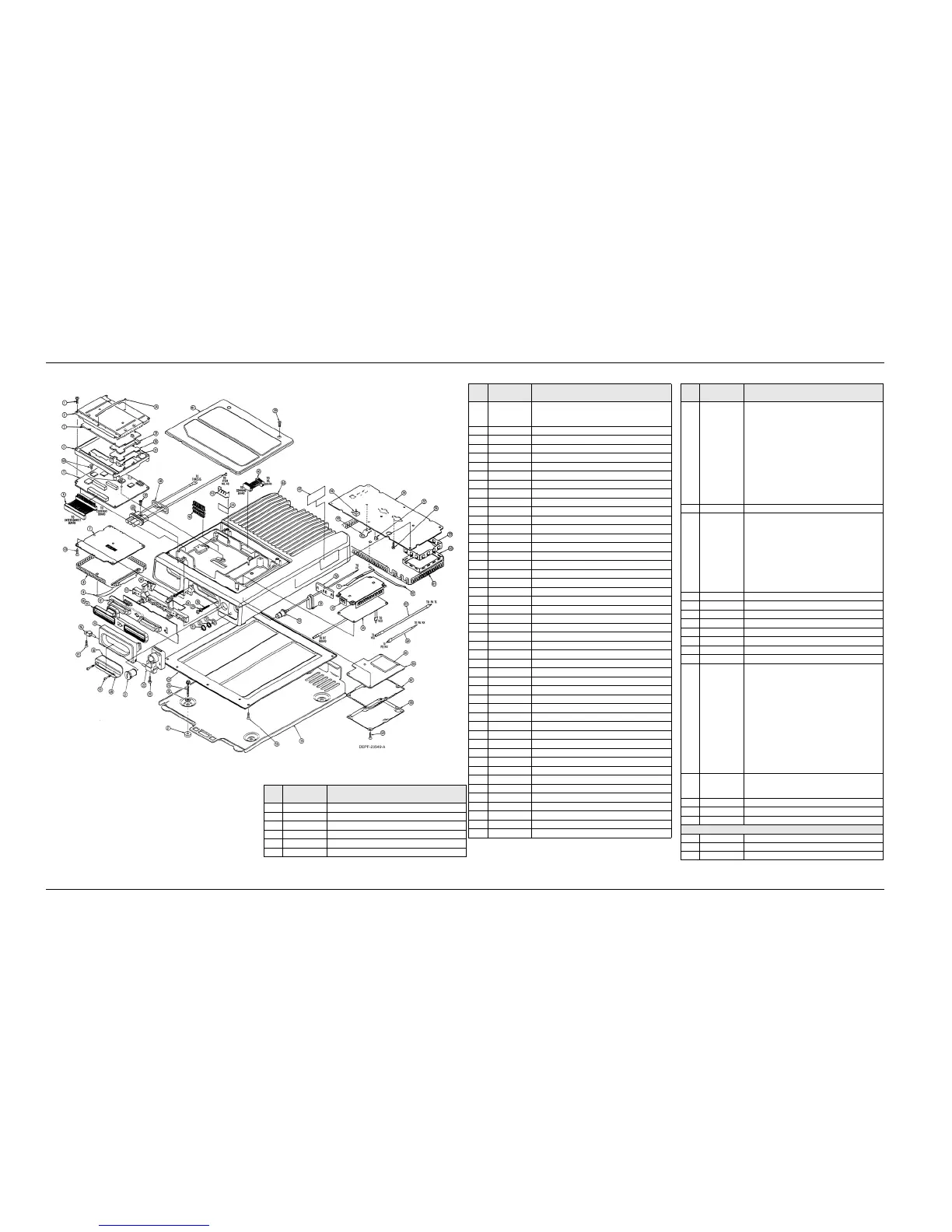

Figure 11-7. High-Power (50-110W) Radio Exploded View
Table 11-7. High-Power (50-110W) Radio Parts List
Item
No.
Motorola
Part No.
Description
1 0312016A27 SCREW, Tapping 3.5 x 0.6 x 22 (Board Mounting)
2 2605704V02 SHIELD, Top
3 HLN6458_ KIT, Controller Board
4 2705703V02 CASTING, Controller
5 HLN5558_ KIT, Command Board
6 3080211R01 CABLE, Command Bd to Interconnect Bd Ribbon
7 HRN6014_ or
HRN6020_ or
HRN6019_
KIT, RF Board (VHF)
KIT, RF Board (UHF)
KIT, RF Board (800 MHz)
8 1580099L01 SHIELD, RF Board
9 5584300B01 HANDLE (Qty 2)
10 3280206R01 GASKET, Connector
11 3280206R02 GASKET, SecureNet Connector
12 HLN5558_ KIT, Interconnect Board
13 4380110R01 SPACER, Interconnect Board
14 4280232R01 CLIP, Interconnect Board
15 5580102R01 HANDLE
16 4780176P01 PIN, Pivot
17 0310943R55 SCREW, Tapping
18 3280118R01 COVER Gasket
19 0380214R01 SCREW, Captive
20 3880122R01 CONNECTOR
21 5580370A01 LOCK
22 1580218R01 HOUSING, Lock (Non-replacable item)
23 0380043L01 SCREW, Tapping (Non-replacable item)
24 1580216R01 COVER, Bottom
25 0312002A28 SCREW, Self-Drilling
26 0400007688 LOCKWASHER
27 4382292M01 BUSHING, Spacer
28 4280210R01 RETAINER, Wire
29 0405171J03 WASHER, Fiber
30 0310908A97 SCREW, Machine
31 0280242M01 NUT, Hex; 7/16"
32 0400132718 LOCKWASHER, Internal-Tooth 7/16"
33 0480285R01 WASHER, Special
34 5584300B01 HANDLE
35 2605131X01 SHIELD, Encryption Board (Optional)
36 - - - - - - - - - BOARD, Encryption (Optional)
37 4205566W01 CLIP, Encryption Board (Optional)
38 3205457V01 GASKET, Power Connector
39 0380102P01 SCREW, Tapping
40 3080114R02 CONNECTOR, Power
41 1580217R01 COVER, Top
42 2880260M03 HEADER, Floating
43 4280007M02 CLIP, Regulator
44 1480001M01 INSULATOR, Regulator
45 3080212R01 CABLE, Command Bd to PA Bd Ribbon
46 2780133P02 CHASSIS
47 3380080E01 NAMEPLATE, FCC
48 0780255R01 BRACKET, Feed-Through
49 2680201R01 HEATSINK Diode-Bracket
50 4280261R01 CLIP, Coaxial Antenna
51 3280120R01 GASKET, Mini-Internal Connector
52 1580098L01 SHIELD, Front-End Receiver
53 3080261M03 CABLE, Mini
Table 11-7. High-Power (50-110W) Radio Parts List
Item
No.
Motorola
Part No.
Description
54 HRD6001_ or
HRD6002_ or
HRE6001_ or
HRE6002_ or
HRE6003_ or
HRE6004_ or
HRF6004_
KIT, Front-End Receiver Board
(VHF Range 1, 136-162MHz)
KIT, Front-End Receiver Board
(VHF Range 2, 146-174MHz)
KIT, Front-End Receiver Board
(UHF Range 1, 403-433MHz)
KIT, Front-End Receiver Board
(UHF Range 2, 438-470MHz)
KIT, Front-End Receiver Board
(UHF Range 3, 450-482MHz)
KIT, Front-End Receiver Board
(UHF Range 4, 482-512MHz)
KIT, Front-End Receiver Board (800 MHz)
55 1580132P01 TRAY, Mounting
56 HLD6064_ or
HLD6063_ or
HLE6051_ or
HLE6039_ or
HLE6040_
KIT, High-Power PA Board
(50-110W; VHF Range 1, 136-162MHz)
KIT, High-Power PA Board
(50-110W; VHF Range 2, 146-174MHz)
KIT, High-Power PA Board
(50-110W; UHF Range 1, 403-433MHz)
KIT, High-Power PA Board
(50-110W; UHF Range 3, 450-482MHz)
KIT, High-Power PA Board
(50-110W; UHF Range 4, 482-512MHz)
57 4280202R01 CLIP, Coaxial
58 0310911A11 SCREW, Machine
59 2680139P01 SHIELD, Harmonic Filter
60 1580208R01 COVER, Harmonic Shield
61 2680138P02 SHIELD, Power Amplifier (PA)
62 5584300B04 HANDLE, PA Shield
63 3080152M15 CABLE, Coaxial Transmitter
64 3080037R12 CABLE, Coaxial Receiver
65 HLD6061_ or
HLD6062_ or
HLE6101_ or
HLE6102_ or
HLE6103_ or
HLE6104_ or
HLF6079_
1580223N02
KIT, VCO Hybrid Board
(VHF Range 1,136-162MHz)
KIT, VCO Hybrid Board
(VHF Range 2,146-174MHz)
KIT, VCO Hybrid Board
(UHF Range 1,403-433MHz)
KIT, VCO Hybrid Board
(UHF Range 2, 438-470MHz)
KIT, VCO Hybrid Board
(UHF Range 3, 450-482MHz)
KIT, VCO Hybrid Board
(UHF Range 4, 482-512MHz)
KIT, VCO Hybrid Board (800 MHz)
COVER, VCO Hybrid (not included in item 29)
66 HLD6000_ or
HLE6046_ or
HLF6080_
Kit, VCO Board (VHF)
Kit, VCO Board (UHF)
Kit, VCO Board (800 MHz)
67 3280247N01 GASKET, VCO
68 1580097L01 COVER, VCO Board
69 0310943J15 SCREW, Tapping 3.5 x 0.6 x 8
NON-REFERENCED ITEMS
3080091M01 CABLE, Speaker
7505295B01 PAD, Crystal
7580094M05 PAD, VF Display Shock (Qty 3)
Note: _ = The latest version kit. When ordering, refer to your specific kit for this
suffix letter.
Table 11-7. High-Power (50-110W) Radio Parts List
Item
No.
Motorola
Part No.
Description

Motorola ASTRO SPECTRA Specifications

General

Frequency Range	136-174 MHz, 403-470 MHz
Number of Channels	Up to 255
Channel Spacing	12.5 kHz, 20 kHz, 25 kHz
Modulation	FM
Operating Temperature	-22°F to +140°F (-30°C to +60°C)
