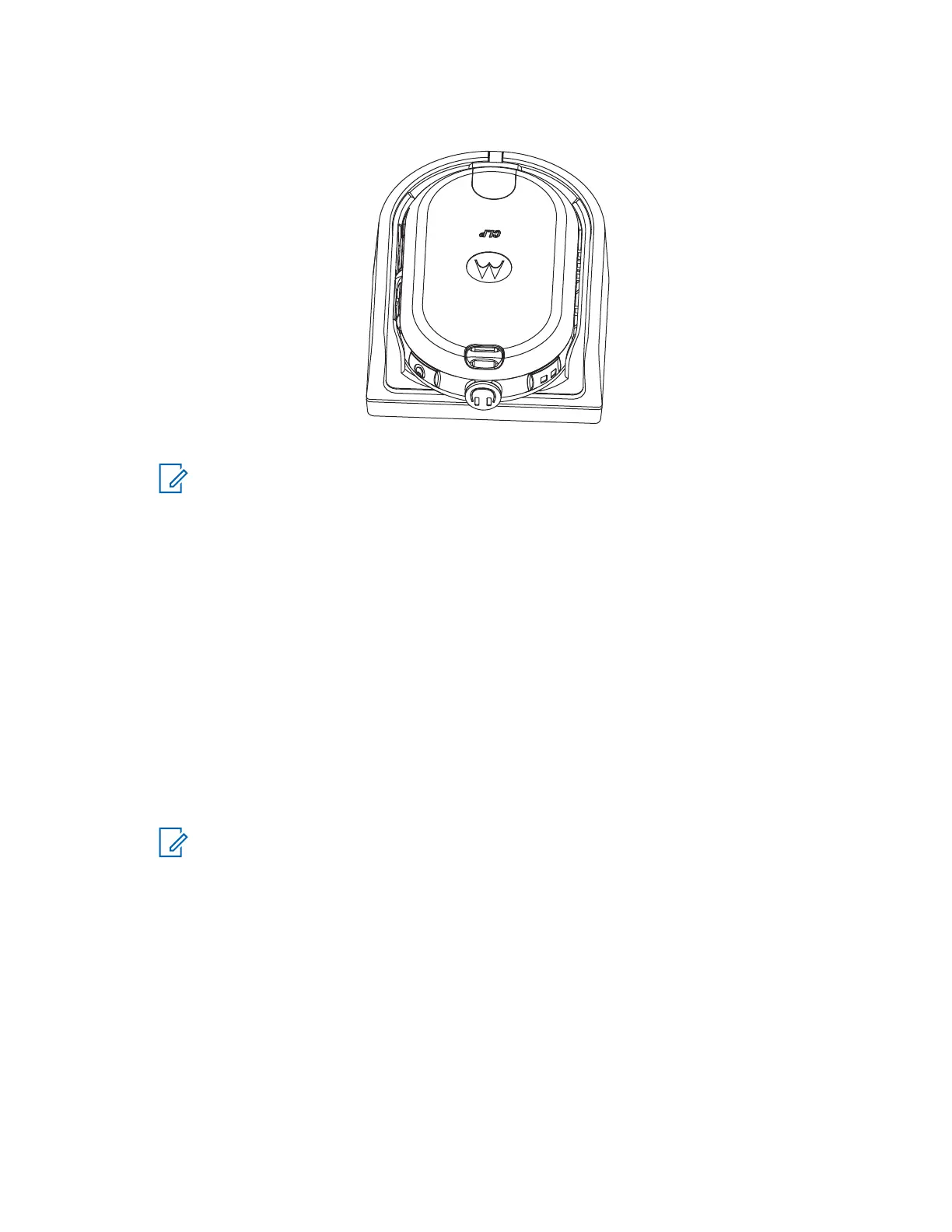

Figure 8: Charging Radio
NOTE: When charging a battery attached to a radio, turn the radio off to ensure a full
charge. The radio fits in the charger with the holster attached when placed face down in
the tray.
3.8
Charging with the Drop-In Tray MUC-Optional Accessory
The Multi-Unit Charger (MUC) allows drop-in charging of up to six radios. Each of the six charging
pockets can hold a radio with a battery installed. The MUC provides pockets for headset storage.
Procedure:
1 Place the charger on a flat surface or mount it on the wall.
2 Insert the power cord plug into the jack on the MUC.
3 Plug the cord into an AC outlet and then into the charger.
4 Turn off the radio.
5 Insert the radio facing down with battery installed into the charging pocket, ensuring that the
radio contacts are aligned with the MUC contacts.
NOTE: The battery charges on its own by using the slot on the flat surface of the
charging pocket.
68012000044-ED
Chapter 3 : Battery and Charger
24
