● The camera can be mounted to face the same direction as traffic.
● Adequate LTE cellular coverage.
3. Note the side of the road, right or left, that the mounting point is on, relative to the direction of passing
traffic.
4. Note the number of lanes being monitored, one or two.

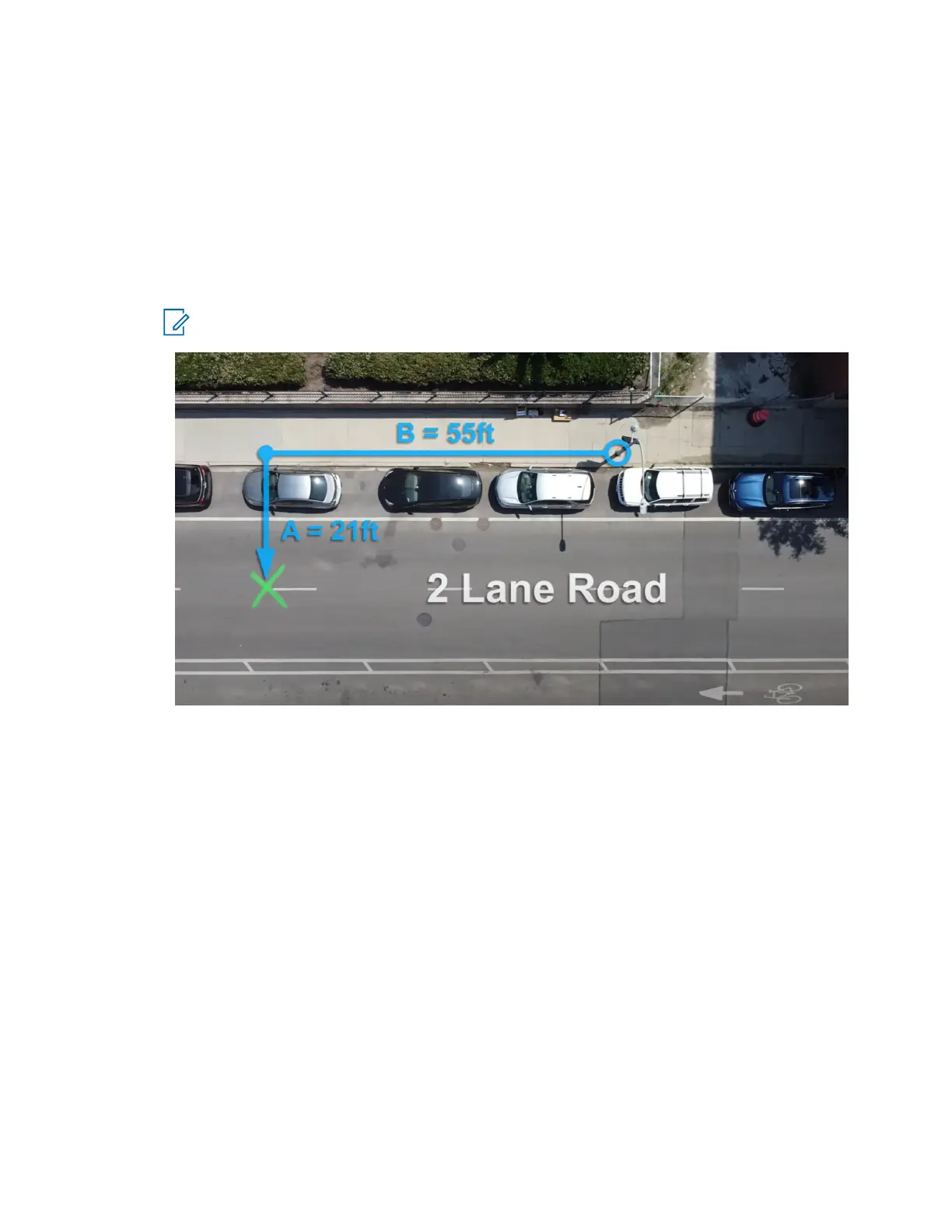

5. Use the Measuring Tool to determine and note the distance of two lines: A and B.
Line A is the distance from the camera to the road center line. Line B is the distance from the camera
to a point on the roadside next to the estimated capture point.
NOTE: The distance from the capture point to the point on the roadside is equal to the distance
of line A.
3.2
Starting the Installation Process in Mobile
Companion
Follow along with the installation process in the mobile application.
Prerequisites: To begin hardware installation, the following must be true:
● The Pre-installation and Location Scouting have been performed
● The installer is at the installation site
● An Agency Manager or Site Manager account is logged in to the Mobile Companion application
Obtain:
● L6Q Installation Kit
● Required Components and Tools for this installation
● Optional Add-ons for this installation
Procedure:
1. Connect the External Antenna to the upper port on the back of the camera.
MN010089A01-AD
Chapter 3: Hardware Installation
45
