● If this installation will use a solar deployment, tap Solar Panel.
● If this installation will use the 120V AC Power Adapter, tap AC 120v External Power.
● If this installation will use the 12V DC Power Cable, tap DC 12v External Power.
11. Observe the Pre-Installation Checklist and tap Next.
12. Observe the Pre-Installation Reminder and tap Next.
13. Tap Continue Full Installation.
14. Tap Begin Installation.
15. Go to the section for the power option selected:
● If Internal Battery Only was selected. go to Camera Installation.
● If Solar Panel was selected, go to Solar Panel Installation.
● If AC 120v External Power was selected, go to Installing AC Power.
● If DC 12v External Power was selected, go to Installing DC Power.
3.3
Solar Panel Installation
The solar panel assembly and mounting process with be different depending on the solar panel deployment
options ordered. Solar Panels can be mounted to a pole with the Metal Band Straps, or to a surface with the
Lag Bolts. Before installation, the Solar Panel Battery must be fully charged.

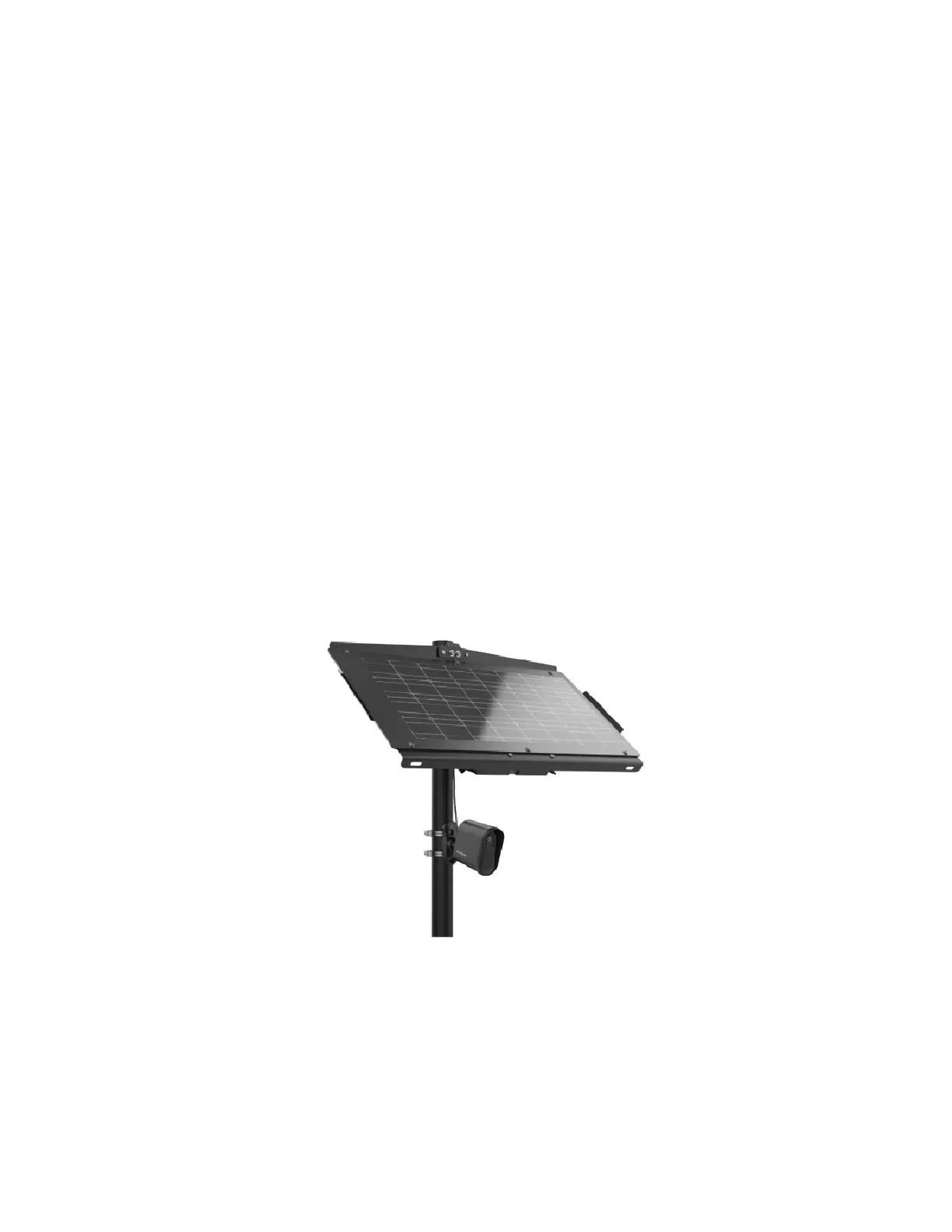

Figure 11: Single Solar Panel Deployment
MN010089A01-AD
Chapter 3: Hardware Installation
47
