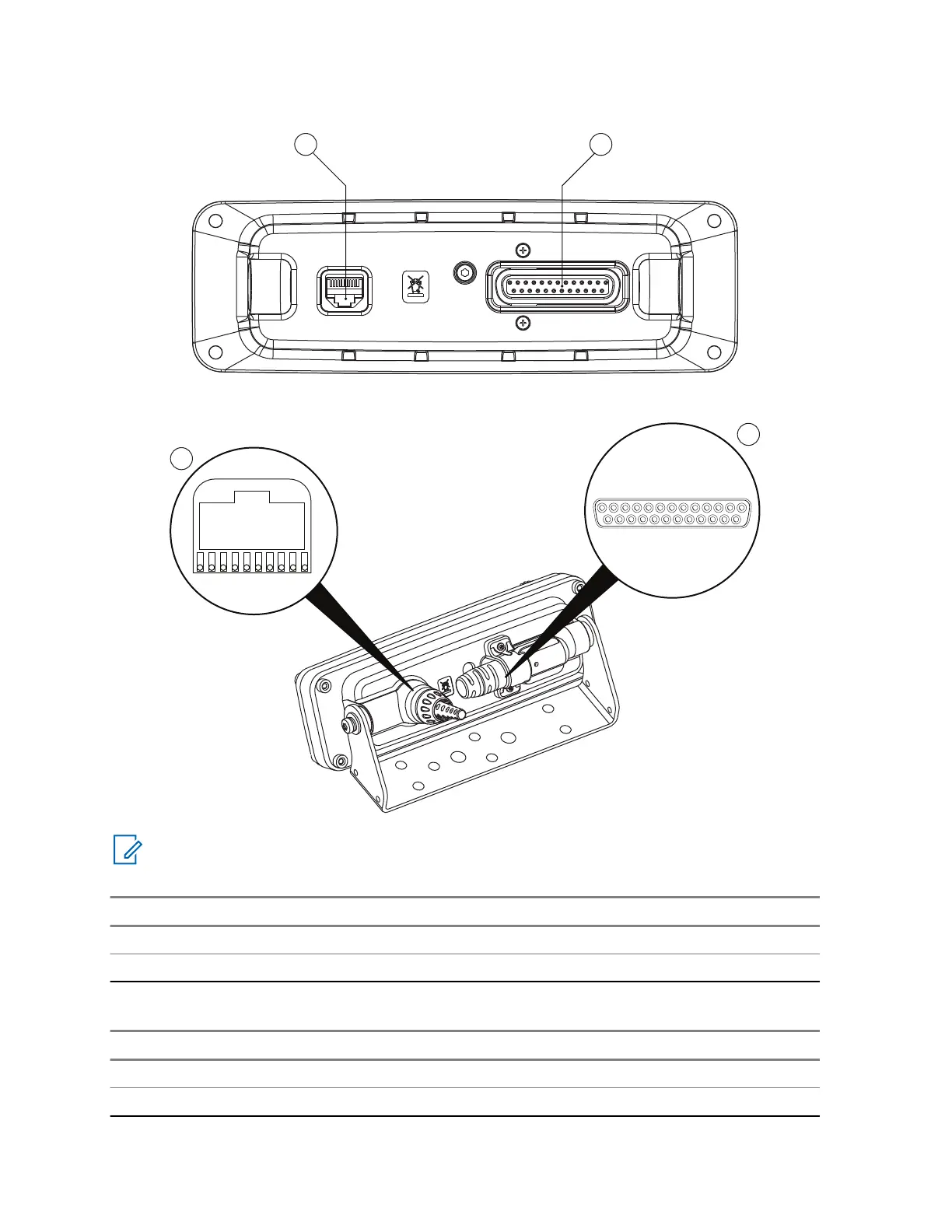

Figure 62: Remote Enhanced Control Head – Rear View
Figure 63: Enhanced Motorcycle Control Head – Rear Connectors
10
9 8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
1
2
NOTICE: Connectors on the Motorcycle Enhanced Control Head, and Remote Enhanced
Control Head are the same. The housings and the cables are different.
Number Description
1 10-Pin Telco Connector
2 25-Pin Back Connector
Table 57: 10-Pin Telco Connector
Pin Function Description
1 AUDIO + Balanced Audio + (Bidirectional)
2 NC Not Connected
Table continued…
68015000181-LB
Chapter 5: Connectors and PIN Assignment
