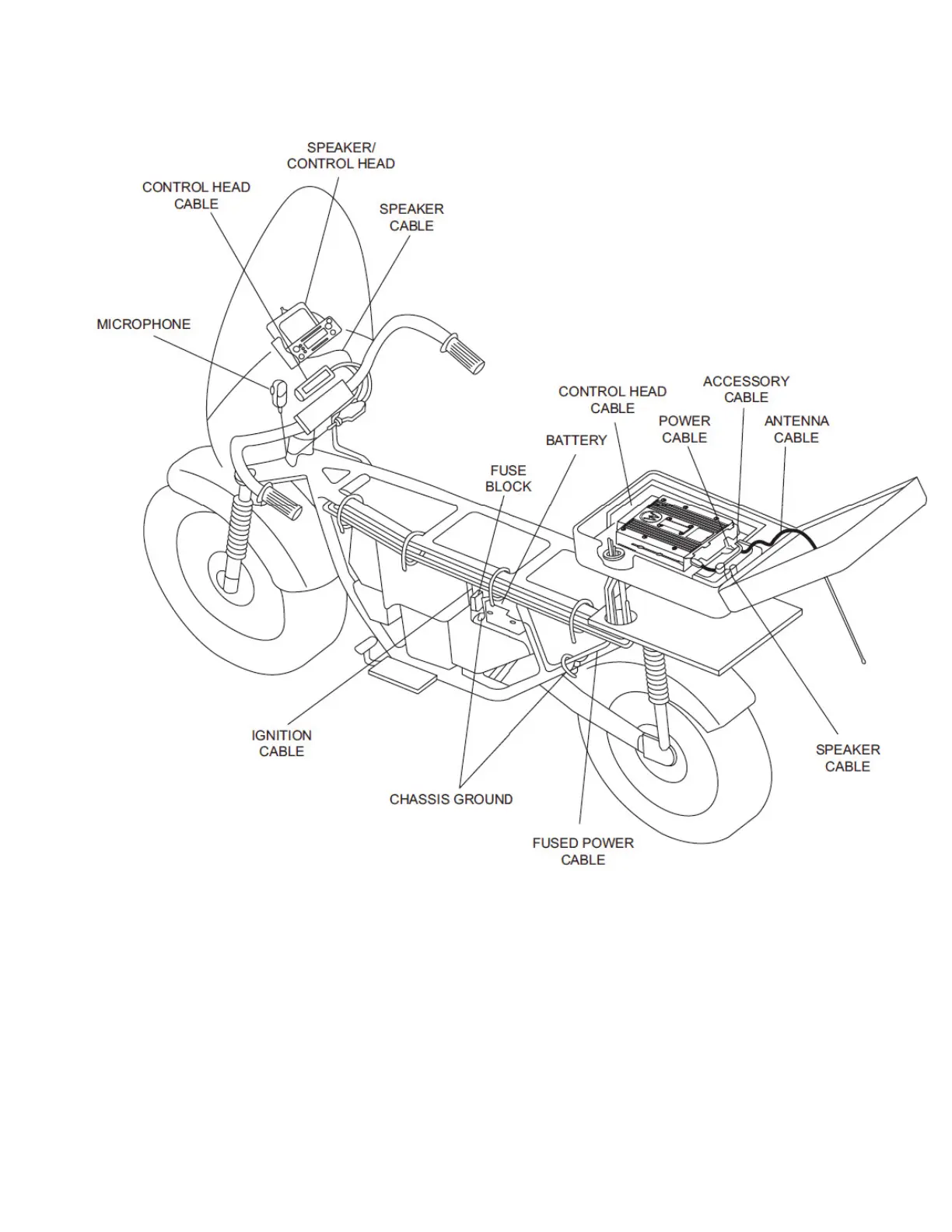

Figure 35: Motorcycle Installation
10 Slide the Motorcycle Mount Enhanced Control Head onto the mounting trunnion until it snaps
into place.
11 Tighten the screws at both sides of the trunnion. After a few turns, tilt the Motorcycle Mount
Enhanced Control Head for an optimum view of the display. Then, complete the tightening of the
screws.
12 There are two ways to mount the motorcycle trunnion, each limited to a 77 degree of allowable
movement, as shown in the following picture.
68015000181-LB
Chapter 4: Radio Installation
Send Feedback 75
