4.6.10

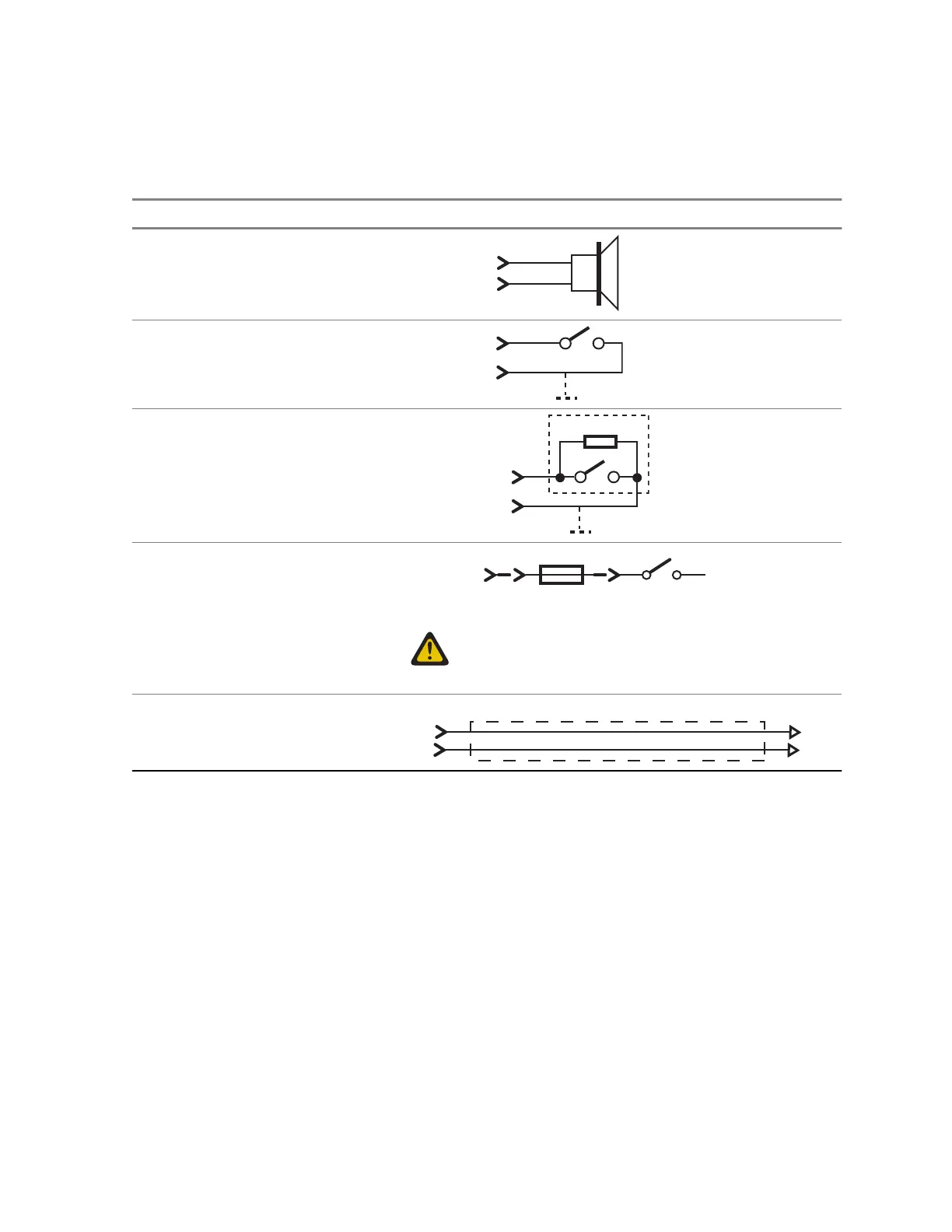

Connection Plan for Accessory Connector Kit
Table 49: Accessory Connector Kit – Cable Connectivity
Part Number/Description Cable Connectivity
GMSN4066_ Speaker 13 W
GMSN4078_ Speaker 5 W
SPKR- 9
SPKR+ 10
RLN4857_ Push button PTT
RLN4858_ Gooseneck PTT
EXT_PTT 17
GND 8
RLN4836_ Tri-State Emergency
Footswitch and Cable
Emergency 23
12k
GND 8
PMKN4120_ Ignition Sense Cable
4A
+12V
Ignition 25
Car
Ignition Switch
CAUTION: HKN9327_ Ignition Sense Cable: If
the ignition line is not used, it needs to be ground-
ed. Interference can cause radio to hang.
GMKN4084_ Speaker Extension
Cable
9
10
5m
Table continued…
68015000181-LB
Chapter 4: Radio Installation
Send Feedback 87
