2 Make sure that sufficient air can flow around the terminal to permit adequate cooling.
3 Choose a flat surface for the desktop tray and external loudspeaker.
4 Be sure that the mounting surface is able to adequately support the weight of the terminal and
tray.
5 In case of an outdoor antenna, choose a location for the terminal as close as possible to the
antenna cable inlet of the building. Make sure that the installation of the surge protector is in
accordance with the manufacturer specifications and safety hints. The line voltage power supply
shall be grounded properly.

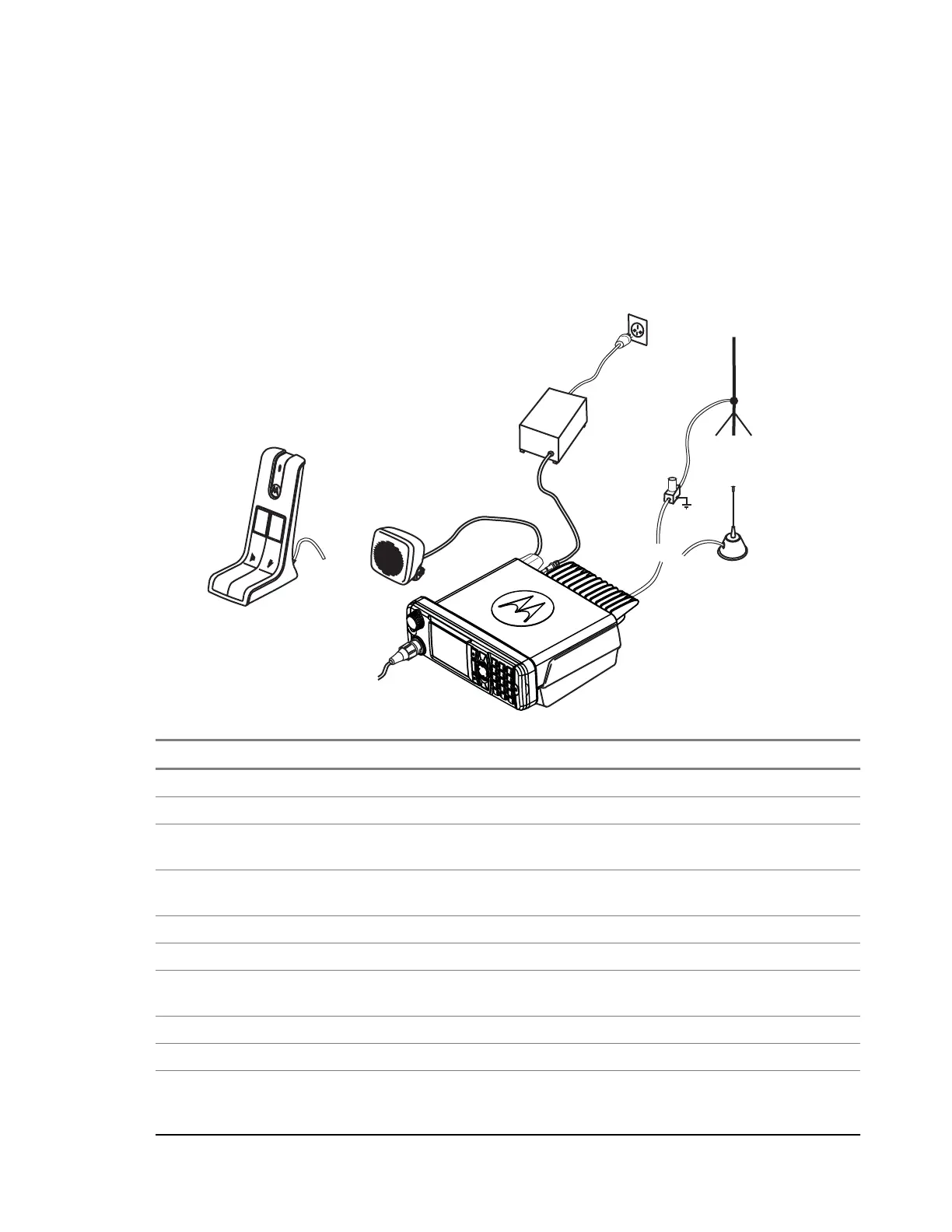

Figure 6: Typical Desktop Mounting
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
1
2
3
4
5
Number Description Part Number
1 Desk Microphone RMN5106_
2 Loudspeaker RSN4002_, RSN4003_, or RSN4004_
3 DC Power Cable GKN6266_ or PMKN4165_ (for use with
PMPN4055_ or PMPN4076_)
4 Power Supply GPN6145_, HPN4007_, PMPN4055_, or
PMPN4076_
5 Line Cord with Ground
6 Wall Outlet
7 Desktray or Desktray with inbuilt Loud-
speaker
GLN7318_ or RSN4005_
8 Antenna Cable
9 Antenna Connector BNC
10, 11,
12
Typical Antennas: Lighting Protector with
Quarter-Wave Shorting Stub, Outdoor
Antenna, Indoor Antenna
68015000181-LB
Chapter 4: Radio Installation
