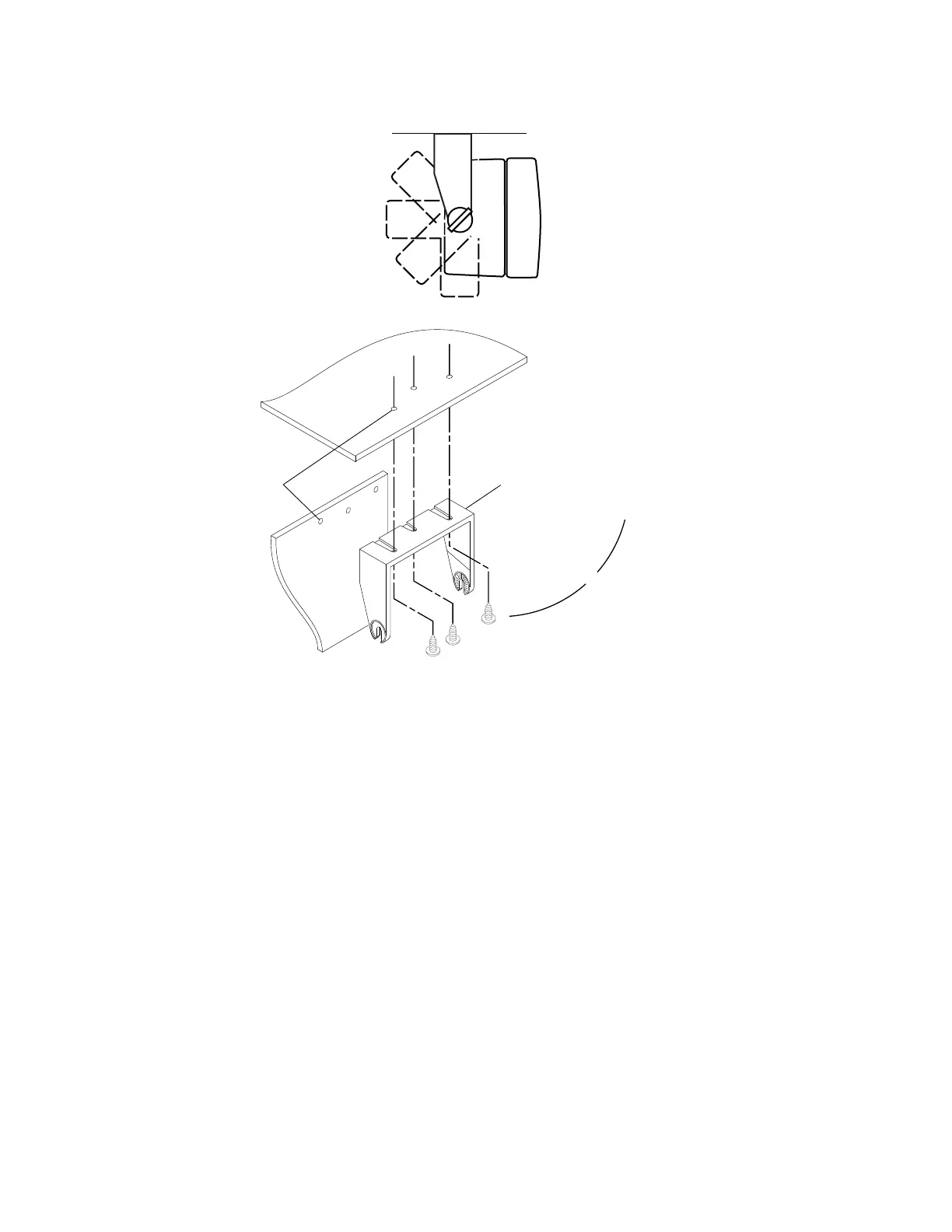

Figure 78: External Speaker Trunnion Bracket
FL0830253-O
5 Mount the trunnion bracket with the screws supplied.
6 Insert the speaker into the trunnion bracket and tighten the two wing screws.
7 Insert the external speaker accessory plug into the accessory connector of the radio.
68015000181-LB
Chapter 6: External Equipment Installation
122 Send Feedback
