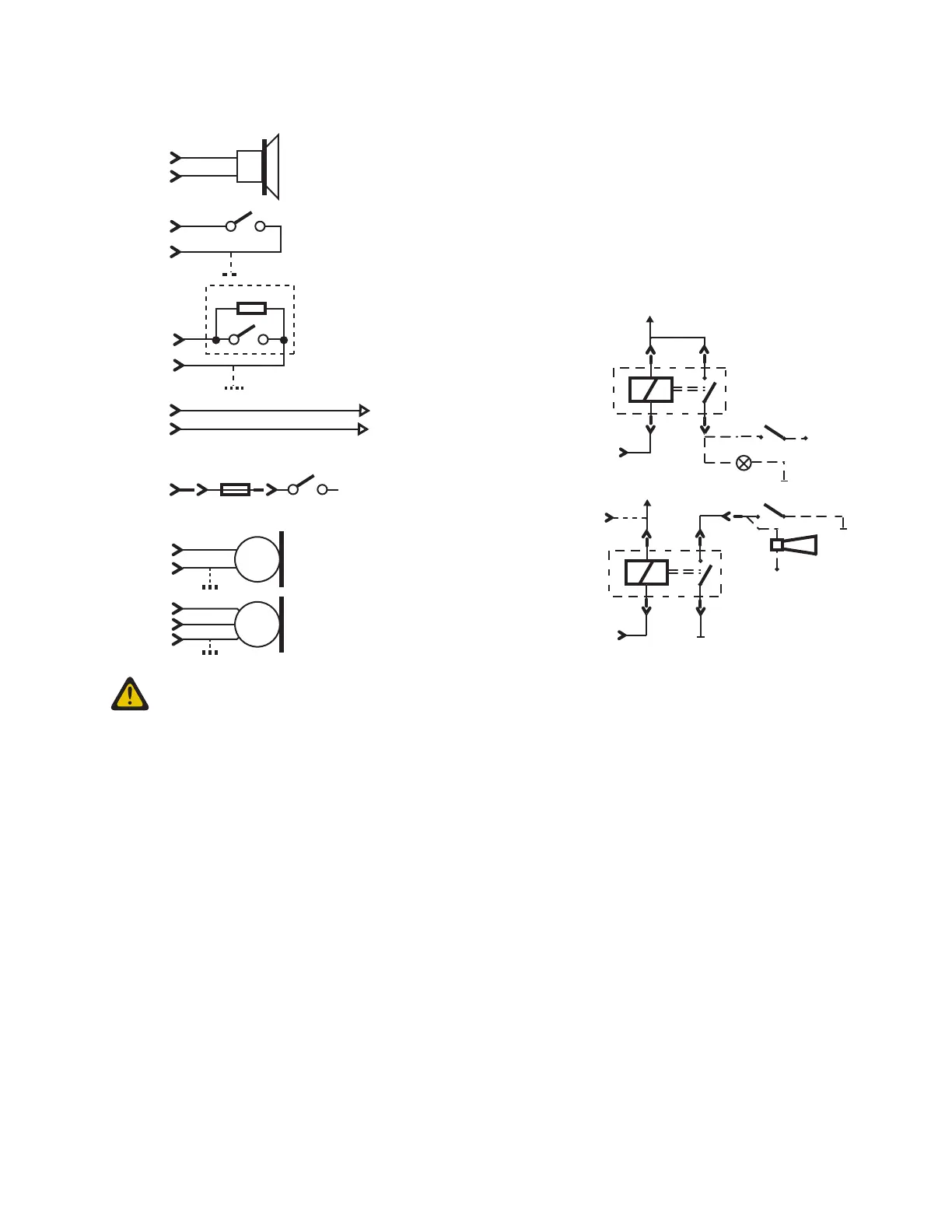

Figure 56: Connecting Diagrams
86
85
87
30
+12 V
EXT_ALARM 26
86
85
87
30
+12 V
EXT_ALARM 26
+12 V
+12 V
SWB+ 7
EXT_PTT 17
GND 8
EMERGENCY 23
12k
GND 8
RSN4002 Speaker 13 W
RSN4004 Speaker 5 W
RLN4857 Pushbutton w/Remote PTT
RLN4858 Gooseneck PTT
RLN4836 Tri-state Emergency
Footswitch and Cable
GMLN5091 External Alarm Relay Kit containing:
GKN6272 External Alarm Relay and Cable
PMLN5072 Accessory Connector Kit
4 A
PMKN4119 Speaker Extension Cable
PMMN4087 Visor Microphone w/ cable
GMMN4065
RMN5054
HKN9327 Ignition Sense Cable w/ fuse
Car Ignition
Switch
PMLN5072 Accessory connector kit containing:
1516174H01 Accessory Connector 26-pin
3915560H01 Crimp Contact 20-24 AWG (quantity 27)
4210217A02 Nylon Tie Rap
6671929L01 Service Tool
The recommended crimp tool (not part of PMLN5072):
SamTec P/N: CAT-HT-179-2024-11910910
SPEAKER + 9
SPEAKER - 10
MIC1/EXT_MIC 13
GND_MIC 16
SPEAKER + 9
SPEAKER - 10
IGNITION 25
9
10
+12 V/
+24 V
MIC1/EXT_MIC 13
GND_MIC 16
1-WIRE 5
CAUTION: HKN9327_ Ignition Sense Cable: If the ignition line is not used, it needs to be
grounded. Interference can cause radio to hang.
5.3
Re-crimp Procedure
To use accessories from MTM800 such as RLN4858_ and GKN6272_ with the rear connector of the
radio, follow the re-crimp procedure using the crimp pins provided with PMLN5072_ connector kit.
These accessories do not require to be re-crimped when used with the Data Junction Box
GMLN5089_.
Process:
1 Cut and remove nickel plated pins from wire.
2 Strip the insulation from the end of the wires (2 mm to 4 mm).
3 Place the new gold plated crimp pin (from the PMLN5072_ kit) on the gauge slot on the crimp
tool.
4 Insert wire into the wire slot of the crimp pin.
5 Apply pressure to the crimp tool handle, until wire is crimped by the pin.
68015000181-LB
Chapter 5: Connectors and PIN Assignment
96 Send Feedback
