MOTOROLA
MC68030 USER’S MANUAL
5-1
SECTION 5
SIGNAL DESCRIPTION
This section contains brief descriptions of the input and output signals in their functional
groups, as shown in Figure 5-1. Each signal is explained in a brief paragraph with reference
to other sections that contain more detail about the signal and the related operations.

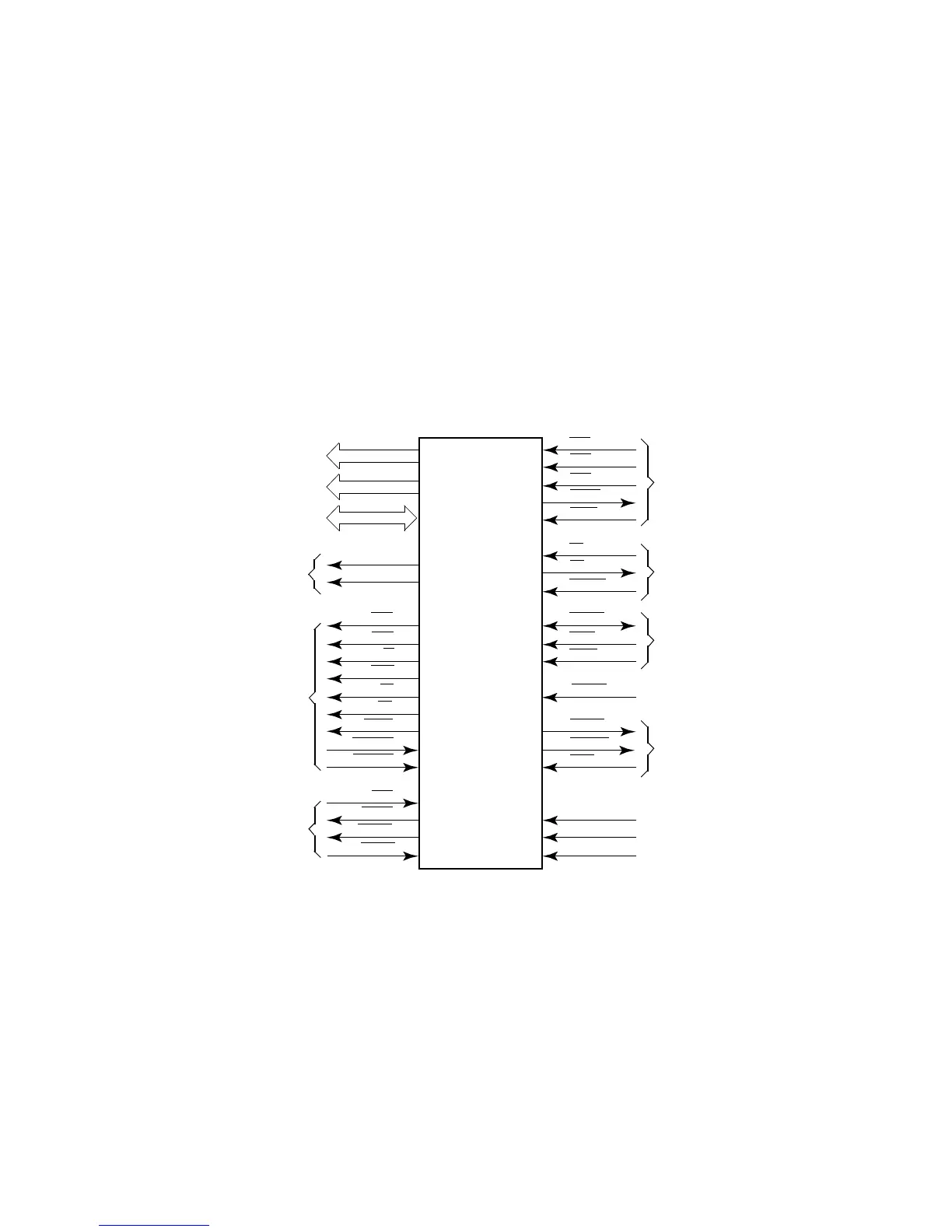

Figure 5-1. Functional Signal Groups
DSACK0
FUNCTION CODES
ADDRESS BUS
TRANSFER
SIZE
ASYNCHRONOUS
BUS CONTROL
CACHE
CONTROL
EMULATOR
SUPPORT
SYNCHRONOUS
BUS CONTROL
BUS EXCEPTION
CONTROL
BUS ARBITRATION
CONTROL
INTERRUPT
CONTROL
FC2-FC0
A31-A0
D31-D0
SIZ0
SIZ1
OCS
ECS
R/W
RMC
AS
DS
DBEN
DSACK1
CIIN
CIOUT
CBREQ
CBACK
GND (14)
CLK
CDIS
STATUS
REFILL
STERM
BERR
HALT
RESET
IPL0
IPL1
IPL2
IPEND
AVEC
BR
BG
BGACK
V (10)
CC
DATA BUS
MC68EC030
117
119
