Removing and Replacing the Antenna
1. Remove the battery cover, battery, SIM, and rear housing assembly as
described in the procedures.
2. Use the metal tweezers to grasp the rubber antenna grommets and carefully
remove them from the antenna assembly. See Figure 9. Set the rubber
grommets aside for reuse.
070589o

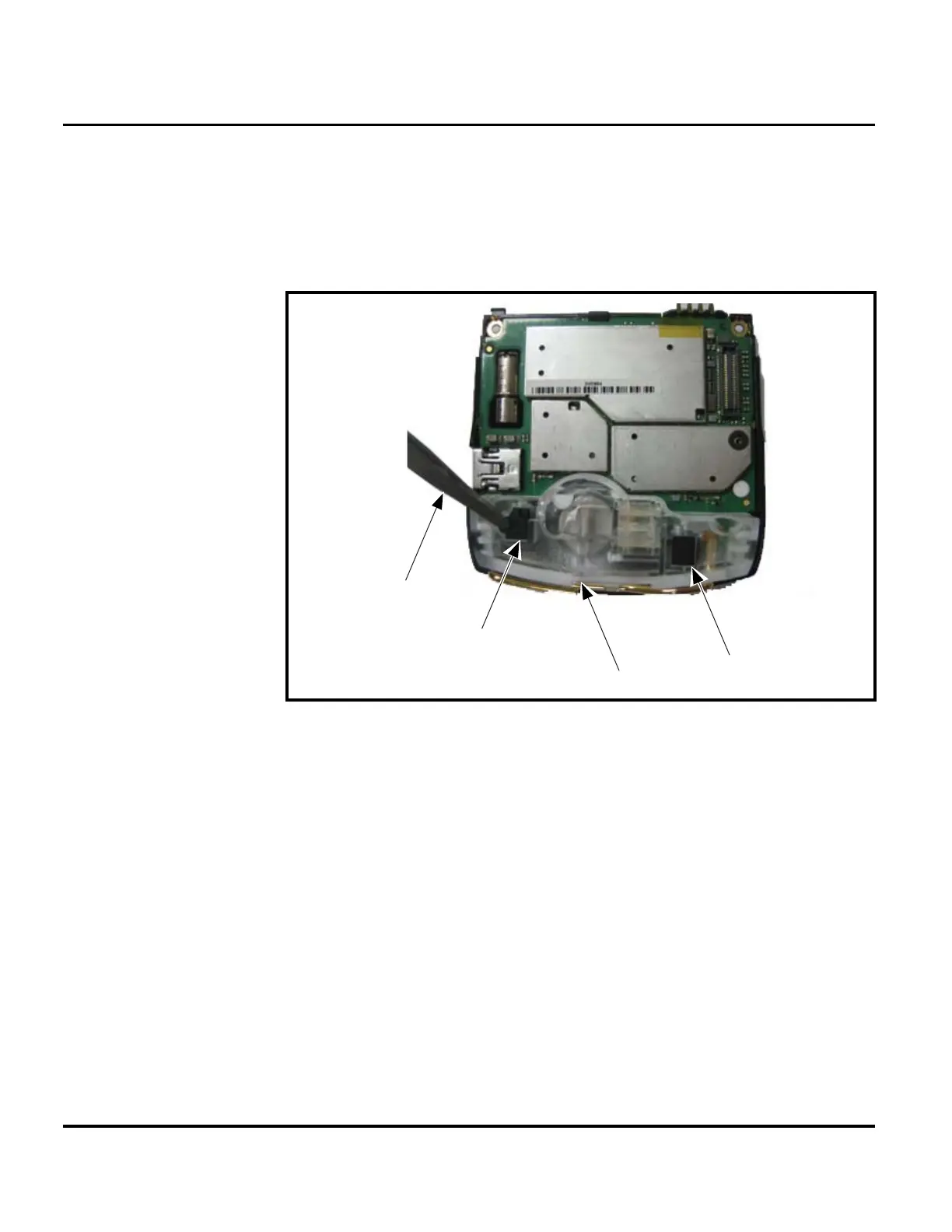

Figure 9. Removing the Antenna Grommets
Antenna
Assembly
Grommet
Tweezers
Antenna
Assembly
Grommet
Antenna
Assembly
