10 - 58 Symbol DS9808 Product Reference Guide

Postal Codes

US Postnet

Parameter # 59h

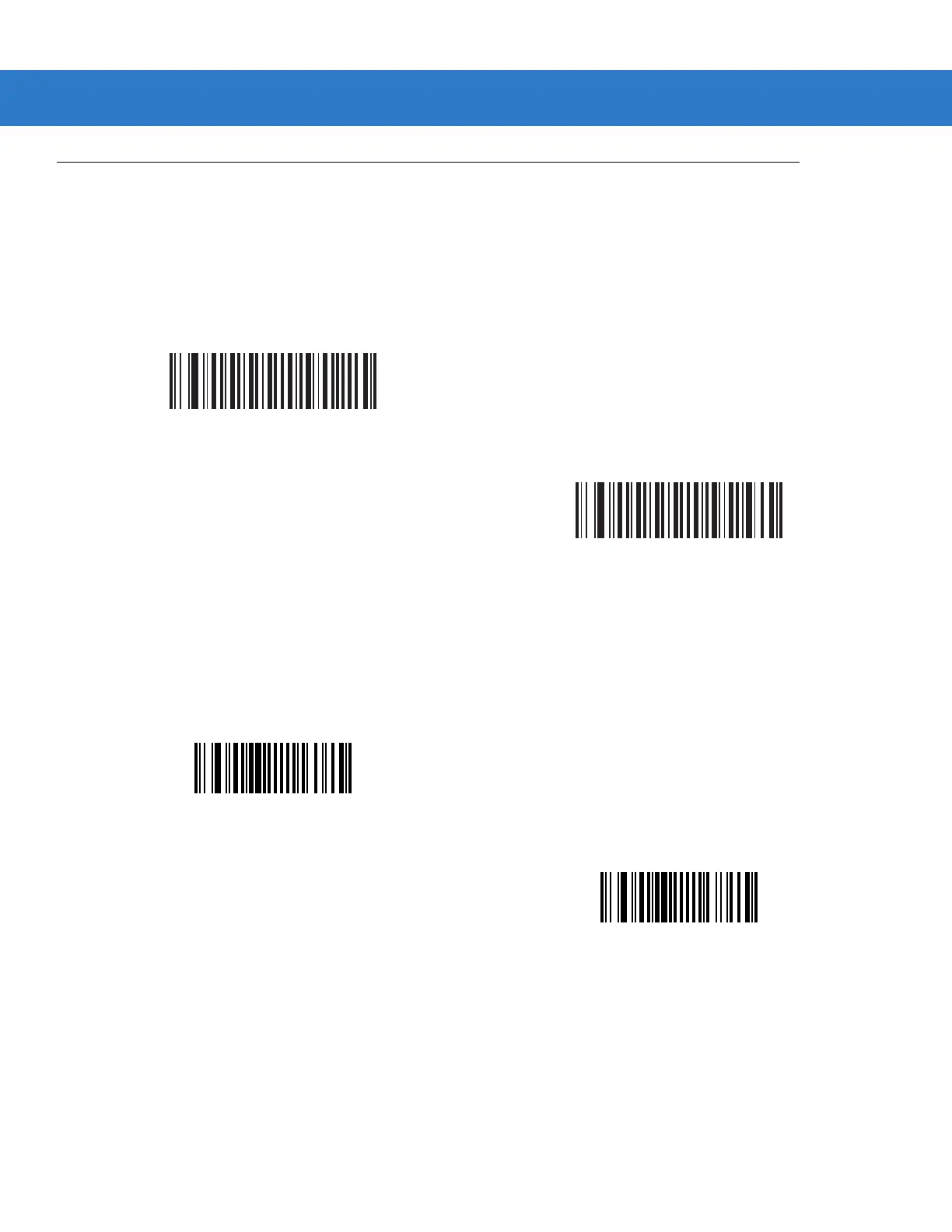

To enable or disable US Postnet, scan the appropriate bar code below.

US Planet

Parameter # 5Ah

To enable or disable US Planet, scan the appropriate bar code below.

Enable US Postnet

(01h)

*Disable US Postnet

(00h)

Enable US Planet

(01h)

*Disable US Planet

(00h)
