5.7 Radio Reassembly - Detailed
5.7.1 Bluetooth GPS Antenna and Emergency Button Reassembly
1. Slide in the Bluetooth GPS antenna and affix the screw.

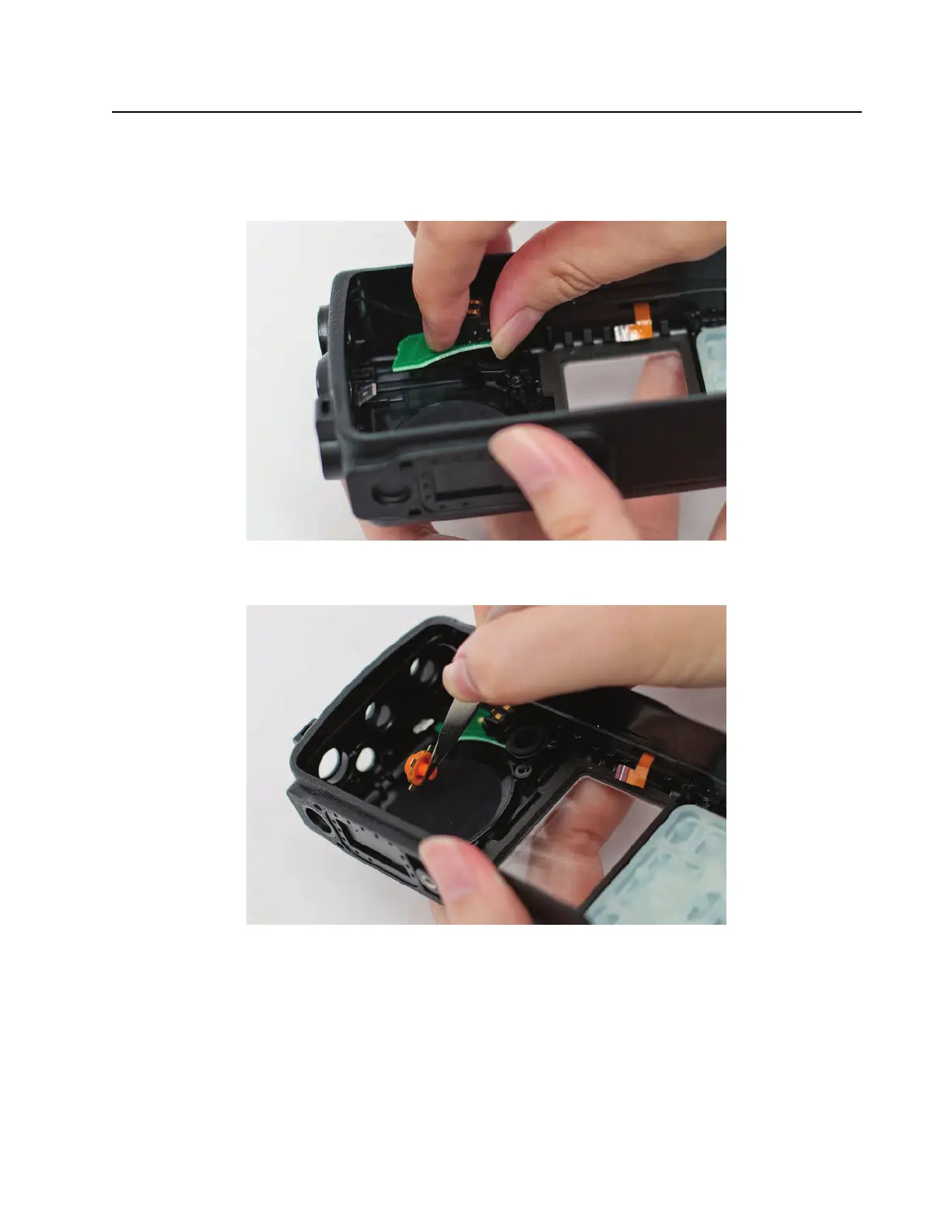

Figure 5-26. Bluetooth GPS antenna reassembly
2. Insert the emergency button into the proper slot.
Figure 5-27. Emergency button reassembly
