Disassembly/Reassembly Procedures Radio Disassembly – Detailed 5-17
5.6.4 Speaker and Universal Connector Flex Disassembly

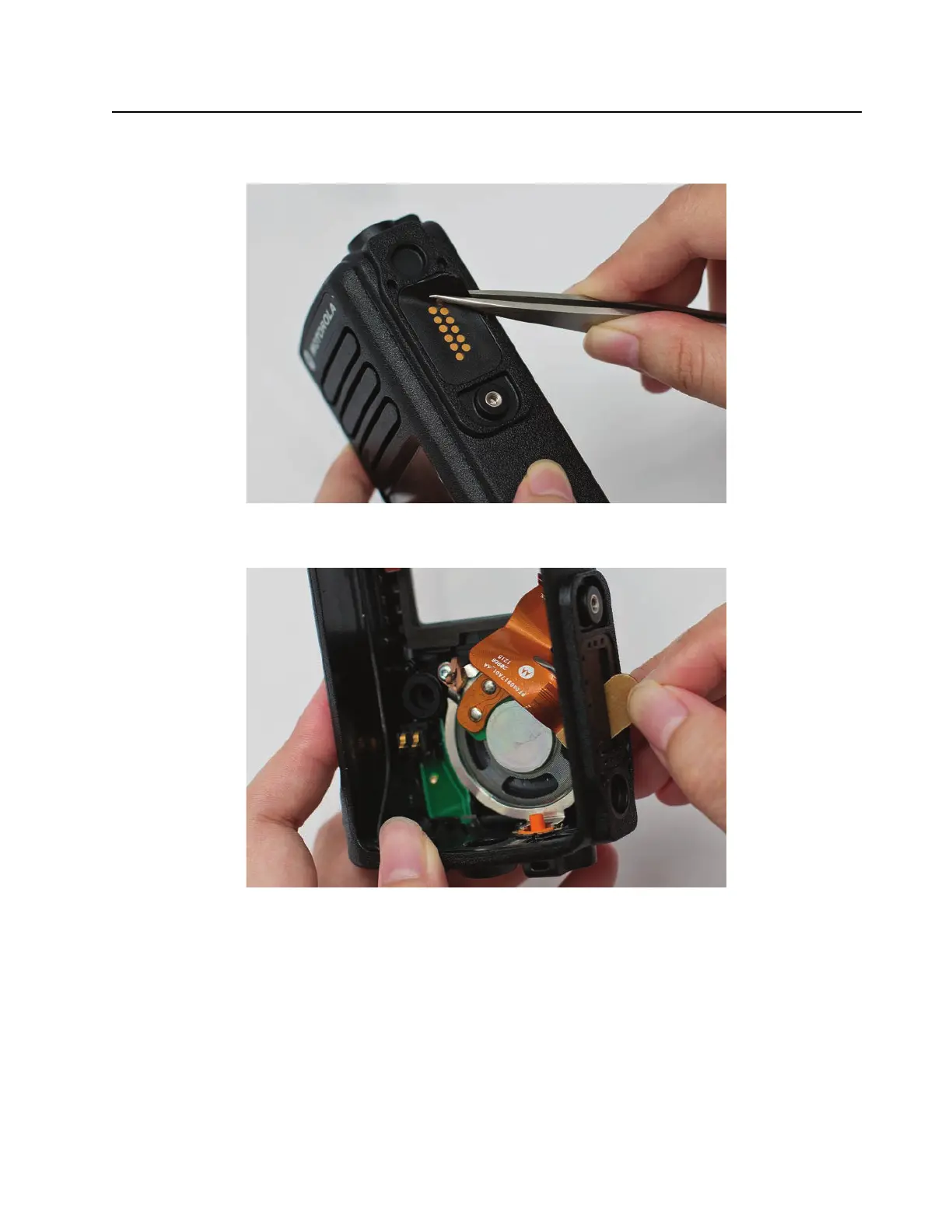

1. Peel off the UC escutcheon with a tweezer.
Figure 5-20. UC escutcheon removal
2. Gently pry out the UC flex circuit and push it into the front housing through the UC slot.
Figure 5-21. UC flex removal
