5-16 Disassembly/Reassembly Procedures Radio Disassembly – Detailed
5. Unlatch and remove the LCD flex. Remove the four screws holding the keypad board and lift
it out from the front housing.

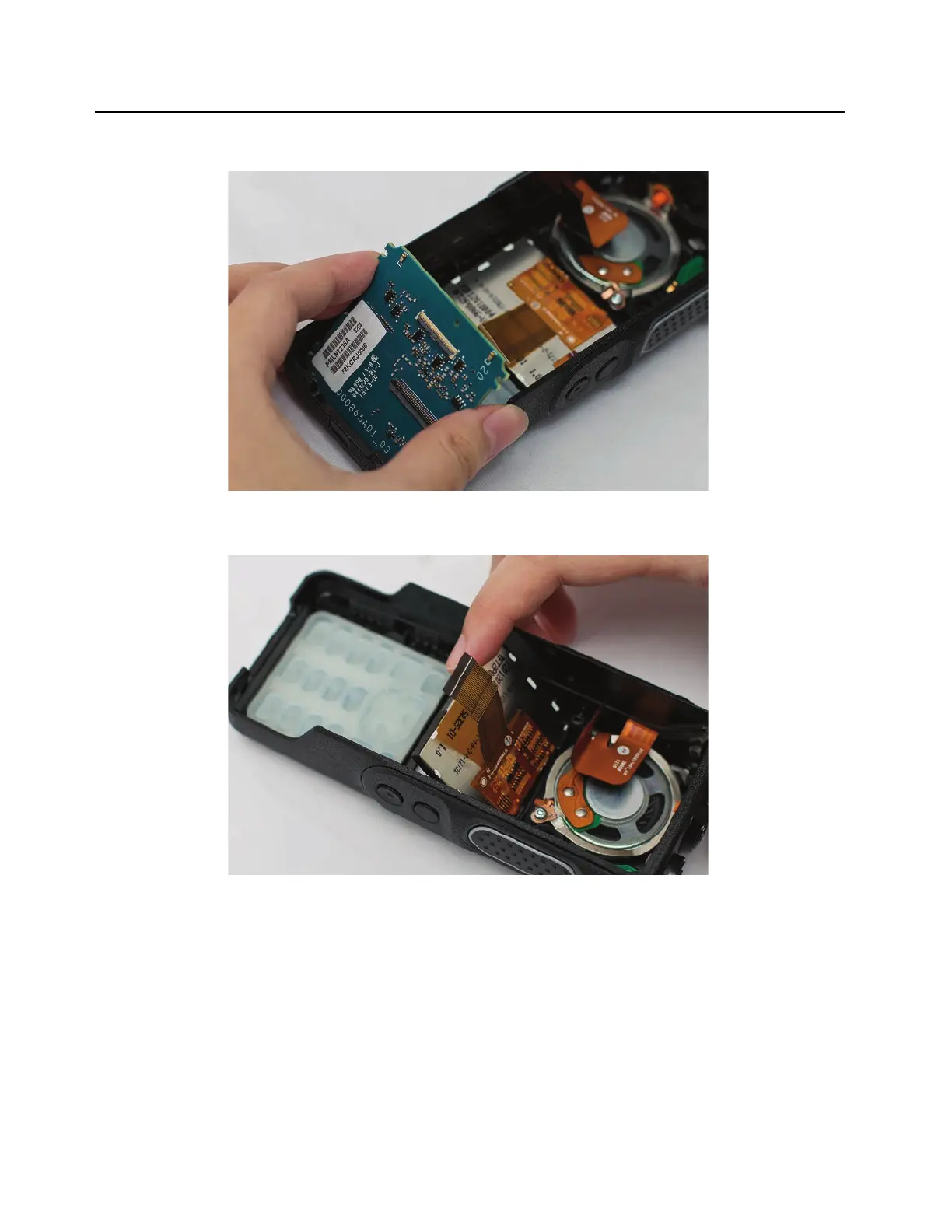

Figure 5-18. Keypad board removal
6. Gently lift out the display module.
Figure 5-19. Display module removal
