Disassembly/Reassembly Procedures Radio Disassembly – Detailed 5-15

3. Use a tweezer to disconnect the PTT flex.

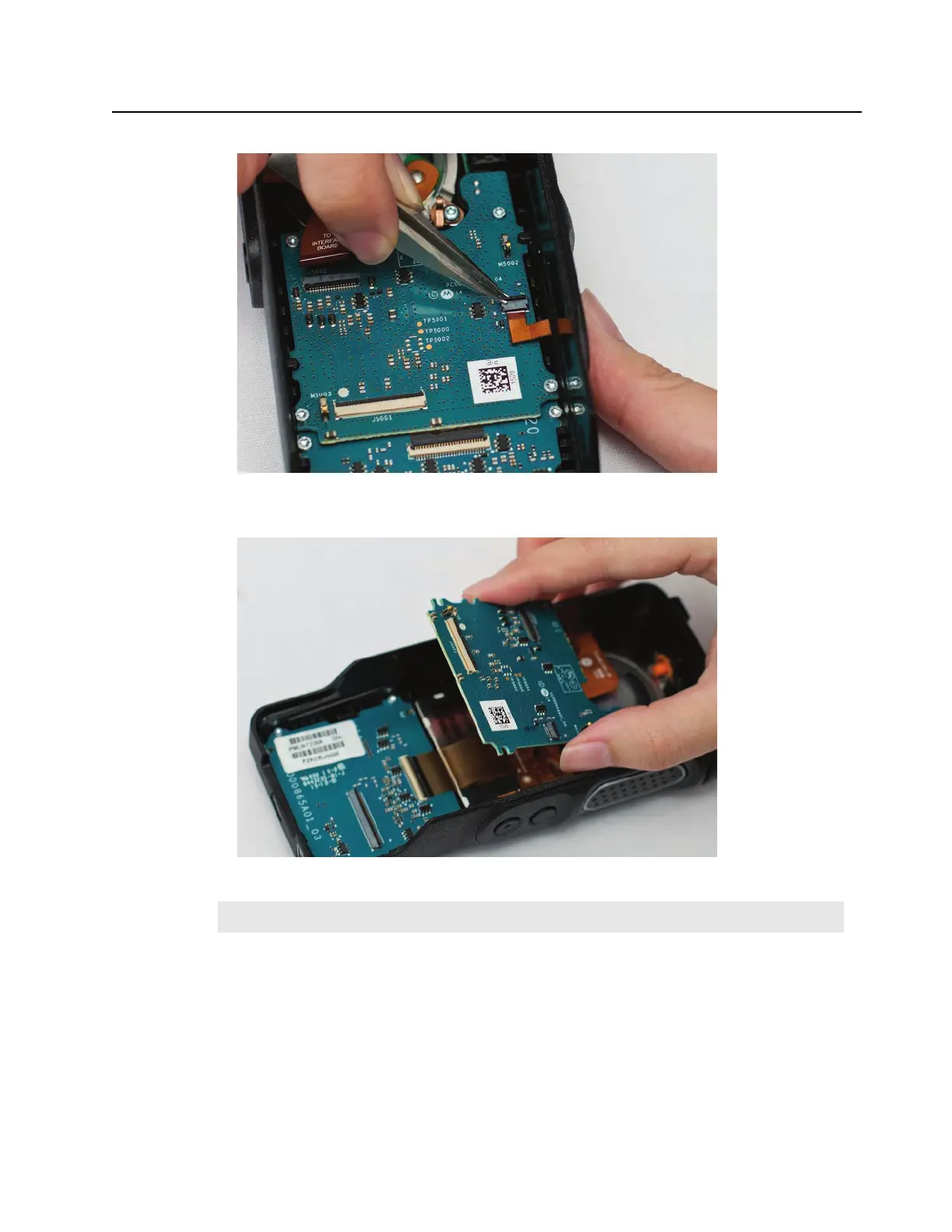

Figure 5-16. PTT flex removal

4. Remove the four screws and gently lift out the interface board from the front housing.

Figure 5-17. Interface board removal

NOTE

Ensure the mic boot is removed from the front housing.
