Disassembly/Reassembly Procedures Radio Reassembly - Detailed 5-29
5.7.5 Chassis and Front Cover Reassembly
1. Connect the keypad flex and interface flex to the main board.

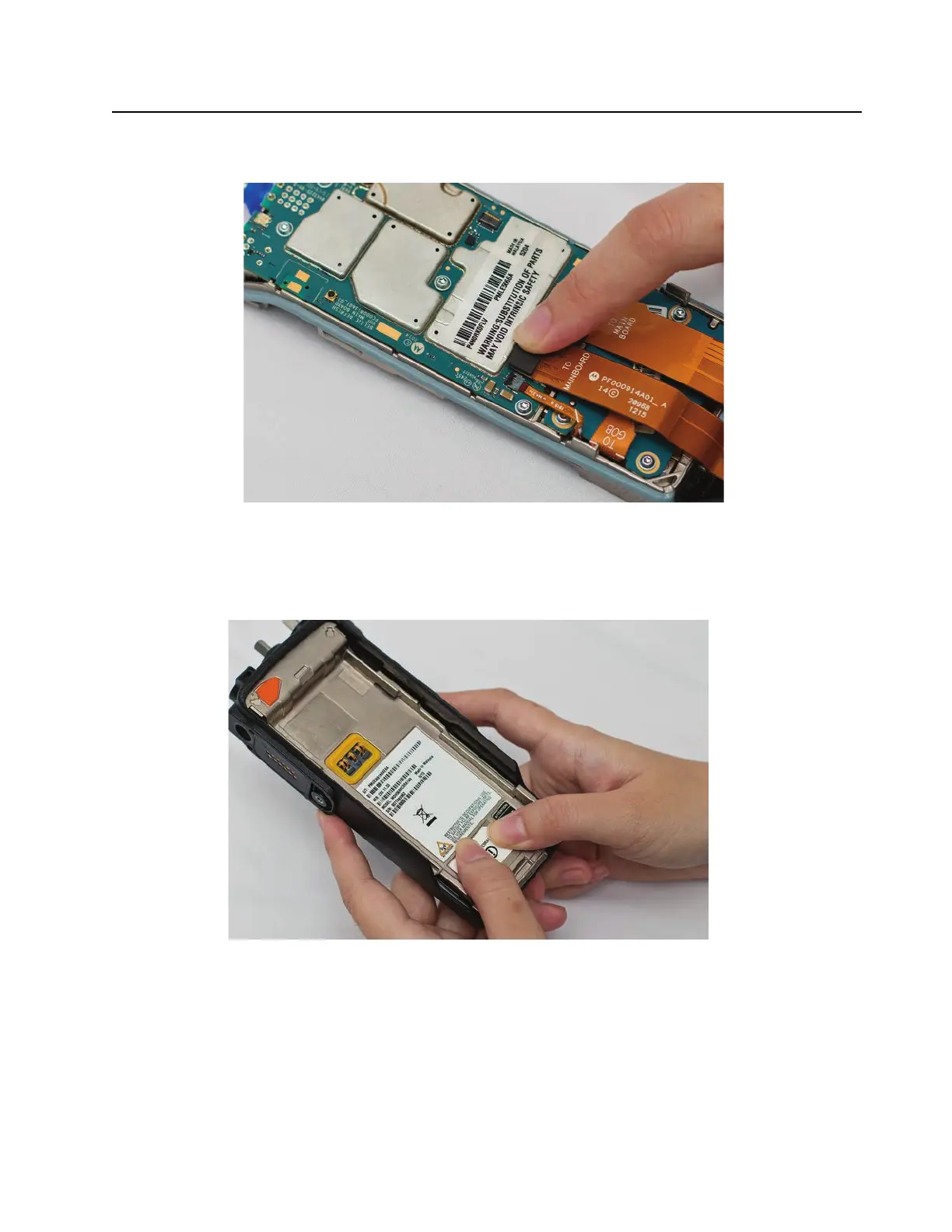

Figure 5-38. Main board connectors.
2. Apply grease to the full perimeter of the chassis’s O-Ring.
3. Insert top chassis tabs into the recesses on front cover and the tabs are fully inserted.
4. Gently push down the chassis into the front cover until it snaps in place.
Figure 5-39. Chassis reassembly
5. Insert knobs, antenna, shroud and battery.

Motorola XPR 7550e Specifications

General

Channel Capacity	1000 channels
IP Rating	IP68
Power Output	VHF: 1-5W, UHF: 1-4W
Digital Protocol	DMR
Bluetooth	Yes
GPS	Yes
Frequency Range	VHF: 136-174 MHz
Display	Full color 5-line display
Dimensions	5.1 x 2.2 x 1.4 in (130 x 55 x 36 mm)
