30
There are three blades on your Robotic Mower which are mounted onto the blade disc. These blades may last
up to 3 months (if no obstacles have been hit). Please remember to replace all three blades at the same time for
best balance and cutting performance.

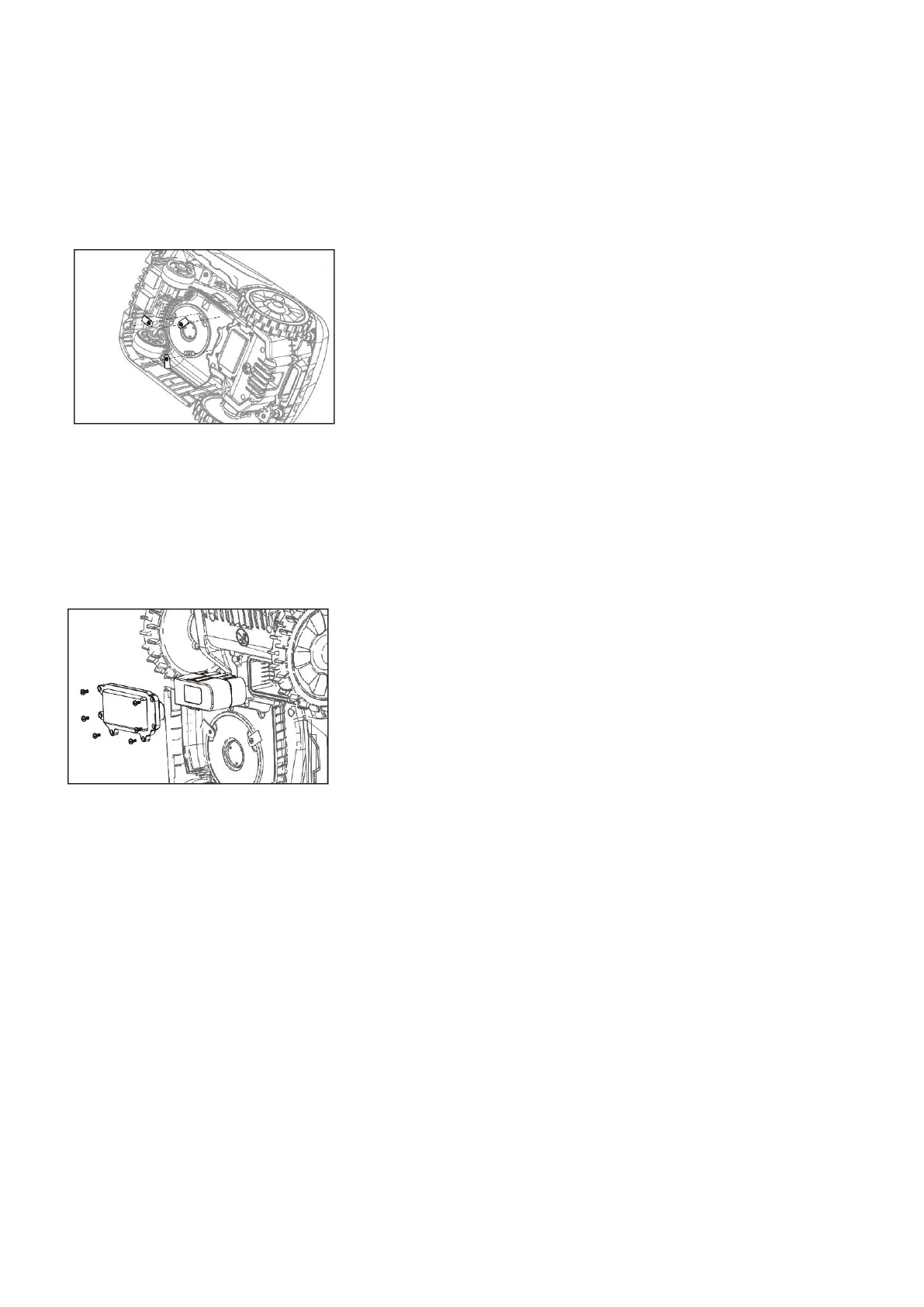

6.4.4 Replace the blades
Use a screwdriver to remove each of the mounting screws and blades. Then replace each blade and firmly re-
screw. Please make sure your newly assembled blades can spin freely.
6.4.5 Replacing the battery
Step 1 - Adjust the cutting blade holder to the lowest working height.
Step 2 - Disassemble 6 fixing screws from the bottom.
Step 3 - Pull out the battery.
Step 4 - Install the new battery, replace the battery pack cover and secure with the 6 screws. The old battery should
be recycled correctly.
ONLY USE ORIGINAL MOWBOT REPLACEMENT BATTERIES.
