Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
120

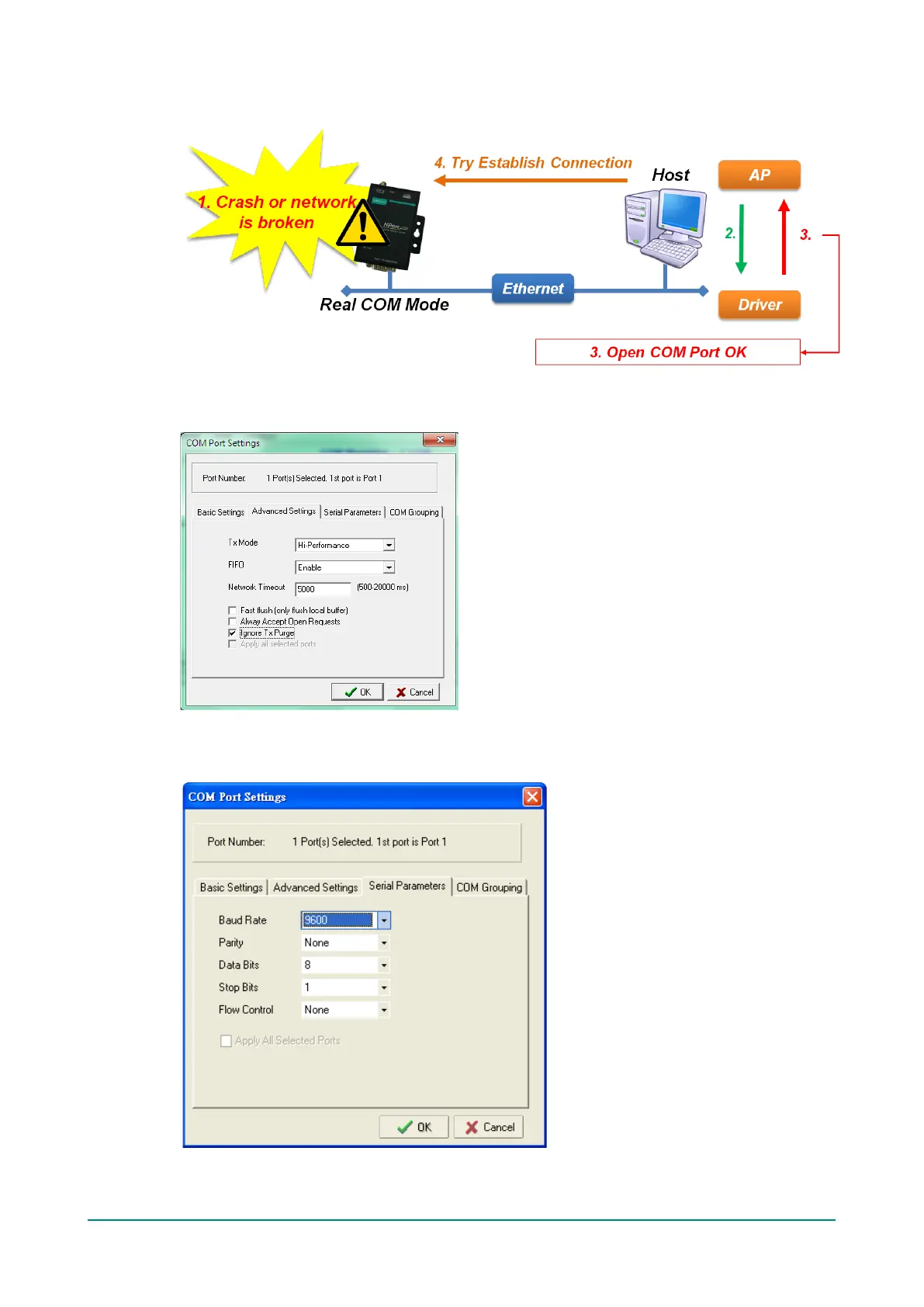

Always Accept Open Requests: Even the driver cannot establish the connection to NPort, user's
software still can open the mapped COM port just like a onboard COM port.
Ignore TX Purge: The application can use Win32 API PurgeComm to clear the output buffer and
terminate outstanding overlapped write operations. Select Ignore TX Purge if you do not want the
output buffer to be purged.
7. The Serial Parameter settings shown here are the default settings when the NPort is powered on.
However, the program can redefine the serial parameters to different values after the program opens
the port via Win 32 API.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
