Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
121

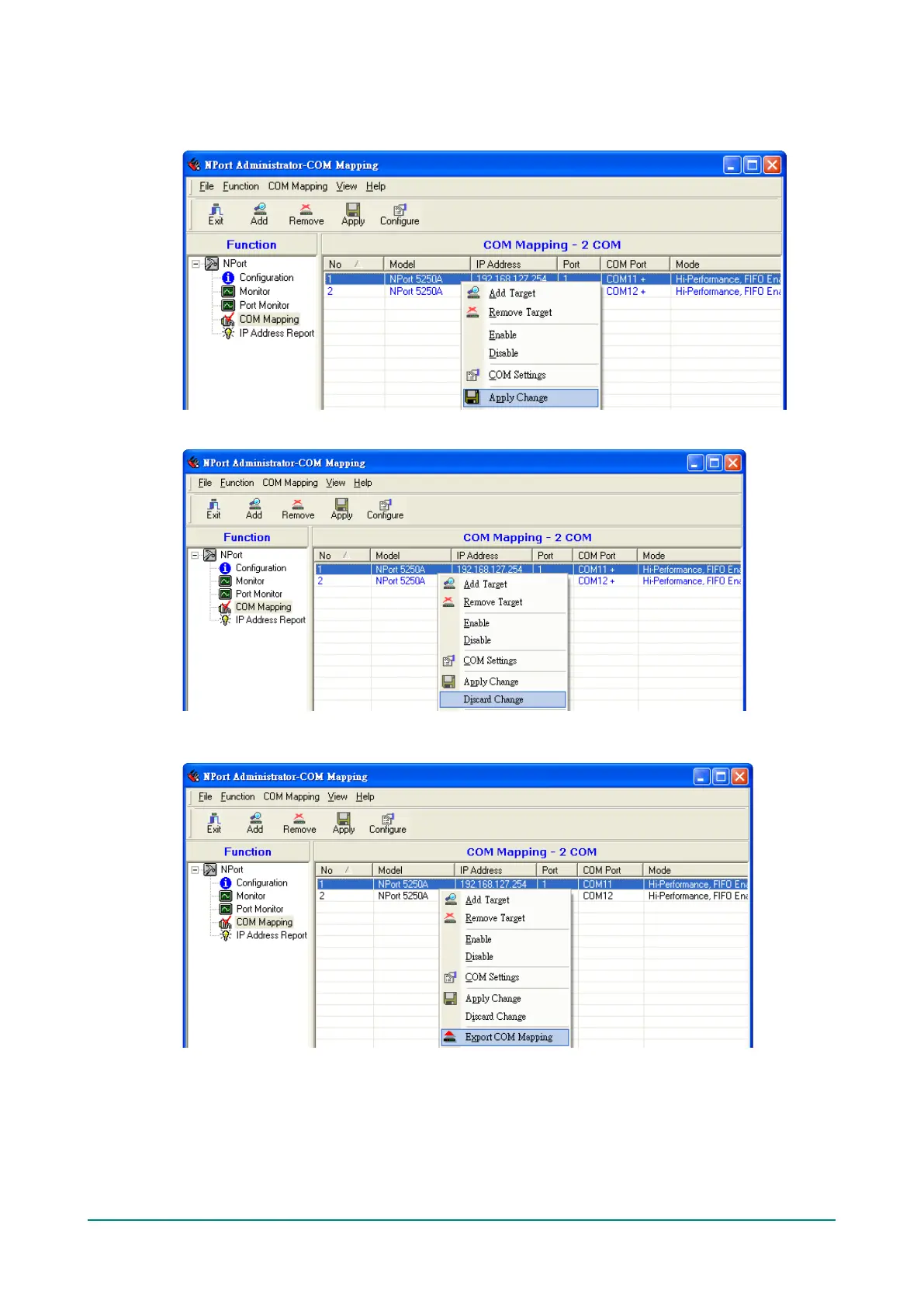

8. After setting the COM Mapping, remember to select Apply Change to save the information in the host
system registry. The host computer will not have the ability to use the COM port until after Apply
Change is selected.
9. Select Discard Change to tell Administrator NOT to save the COM Mapping information to the host.
10. To save the configuration to a text file, select Export COM Mapping. You will then be able to import
this configuration file to another host and use the same COM Mapping settings in the other host.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
