Moxa Technologies NPort 5210A User Manual

NPort 5000 Series User Manual
145

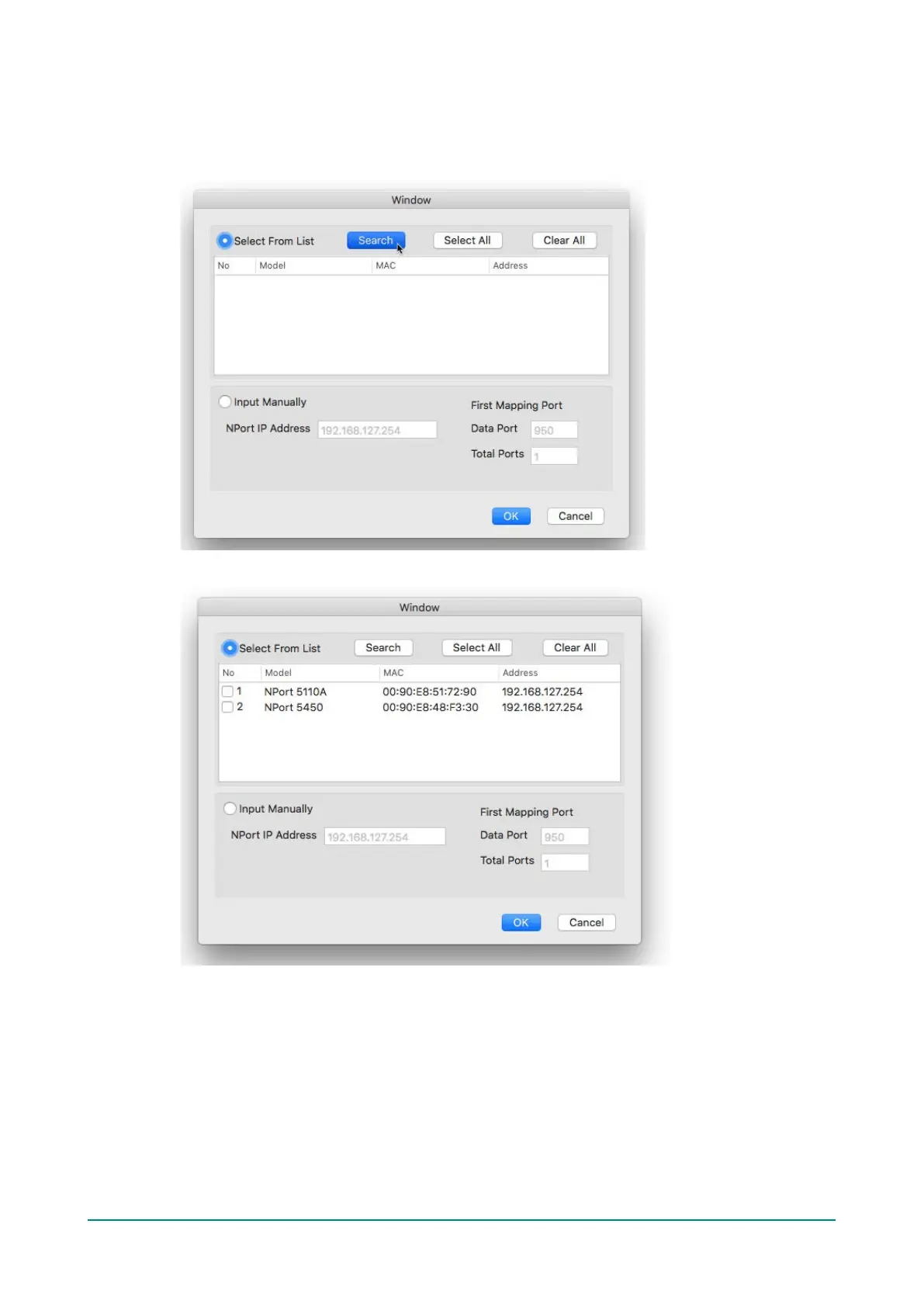

4. Click Search to find the NPort that is already setup in the Hardware Setup procedure. The Search
function is broadcast search to locate all the NPort units that are connected to the same LAN as your
Mac. Since the Broadcast Search function searches by MAC address and not IP address, all NPort units
connected to the LAN will be located, regardless of whether or not they are part of the same subnet as
the host. Or, you can input the IP address manually to find the specific NPort.
5. Once search is completed, all the NPort found would appear on the list.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
