NPort 5000 Series User Manual
146

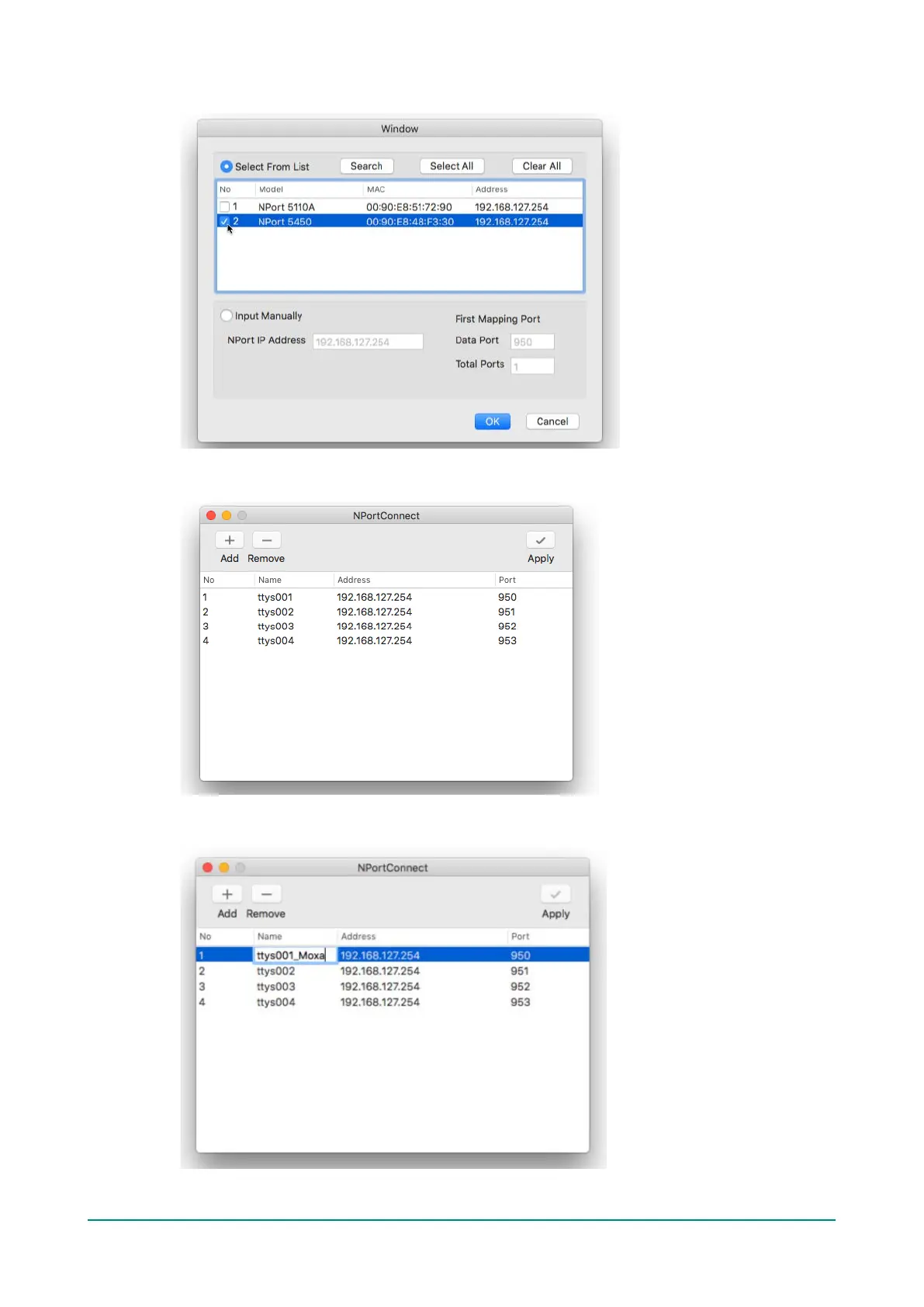

6. Select the model types that are for the tty port mapping and click OK.
7. NPortConnect would auto assign the tty name and corresponding port number to the IP address of the
selected NPort.
8. The tty name and port number are editable. Please note that these changed values are only for
mapping configuration and would not change the values in the NPort settings.

Moxa Technologies NPort 5210A Specifications

General

Baud rate	230.4 Kbit/s
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Certification	CE, FCC
RS-232 signals	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Flow control support	Yes
Serial interface type	RS-232
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Mean time between failures (MTBF)	134850 h
Product color	Black, Blue
Housing material	Metal
Input voltage	12 - 48 V
Power consumption	325 mA
Storage temperature (T-T)	-40 - 75 °C
Maximum operating altitude	2000 m
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Supported network protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP

Weight and Dimensions

Weight	340 g
Dimensions (WxDxH)	90 x 100.4 x 22 mm
