V2406A Hardware Hardware Connection Description

3-8

DI/DO

The V2406A comes with a 6-ch digital input and a 2-ch digital output that connect through a terminal block

connector. The pin assignments and wiring methods are shown below.

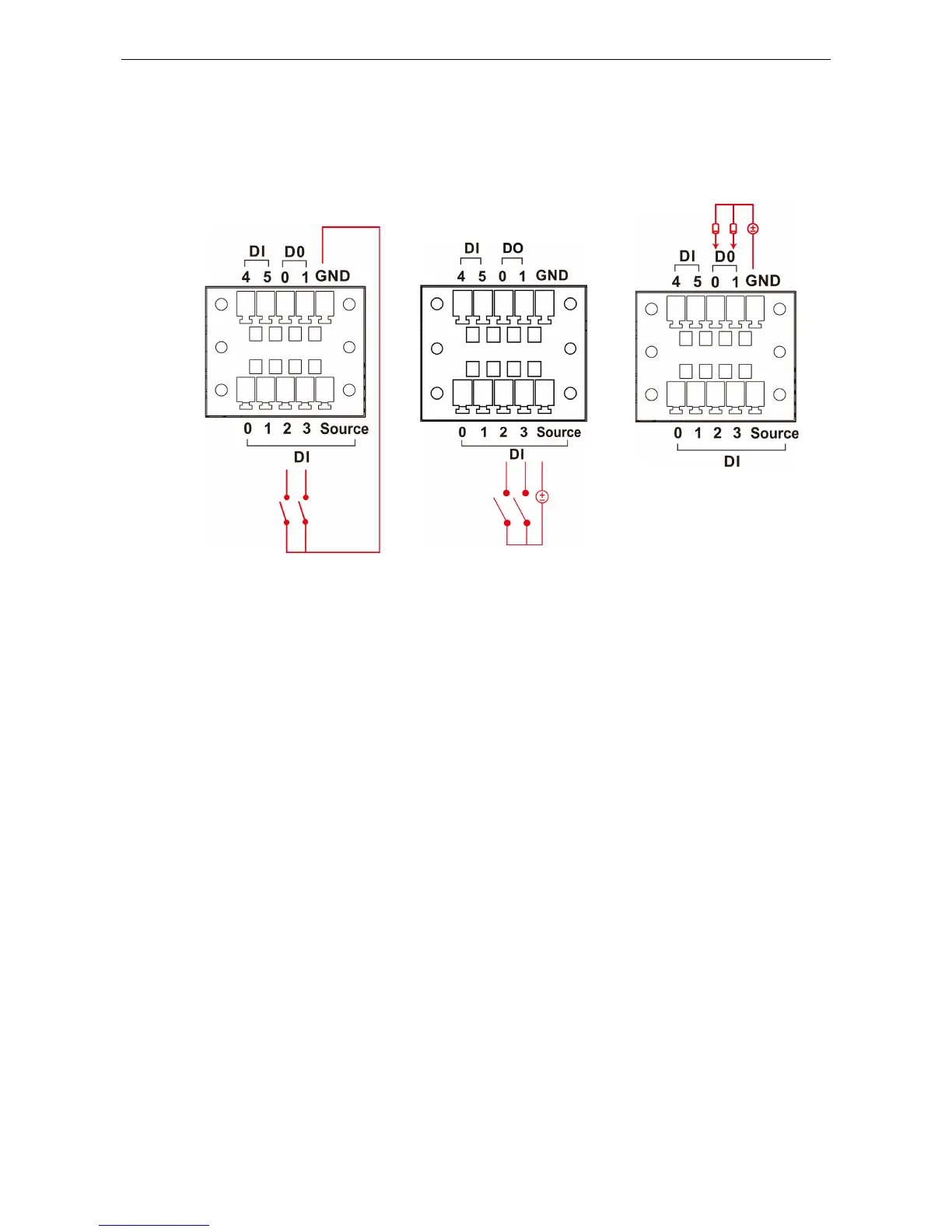

DI Wiring: Dry Contact DI Wiring: Wet Contact DO Wiring: Dry Contact
