4-44. SELECTING THE CORRECT PART FOR YOUR
MOYNO 2000 PROGRESSING CAVITY PUMP

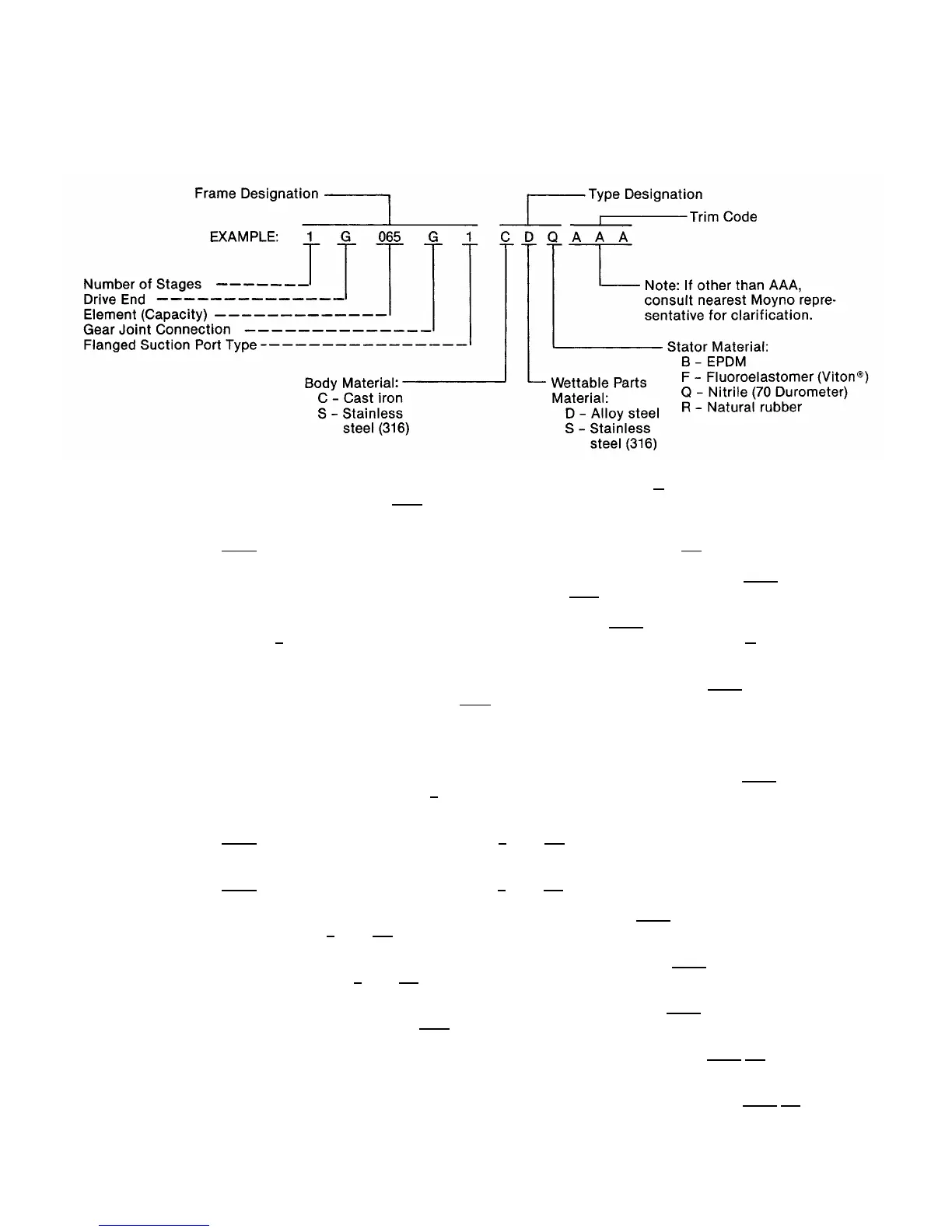

PUMP MODEL DESIGNATION
Table 4-1 Basic Drive End Parts: Select Reference Number part by Drive End (1G
065G1 CDQ AAA) and
(Page 15) Type Designation (1G065G1 CDQ
AAA) where listed.
Table 4-2 Wettable Castings (CD & CS): Select Reference Number part by Drive End and Element
(Page 16) (1G065
G1 CDQ AAA) if Type Designation begins with CD or CS (1G065G1 CDQ AAA).
Table 4.3 Wettable Castings (SS): Select Reference Number part by Drive End and Element (1G065G1
(Page 17) SSQ AAA) if Type Designation begins with SS (1G065G1 SSQ
AAA).
Table 4-4 Stators: Select Stator part number by Drive End and Element (1G065G1 CDQ AAA), and number
(Page 17) of stages (1
G065G1 CDQ AAA). The last letter of the Type Designation (1G065G1 CDQ AAA) must be
added as the sixth digit of the part number.
Table 4-5 Stator Gaskets: Select Stator Gasket part number by Drive End and Element (1G065
G1 CDQ
(Page 18) AAA), and Type Designation (1G065G1 CDQ
AAA).
Table 4-6 Stator Clamp Rings: Select Stator Clamp Ring part number by Drive End and Element (1G065G1
(Page 18) CDQ AAA), and number of stages (1G065G1 CDQ AAA).
Table 4-7 Connecting Rods: Select Connecting Rod part number by Drive End and Element (1G065
G1
(Page 19) CDQ AAA), and Type Designation (1
G065G1 CDQ AAA).
Table 4-8 Discharge Flanges (CD): Select Discharge Flange part number by Drive End and Element
(Page 19) (1G065
G1 CDQ AAA), and number of stages (1G065 CDQ AAA), if Type Designation begins with CD.
Table 4-9 Discharge Flanges (CS & SS): Select Discharge Flange part number by Drive End and Element
(Page 20) (1G065
G1 CSQ AAA), and number of stages (1G065 CSQ AAA), if Type Designation begins with CS or SS.
Table 4-10 Rotors (CD): Select Rotor part number by Drive End and Element (1G065G1 CDQ AAA), and
(Page 20) number of stages (1
G065 CDQ AAA), if Type Designation begins with CD.
Table 4-11 Rotors (CS & SS): Select Rotor part number by Drive End and Element (1G065G1 CSQ AAA),
(Page 22) and number of stages (1
G065 CSQ AAA), if Type Designation begins with CS or SS.
Table 4-12 Head Rings: Select Head Ring part number by Drive End and Element (1G065G1 CDQ AAA),
(Page 22) and Type Designation (1G065G1 CDQ
AAA).
Table 4-13 Shaft Sleeve (CD): Select Reference Number part by Drive End and Element (1G065 CDQ AAA)
(Page 21) if Type Designation begins with CD (Shaft Sleeve Option only).
Table 4-14 Shaft Sleeve (CS & SS): Select Reference Number part by Drive End and Element (1G065
CSQ
(Page 21) AAA) if Type Designation begins with CS or SS (Shaft Sleeve Option only).
