4-57. STANDARD HARDWARE
Drive End
Ref.
No.
Description
Oty.
E F G H J K
A Hex Head Screw 2 ¼-20 x 2” Lg ¼-20 x 2” Lg
5
/
16
-18 x 2¼” Lg
3
/
8
-16 x 2 ¾” Lg
3
/
8
-16 x 2¼” Lg ½-13 x 3¼” Lg
Note: All screws are 18-8 stainless steel.

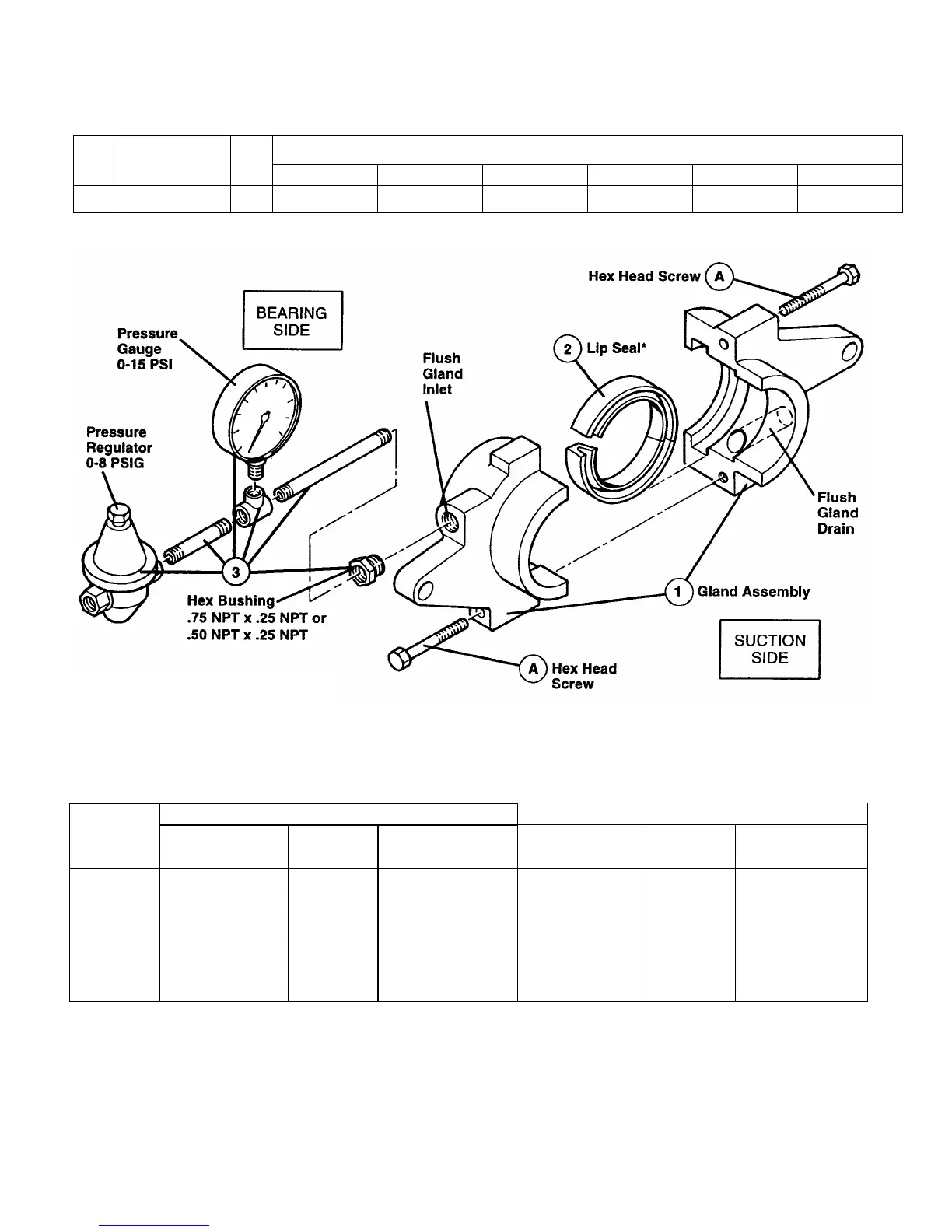

Figure 4-13. Flush Gland
4-58. PARTS LIST
With Shaft Sleeve Without Shaft Sleeve
Drive End
Size
Gland Assembly
(Ref. No. 1)
Lip Seal
(Ref. No.2)
Flush Assembly
(Ref. No.3)
Gland Assembly
(Ref. No. 1)
Lip Seal
(Ref. No.2)
Flush Assembly
(Ref. No.3)
E
F
G
H
J
K
PE044D
PF044D
PG044D
PH044D
PJ044D
PK044D
PF0591
PG0591
PH0591
PH0592
PK0591
PK0592
PFA001
(all sizes)
PE043D
PF043D
PG043D
PH043D
PJ043D
PK043D
PE0591
PF0591
PG0591
PH0591
PJ0591
PK0591
PFA001
(all sizes)
*Note:
Lip seal is cutaway
for illustrative purposes.
