Page 25

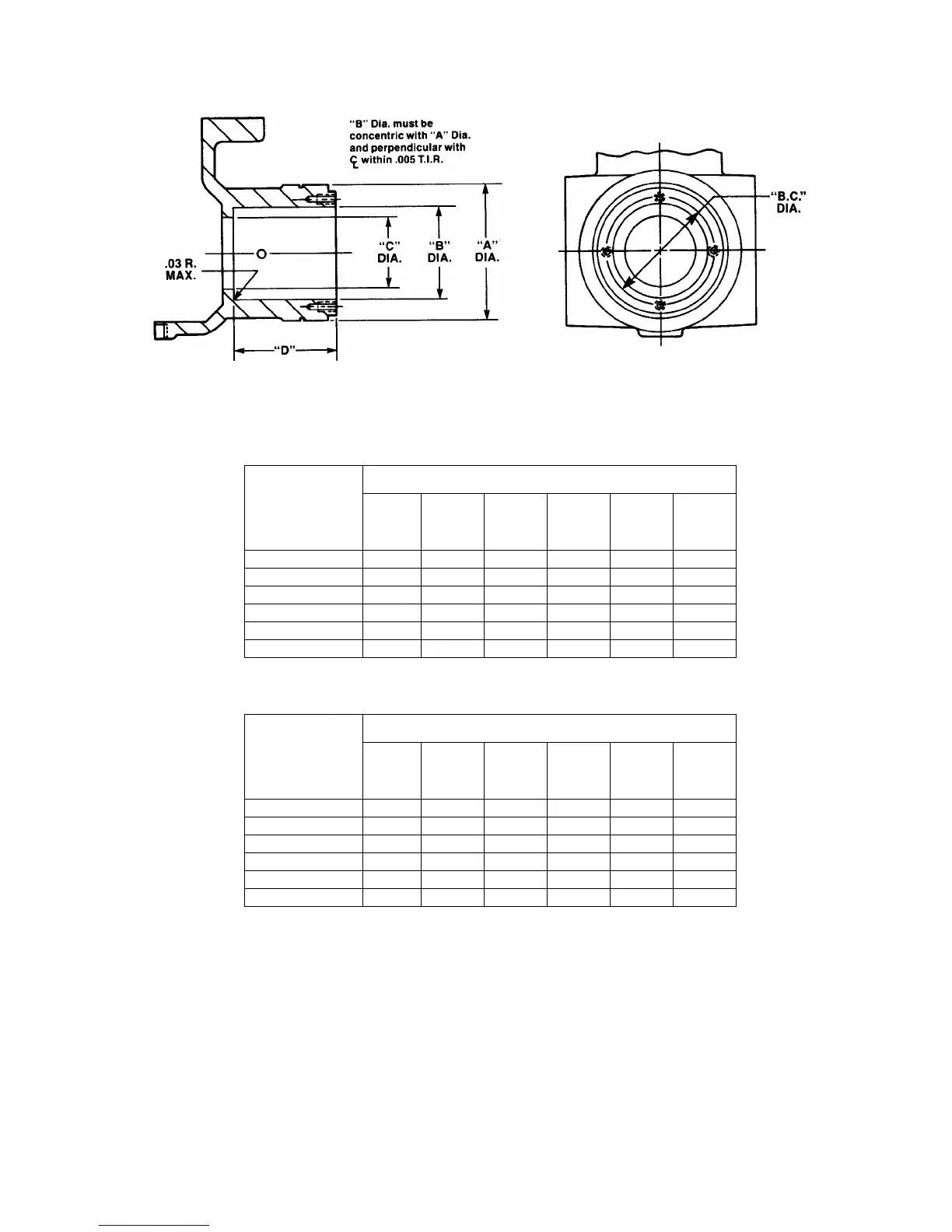

Figure 4-11. Stuffing Box.
Dimensions with shaft sleeve (inches)
Drive
End
Size
A
+ .000
- .003
B
+.005
(1)
- .00
C
± .03
(1) D
+ .05
- .00
B.C. Shaft
O.D.
E 5.500 3.750 2.81 4.19 4.37 2.750
F 6.589 4.250 3.31 4.44 5.00 3.250
G 7.498 5.000 3.81 4.94 5.87 3.750
H 8.589 5.500 4.31 4.94 6.50 4.250
J 9.500 6.750 5.31 5.75 7.75 5.250
K 11.000 7.750 6.06 6.81 9.00 6.000
(1) If you already have a suction housing machined for use without a shaft sleeve,
these dimensions must be reworked in order to install a shaft sleeve in your pump.
Dimensions without shaft sleeve (inches)
Drive
End
Size
A
+ .000
- .003
B
+.005
(1)
- .00
C
± .03
(1) D
+ .05
- .00
B.C. Shaft
O.D.
E 5.500 3.250 2.31 4.19 4.37 2.250
F 6.589 3.750 2.81 4.44 5.00 2.750
G 7.498 4.500 3.31 4.94 5.87 3.250
H 8.589 5.000 3.86 4.94 6.50 3.750
J 9.500 6.000 4.56 5.75 7.75 4.500
K 11.000 7.000 5.31 6.81 9.00 5.250
