2. Description

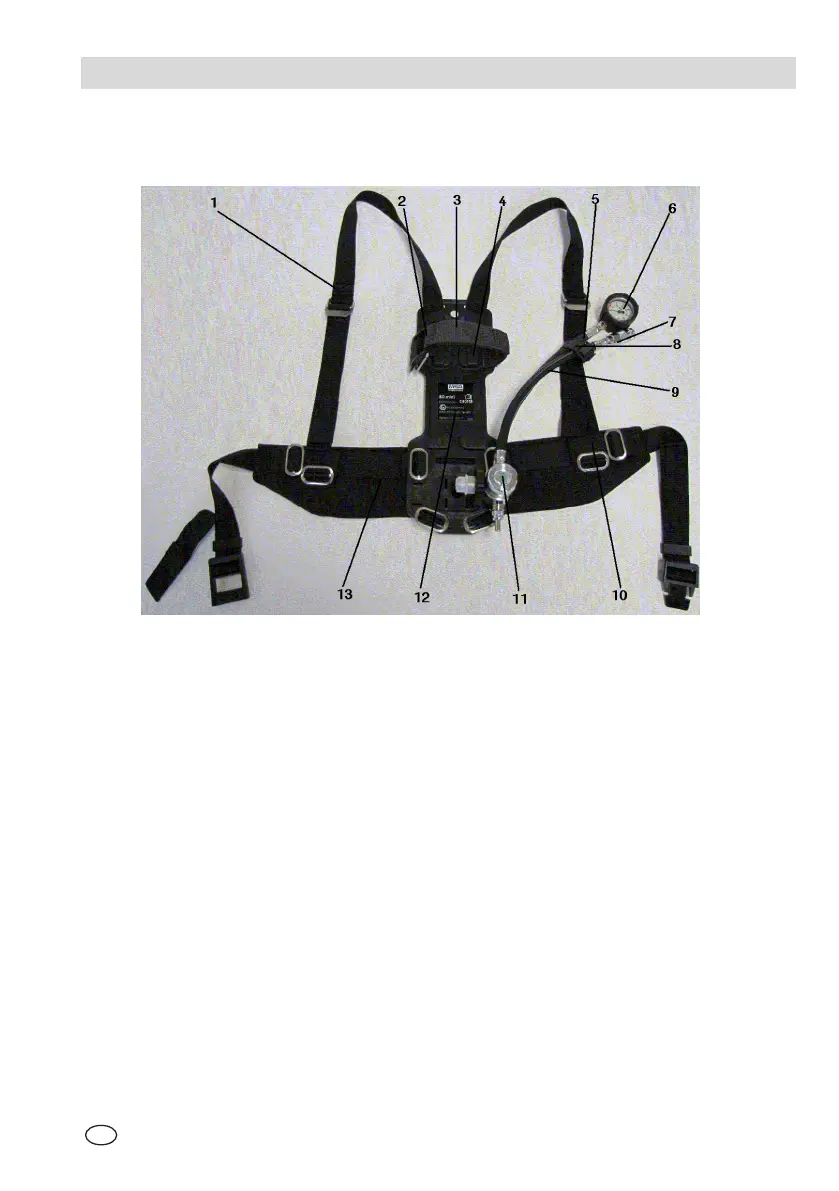

Fig. 1 Compressed air breathing apparatus BDmini
1 Shoulder stra
p
8 Hose retainer
2
Tension clam
p
of the c
y
linder stra
p
9 Medium
p
ressure line
3
C
y
linder retainin
g
stra
p
10 Belt loo
p
4 C
y
linder su
pp
ort 11 Pressure reducer
5
Pressure
g
au
g
e line 1
2
Carr
y
in
g
p
late
6 Pressure
g
au
g
e 1
3
Hi
p
belt
7
Medium
p
ressure cou
p
lin
g
2.1. Basic unit BD mini
The carrying frame consists of a plastic plate with hip and shoulder straps. The
arrangement of the carrying frame allows many individual carrying methods.
In the lower section of the carrying framework, there are slots for the variable
fitting of the pressure reducer, which are matched to the method of transportation.
The upper part of the plate has an integrated cylinder support.
The compressed air breathing apparatus can accommodate compressed air
cylinders with a diameter between 90 mm and about 160 mm. Only one cylinder
can be carried.
The cylinder strap is freely adjustable. After inserting the compressed air cylinder,
it is tied down tightly and secured with the tension clamp.
The carrying belts and the hip belt are adjustable in length.
