• Enter the appropriate change and click the Write button.

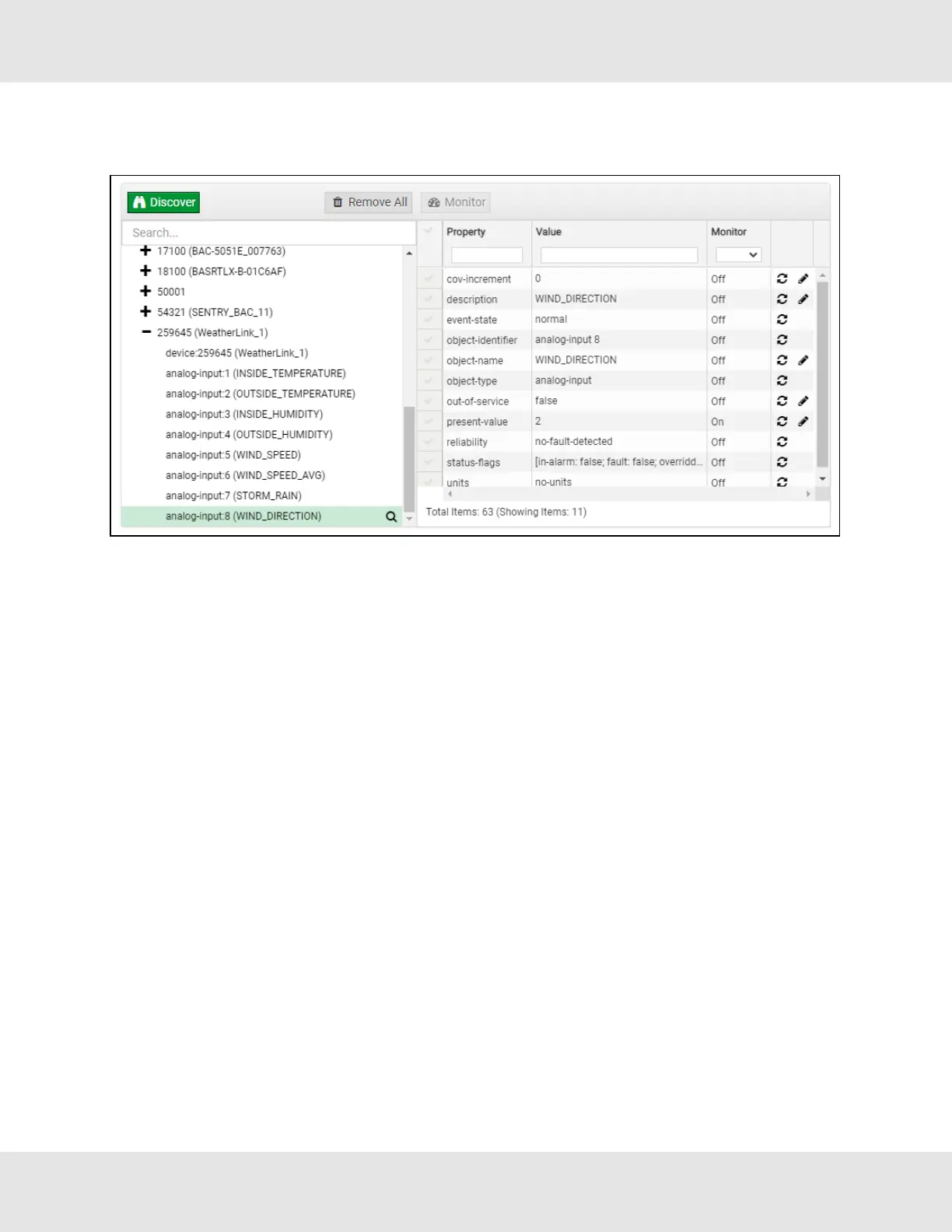

The window will close. When the BACnet Explorer page appears, the present value will be changed as specified.

EZ Gateway Modbus to BACnet Start-up Guide 35
