4 Power up the ProtoNode

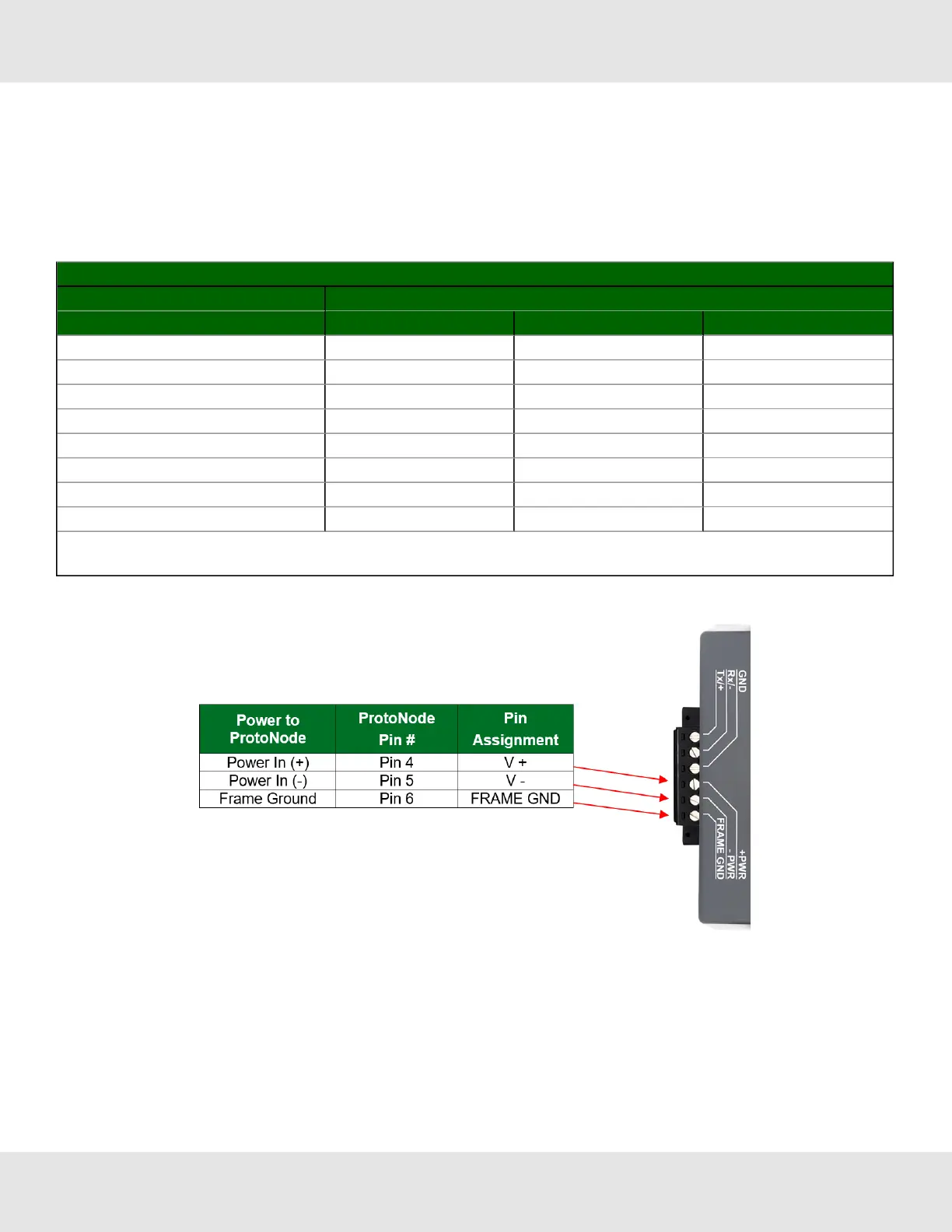

Apply power to ProtoNode as show below. Ensure that the power supply used complies with the specifications provided in
Section 10.7 Specifications.
• ProtoNode accepts either 9-30VDC or 12-24 VAC on pins 4 and 5.
• Frame GND should be connected.
Power Requirement for ProtoNode External Gateway
Current Draw Type
ProtoNode Family 12VDC/VAC 24VDC/VAC 30VDC
FPC – N34, N38 (Typical) 170mA 110mA 90mA
FPC – N34, N38 (Maximum) 220mA 140mA 115mA
FPC – N35, N39 (Typical) 210mA 110mA 90mA
FPC – N35, N39 (Maximum) 260mA 140mA 115mA
FPC – N40 (Typical) 200mA 110mA 90mA
FPC – N40 (Maximum) 250mA 140mA 115mA
FPC – N42 Slave (Maximum) 330mA 170mA 135mA
FPC – N42 Master (Maximum) 830mA 420mA 335mA
NOTE: These values are ‘nominal’ and a safety margin should be added to the power supply of the host system.
A safety margin of 25% is recommended.
14 ProtoNode Start-up Guide
