Baud Rate Dip Switch Selection
Baud B0 B1 B2 B3
9600 On On On Off
19200 Off Off Off On
38400* On On Off On
57600 Off Off On On
76800 On Off On On
* Factory default setting = 38400

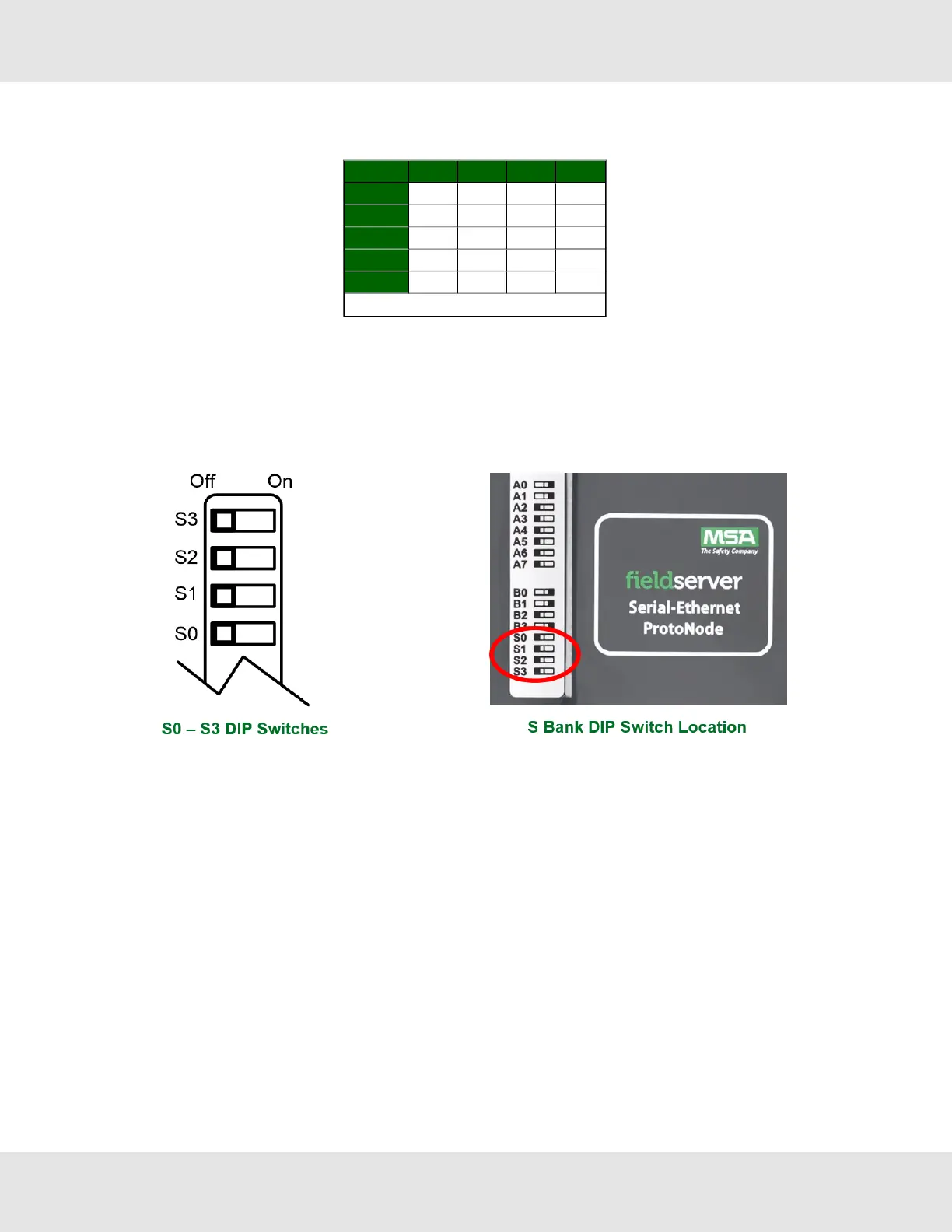

2.4.3 Select and Load Configuration Files
• The S bank of DIP switches, S0 - S3 is used to select and load a configuration file from a group of pretested/preloaded
configuration files that the OEM has programmed for their end users.
• End customers will need to go back to the OEM of the device that they are installing to get the DIP settings for the
ProtoNode. The ProtoNode part number will need to be provided to identify the unit.
8 ProtoNode Start-up Guide
